Description Of The Machine - Miele PWM 509 Kurzgebrauchsanweisung

en - Description of the machine

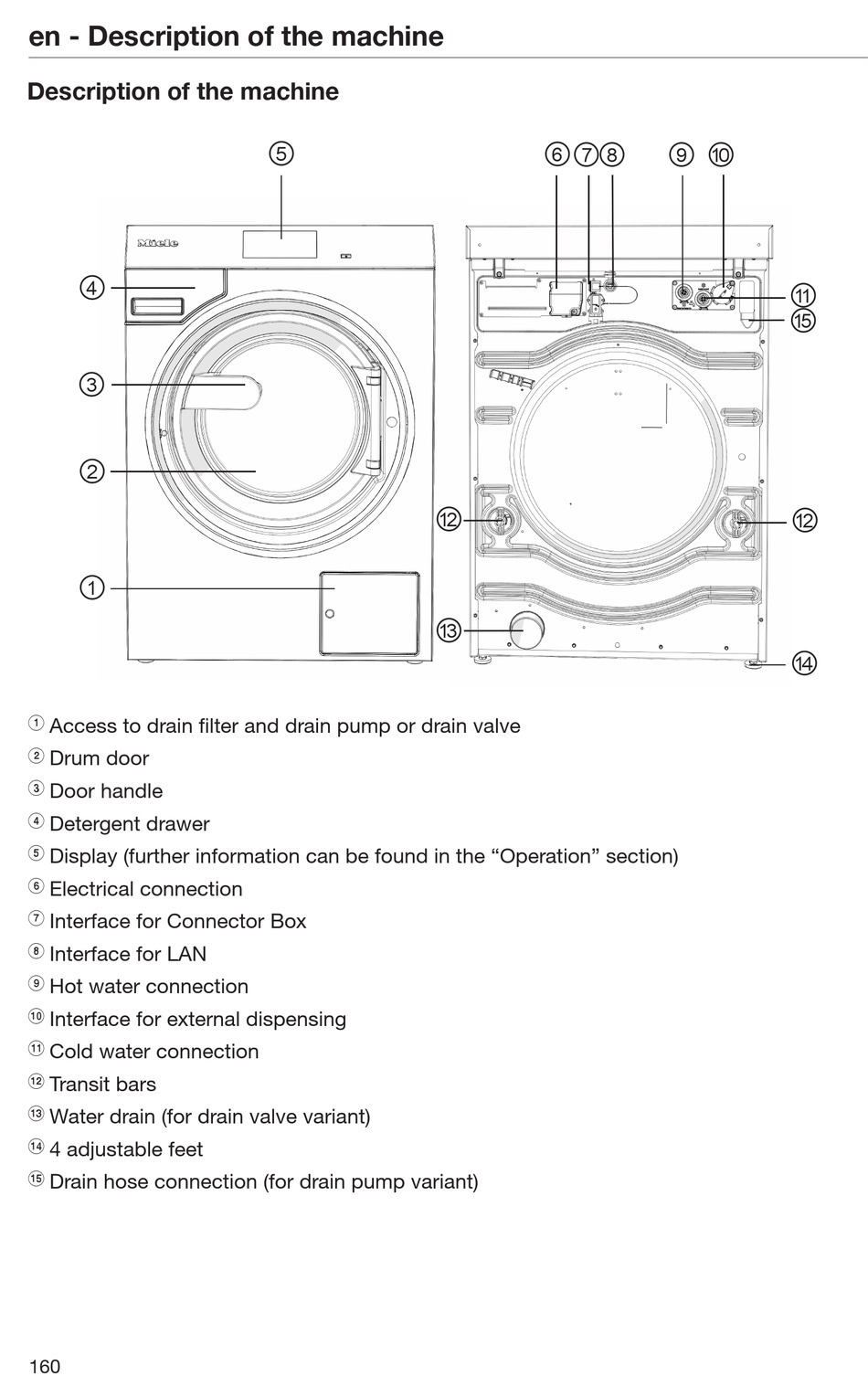

Description of the machine

④
③
②
①
a
Access to drain filter and drain pump or drain valve
b
Drum door
c
Door handle
d
Detergent drawer
e
Display (further information can be found in the "Operation" section)
f
Electrical connection
g
Interface for Connector Box
h
Interface for LAN
i
Hot water connection
j
Interface for external dispensing
k
Cold water connection
l
Transit bars
m
Water drain (for drain valve variant)
n
4 adjustable feet
o
Drain hose connection (for drain pump variant)
