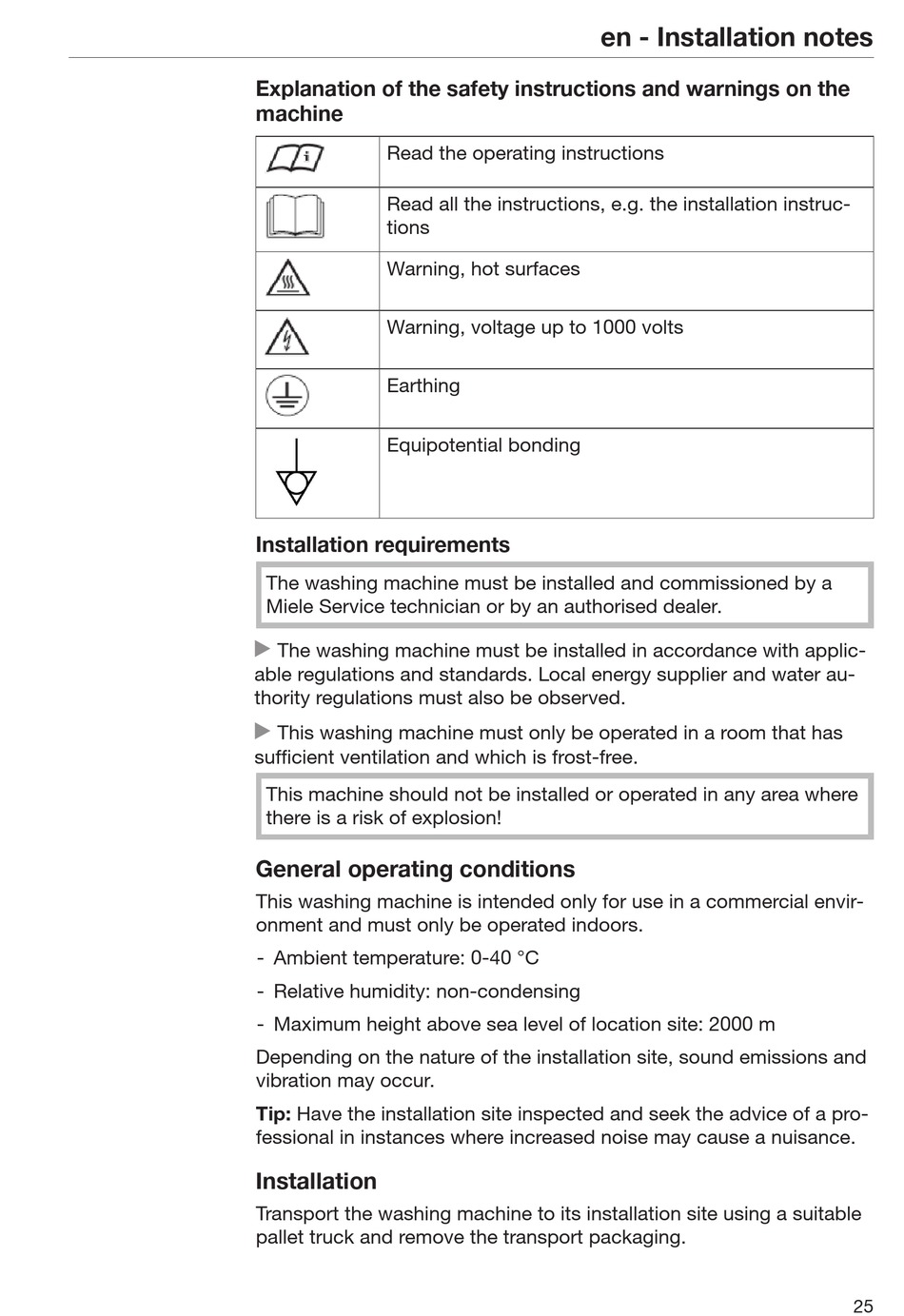

Installation Notes; Explanation Of The Safety Instructions And Warnings On The Machine; Installation Requirements; General Operating Conditions - Miele PWM 920 EL/RH Installationsplan

Explanation of the safety instructions and warnings on the
machine
Read the operating instructions
Read all the instructions, e.g. the installation instruc-
tions
Warning, hot surfaces
Warning, voltage up to 1000 volts
Earthing
Equipotential bonding

Installation requirements

The washing machine must be installed and commissioned by a
Miele Service technician or by an authorised dealer.

The washing machine must be installed in accordance with applic-
able regulations and standards. Local energy supplier and water au-
thority regulations must also be observed.

This washing machine must only be operated in a room that has
sufficient ventilation and which is frost-free.
This machine should not be installed or operated in any area where
there is a risk of explosion!

General operating conditions

This washing machine is intended only for use in a commercial envir-
onment and must only be operated indoors.
- Ambient temperature: 0-40 °C
- Relative humidity: non-condensing
- Maximum height above sea level of location site: 2000 m
Depending on the nature of the installation site, sound emissions and
vibration may occur.
Tip: Have the installation site inspected and seek the advice of a pro-
fessional in instances where increased noise may cause a nuisance.

Installation

Transport the washing machine to its installation site using a suitable
pallet truck and remove the transport packaging.
en - Installation notes
25
