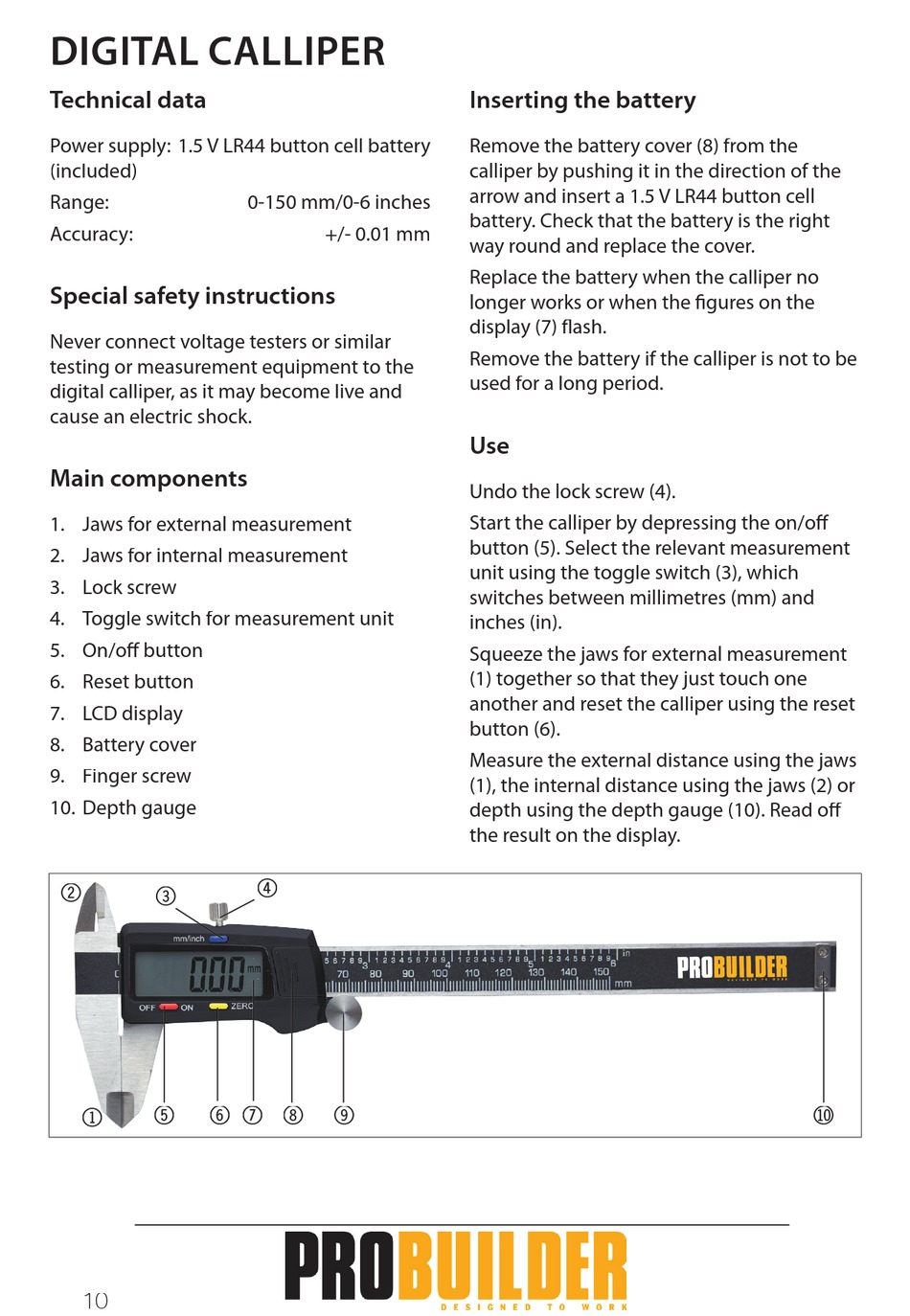

DIGITAL CALLIPER
Technical data
Power supply: 1.5 V LR44 button cell battery
(included)
Range:
Accuracy:
Special safety instructions
Never connect voltage testers or similar
testing or measurement equipment to the
digital calliper, as it may become live and
cause an electric shock.
Main components
1. Jaws for external measurement
2. Jaws for internal measurement
3. Lock screw
4. Toggle switch for measurement unit
5. On/off button
6. Reset button
7. LCD display
8. Battery cover
9. Finger screw
10. Depth gauge
2
3
5
6
1 1
10
0-150 mm/0-6 inches
+/- 0.01 mm
4
7
8
9
Inserting the battery
Remove the battery cover (8) from the
calliper by pushing it in the direction of the
arrow and insert a 1.5 V LR44 button cell
battery. Check that the battery is the right
way round and replace the cover.
Replace the battery when the calliper no
longer works or when the � gures on the
display (7) � ash.
Remove the battery if the calliper is not to be
used for a long period.
Use
Undo the lock screw (4).
Start the calliper by depressing the on/off
button (5). Select the relevant measurement
unit using the toggle switch (3), which
switches between millimetres (mm) and
inches (in).
Squeeze the jaws for external measurement
(1) together so that they just touch one
another and reset the calliper using the reset
button (6).
Measure the external distance using the jaws
(1), the internal distance using the jaws (2) or
depth using the depth gauge (10). Read off
the result on the display.
