ISC RAD Bedienungsanleitung Seite 7

EN341:2011/2D
Descender devices for rescue.
For use with pre-threaded EN1891 Type A 10.5mm to 11mm rope. Min user weight 40kg. Max user weight
104kg. Max 1 descents of 200m.
Rescue only:
• Should only be used by a person competent in its use or following clear emergency protocols.
• The fixing screw must remain in place for use in this category. The descender must be used with the
pre-threaded rope.
• Although this is classed as a single use device, it may be re-used after a minimum wait of 30 minutes
between uses, following an inspection for suitability
Descent:
• Attach the rope connector to a suitable anchor.
• Attach the device to a suitable attachment point on the harness or rescue loop.
• Operate the handle to descend. Fig 13
• ALWAYS hold the tail end of the rope when operating the handle.
Lowering the casualty:
• Attach the device to a suitable anchor.
• Attach the rope connector to a suitable attachment point on the harness or rescue loop.
• Operate the handle to lower. Fig 13
• ALWAYS hold the tail end of the rope when operating the handle.

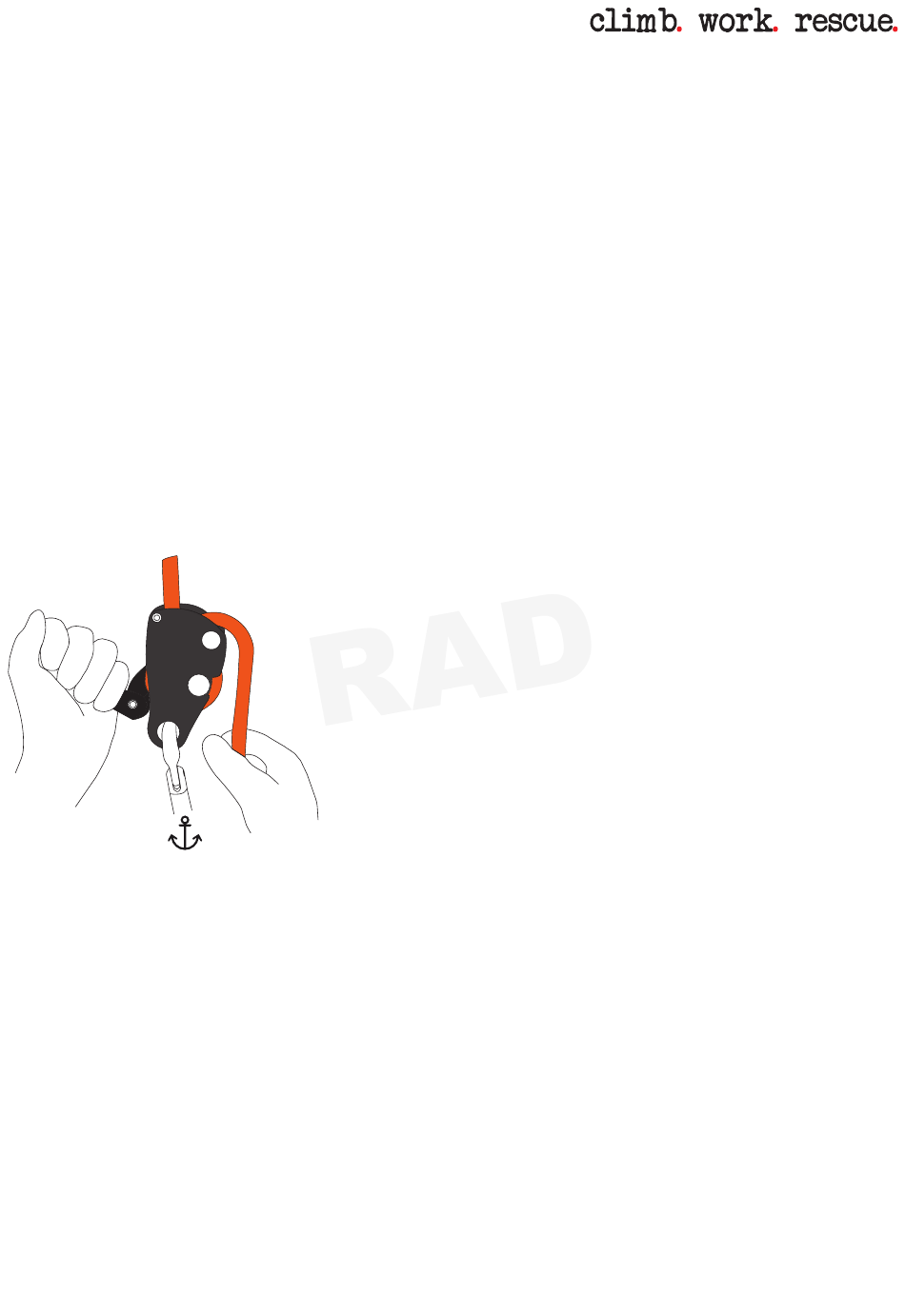

Fig 13
Attachment Point - e.g. Harness
RAD: Issue C - November 2022
7
