ISC RAD Bedienungsanleitung Seite 4

EN15151-1:2012 Type 6
Mountaineering Equipment. Devices for belaying and abseiling without a panic locking element. For use
with 9.9mm to 11.3mm diameter dynamic EN892 rope. Max user weight - one person load.
Belaying:
• The fixing plate screw does not need to be in place for use in this category.
• Open the front swivel plate.

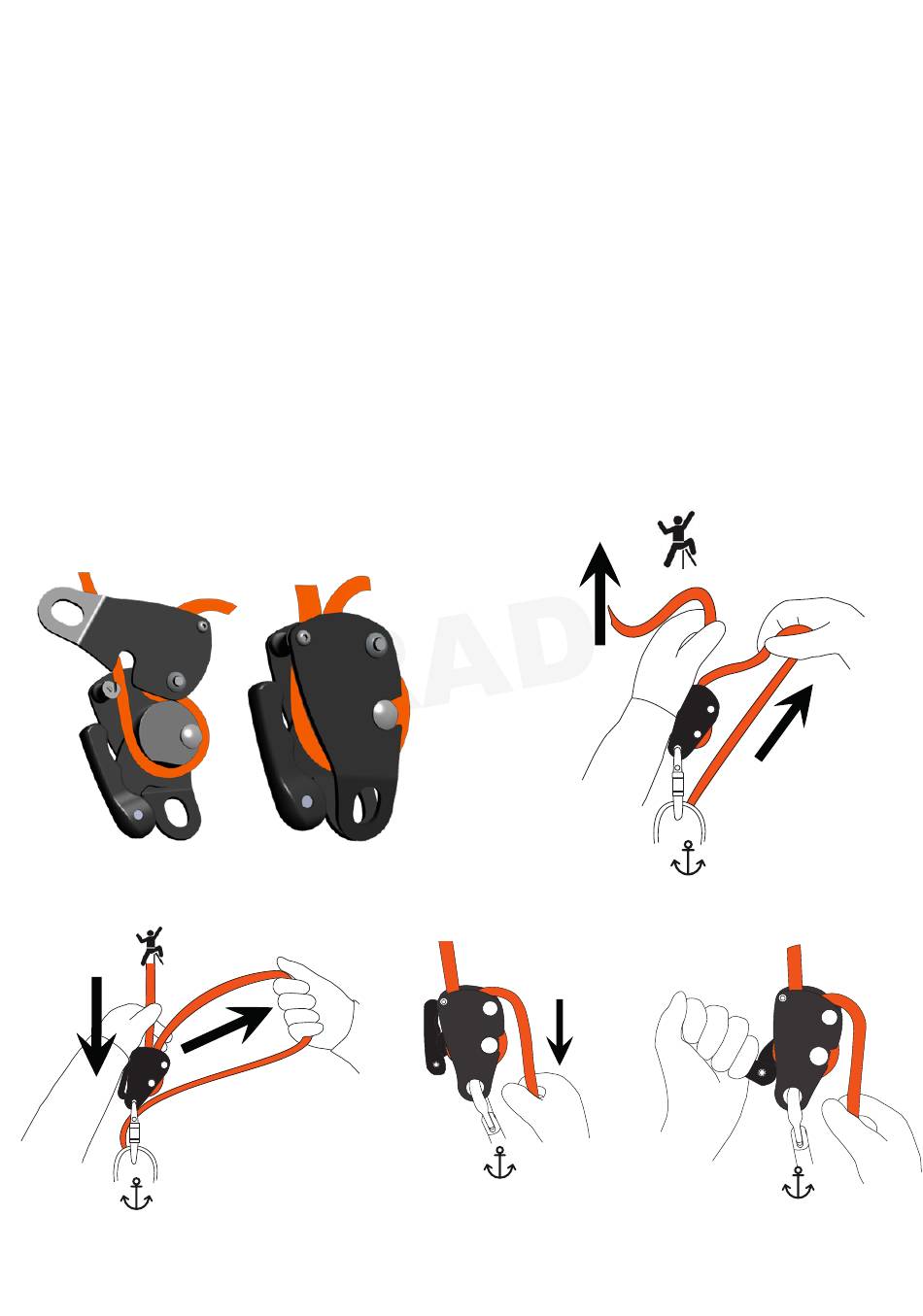

• Insert the rope as shown in Fig 4, also indicated on the device.
• Close the swivel plate and insert a EN362 connector through both holes.
• Attach device to the ventral attachment point of the belayer.
• Ensure the climber is tied in using an appropriate knot.
• To pay out, feed the free rope into the device, while at the same time gently pulling the rope though the
device with the other hand. Keep all movements as smooth as possible. Fig 5
• To take in, pull slack through the device using the controlling hand on the tail end. Fig 6
• The device will lock off automatically when loaded sharply. To lock off manually, pull down on the tail
end. Fig 7
• To lower off, operate the handle to control descent. Fig 8
• ALWAYS hold the tail end of the rope when belaying or lowering.
Fig 4
Fig 6
Attachment Point - e.g. Harness
4
Fig 5
Fig 7
Attachment Point - e.g. Harness
Attachment Point - e.g. Harness
Fig 8
Attachment Point - e.g. Harness
RAD: Issue C - November 2022
