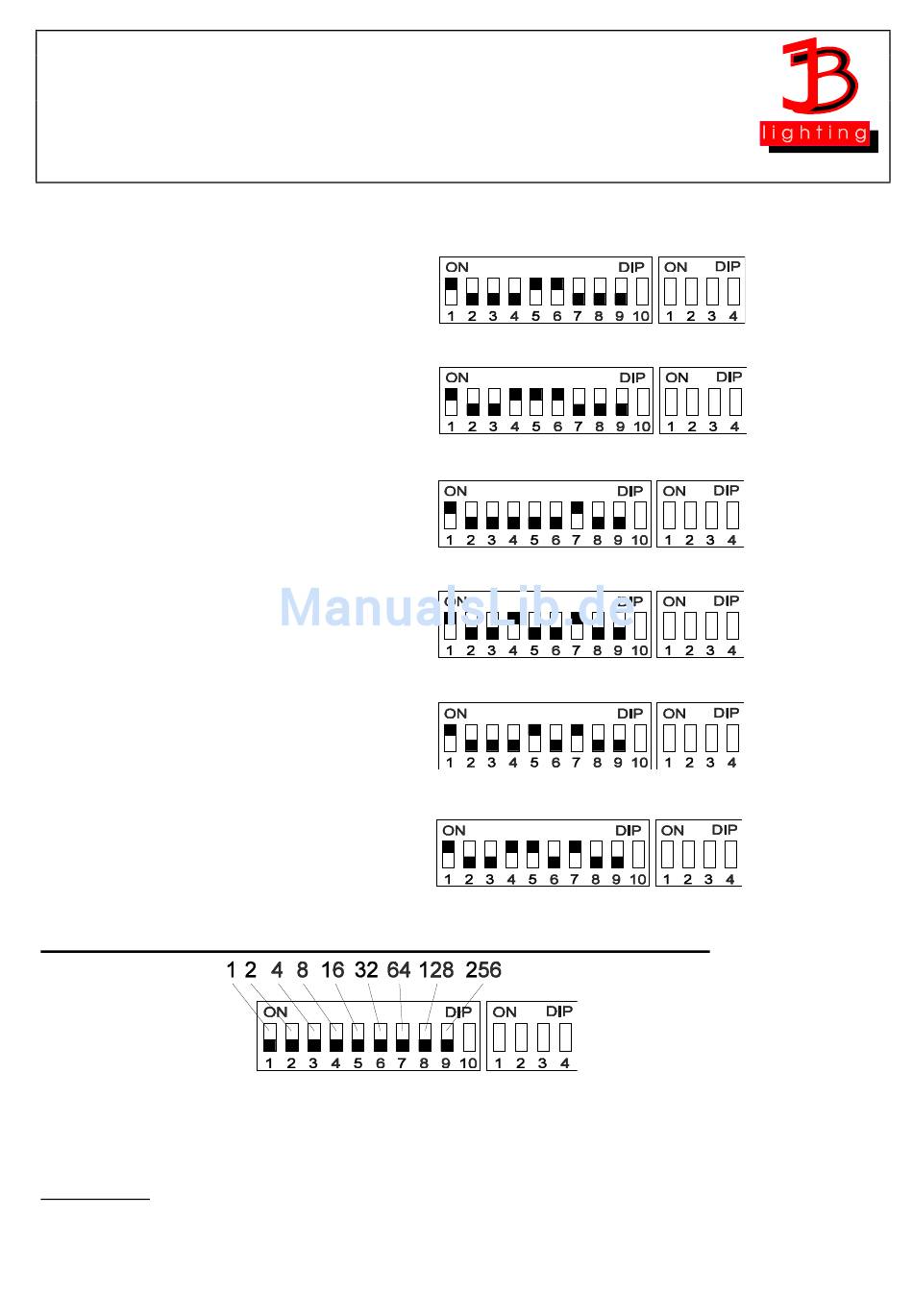

Definition of DIP-switch positions for defined DMX-addresses
Every single DIP-switch responds to the above designated figures. If you would like to adjust a
defined DMX-address, you have to add up the single figures to get it.
For example: DMX-address "45"
32 + 8 + 4 + 1
SW6 SW4 SW3 SW1
on
41
49
57
65
73
81
89
= 45
