Varyscan* 4 1200 HMI
To scoop the optimal functioning of your Varyscan*, you should hang up the spots as high as
possible.
2. Adjustment of Varyscan*
All spots should hang in the same angle, i.e. the imagined angle between perpendicular and
Varyscan* should be the same among all Varyscans*
3. Cabling of Varyscan*
Power supply:
A specialist should attach a plug to the open end of the connecting cable, or have the cable
connected to 230 Volt 50 Hertz.
DMX-cabling:
Connect the output of your DMX-controller with the first Varyscan* (controller DMX-out;
Varyscan* DMX-in) with the aid of a 5pole XLR-cabel. Now establish the connection between
the Varyscans* with the aid of further 5pole XLR-cables. Make sure that in DMX-out of the last
Varyscan* there is a resistor (XLR-plug with a resistance of 100 Ohm between pin 2 and pin 3)
plugged into.

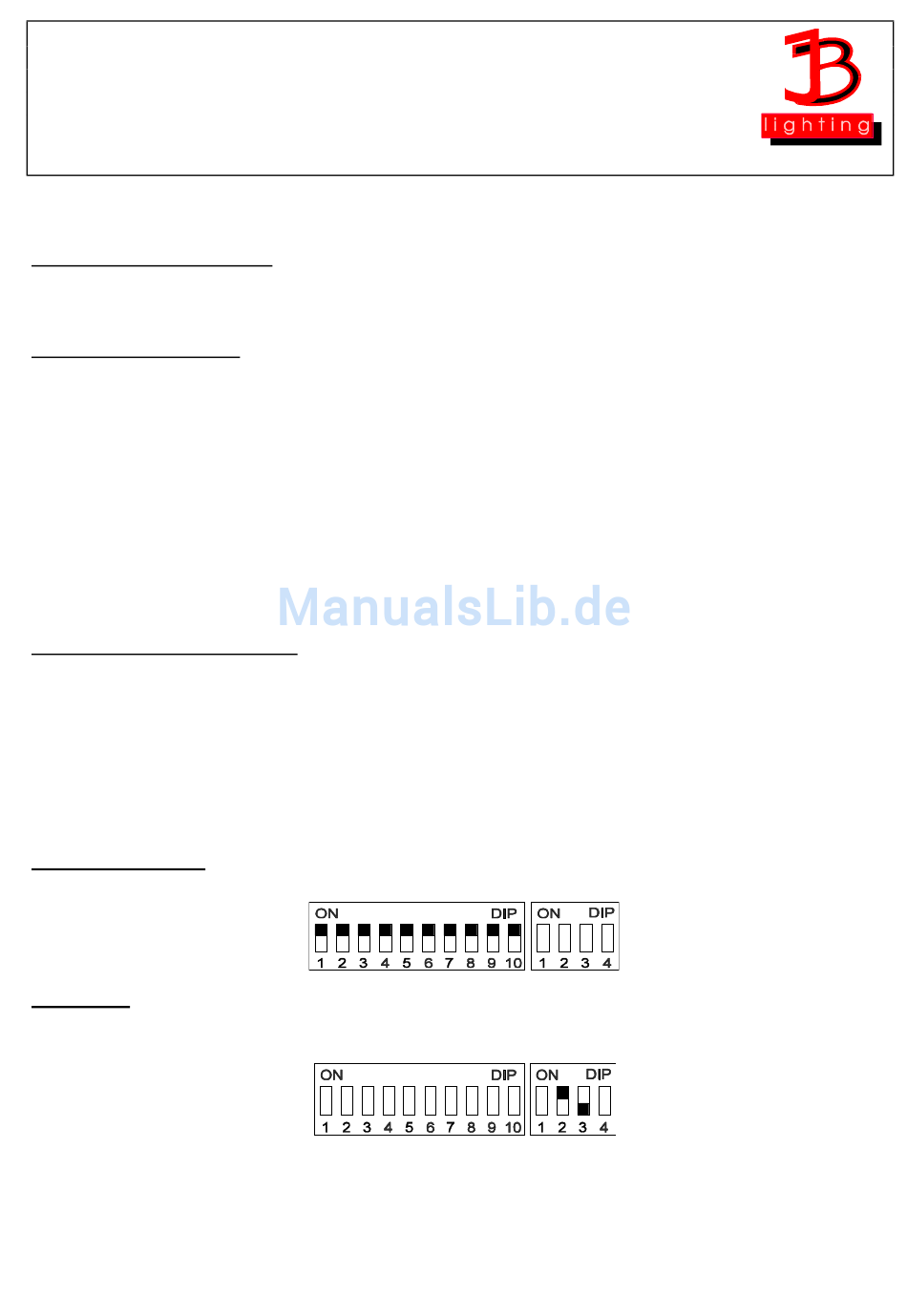

4. Adjustment at DIP-switches
At DIP-switch No.1 and No.2 you have the following possibilities of adjustment:
• initialisation mode
• test mode
• infinitely variable colour changing
• optional channels of Varyscan*
• reset on DMX
• DMX-address
Initialisation Mode
This mode serves for adjustment and basic initialisation of the Varyscan* (carrying-out by
producer).
Test Mode
To see the variety of functions of your Varyscan* easily, start the test mode by turning switch 3
off and switch 2 on at DIP-switch No.2. Now plug in your scanner and you will largely see it's
functions.
Adjustments at DIP-Switch No.2
Before adjusting DMX-addresses, you have to choose a certain drive mode and then make the
right choice of addresses.
At DIP-switch No.2 you find 4 switches for choosing the following functions.
