Varyscan* 4 1200 HMI

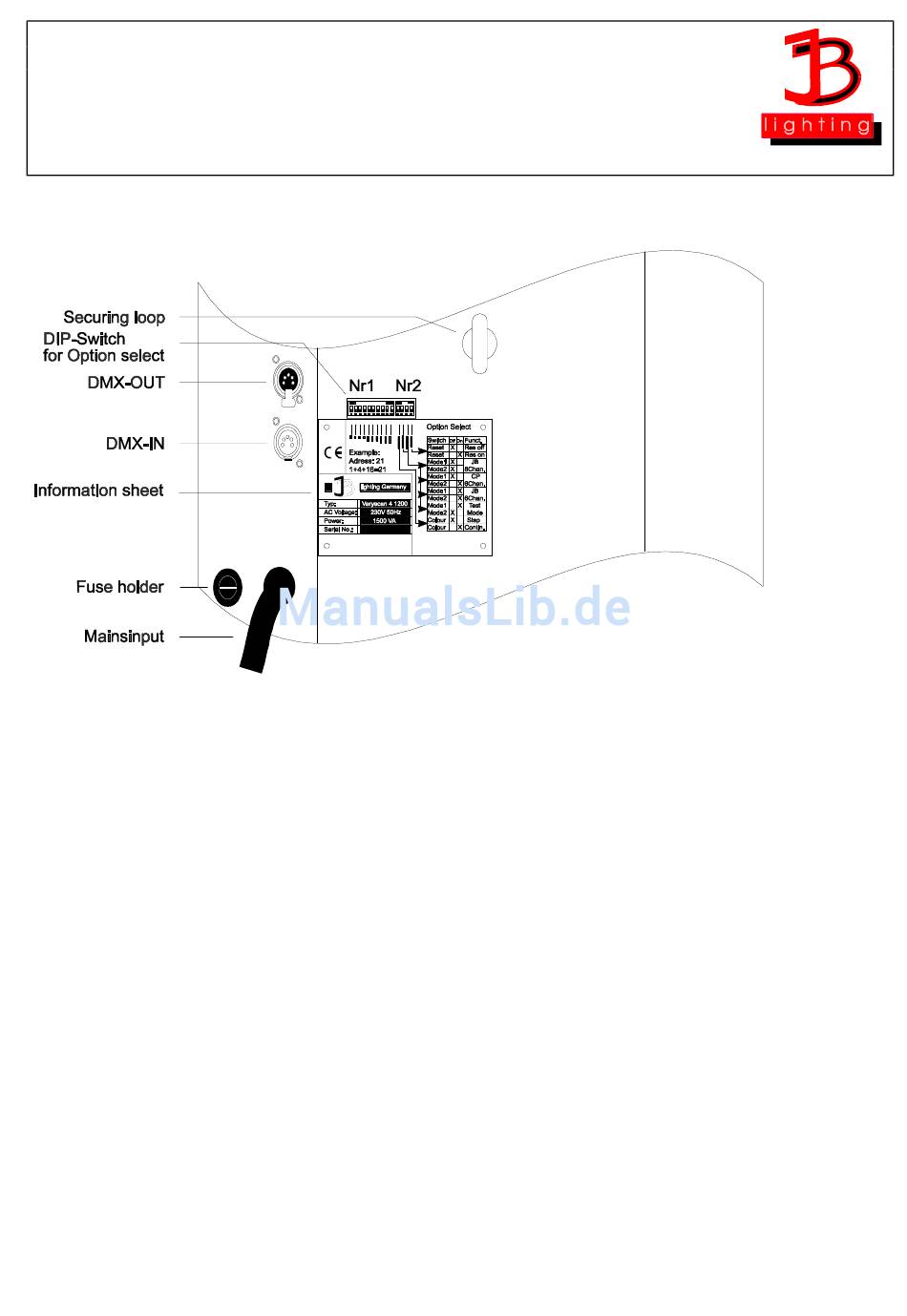

Back view and position of operating sections
Occupation of DMX-sockets
DMX-in
Pin No. signal
1 Ground
2 DMX -
3 DMX +
4 frei
5 +5V

Unpacking of Varyscan* Equipment

Colour of wire
black
white
red
green/black
DMX-out
Pin No. Signal
1 Ground
2 DMX -
3 DMX +
4 not connected
5 not connected
42
Colour of wire
black
white
red
