Varyscan* 4 1200 HMI

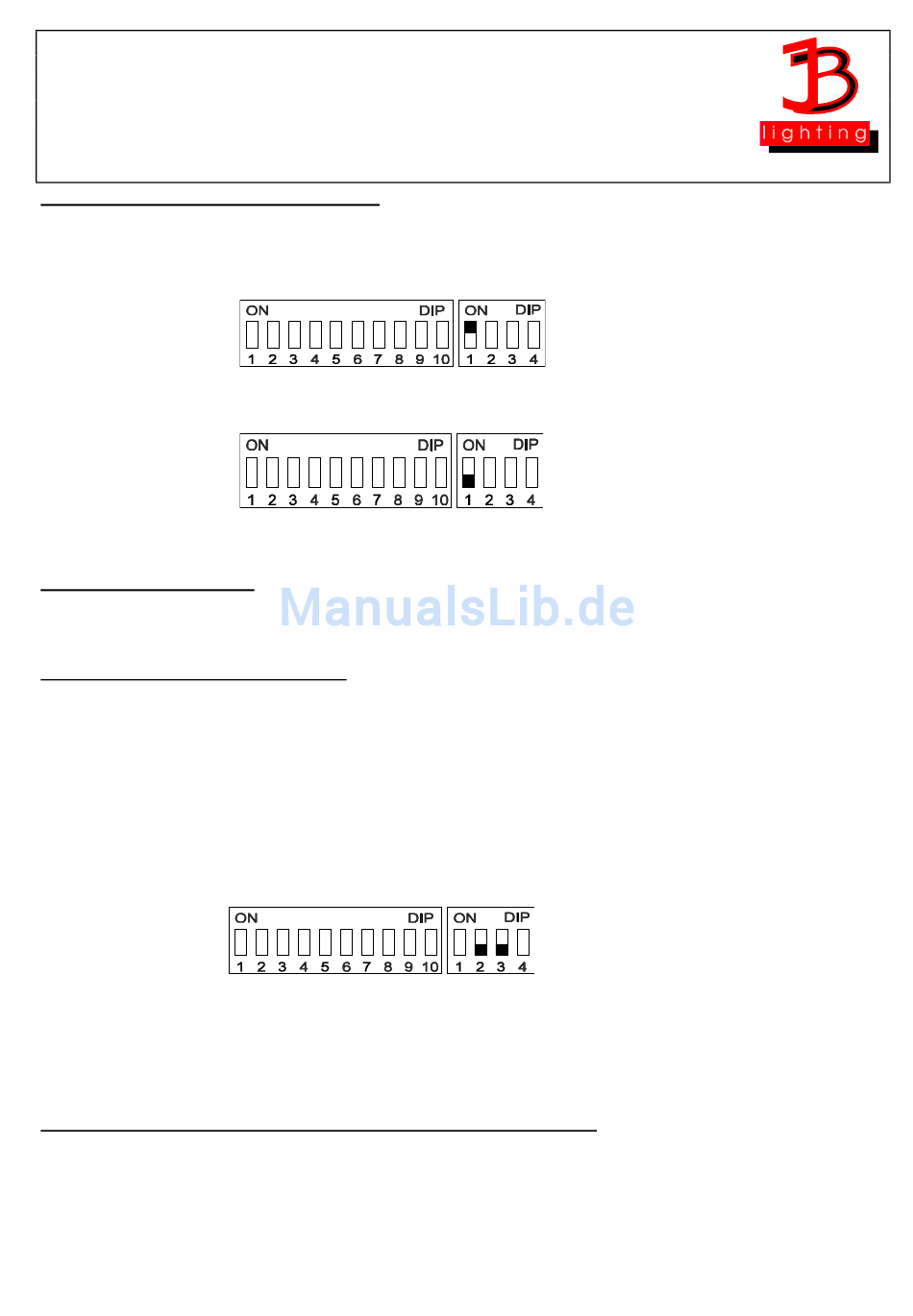

Infinitely Variable Colour Changing: DIP-switch No.2 switch 1
i.e. the moment this function is turned on, every DMX-factor between 0 and 128 corresponds to
an adjustment of the colour wheel. You can produce not only half colours but 1/3- 2/3 colours or
1/4- 3/4 colours etc. To choose this function, turn switch 1 at DIP-switch No.2 on.
Is switch 1 on position off, you get only full colours, respectively half colours.
Optional Drive Modes: DIP-switch No.2 switch 2 and 3
You have 3 DMX-channel formats to your disposal, which are explained precisely in the
following text.
1. JB lighting 8 channel drive mode
channel 1
channel 2
channel 3
channel 4
channel 5
channel 6
channel 7
channel 8
DIP-switch position: DIP-switch No.2 switch 2 and 3 off
2. 6 channel drive mode (Clay Paky - Goldenscan 3 compatible)
channel 1
channel 2
channel 3
channel 4
channel 5
channel 6
x-axis
y-axis
gobo
colour
shutter/dimmer
iris
rotating gobos; positioning and rotation
effect wheel
iris and gobo rotation
colour
gobo and effect wheel
dimmer/shutter
x-axis
y-axis
