Put in/ Exchange of the Bulb

Warning: Before opening pull out mains plug!
Loosen the screws at the lid of your Varyscan* with a suitable
screw-driver and lift the lid (label Varyscan* 4 1200 HMI). You
can see the bulb holder in the back third of your Varyscan* (see

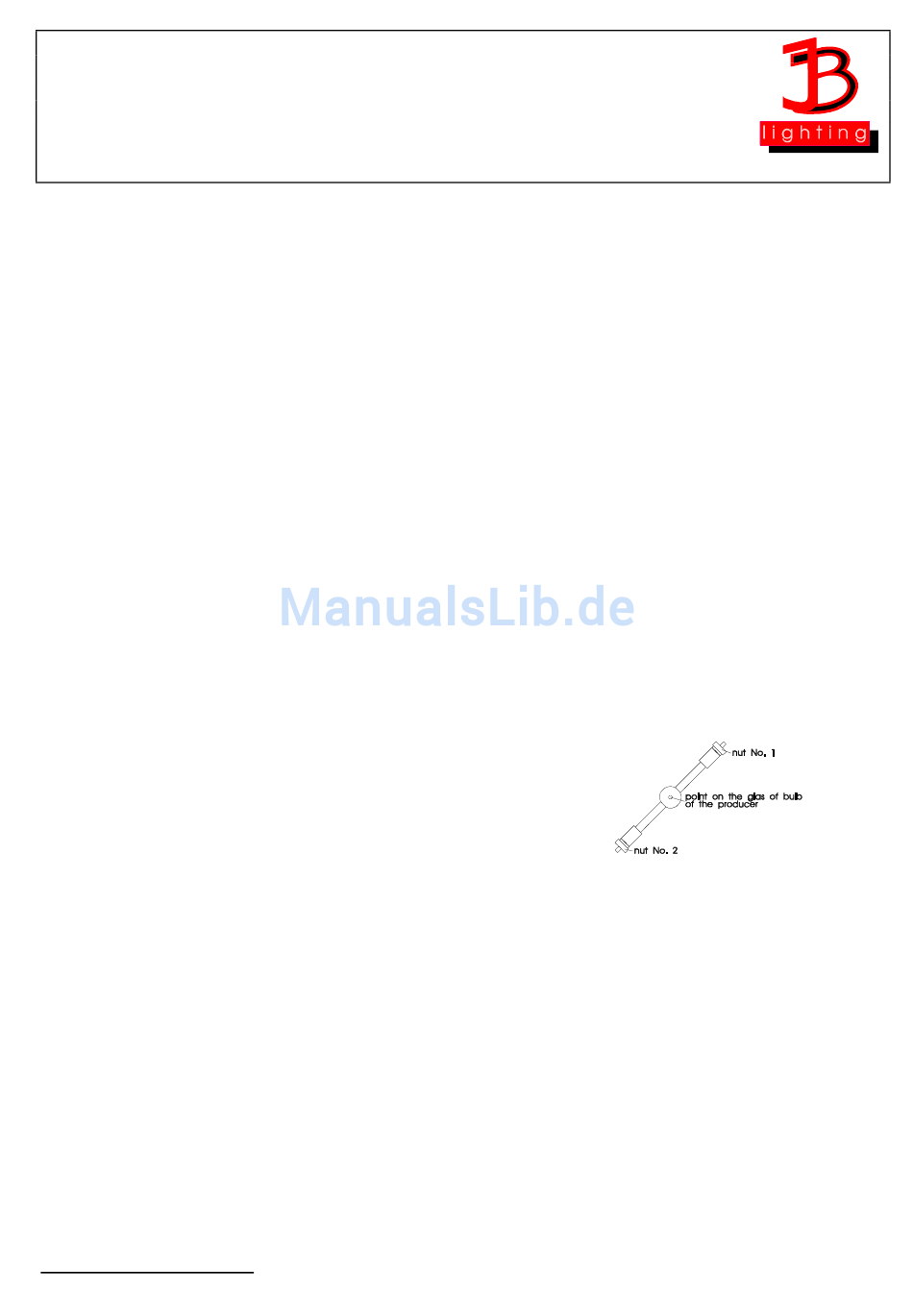

sketch page 4). Now detach nuts No.1 and No.2 and remove the
bulb from it's holder. Put the new HMI bulb into the holder and
tighten nuts No.1 and No.2 by hand. The point on the glass of
the bulb should on no account point to the concave mirror, respectively to the lenses (sketch
page 4), it should point to the base sheet or to the lid. Take care that the bulb is tightened in the
holder.
Warning: Never touch the glass of bulb of the 1200 HMI bulb itself!
An adjustment of the bulb is not necessary.

Starting the Equipment

1. Hang up of Varyscan*
Varyscan* 1200 HMI
