Varyscan* 4 1200 HMI

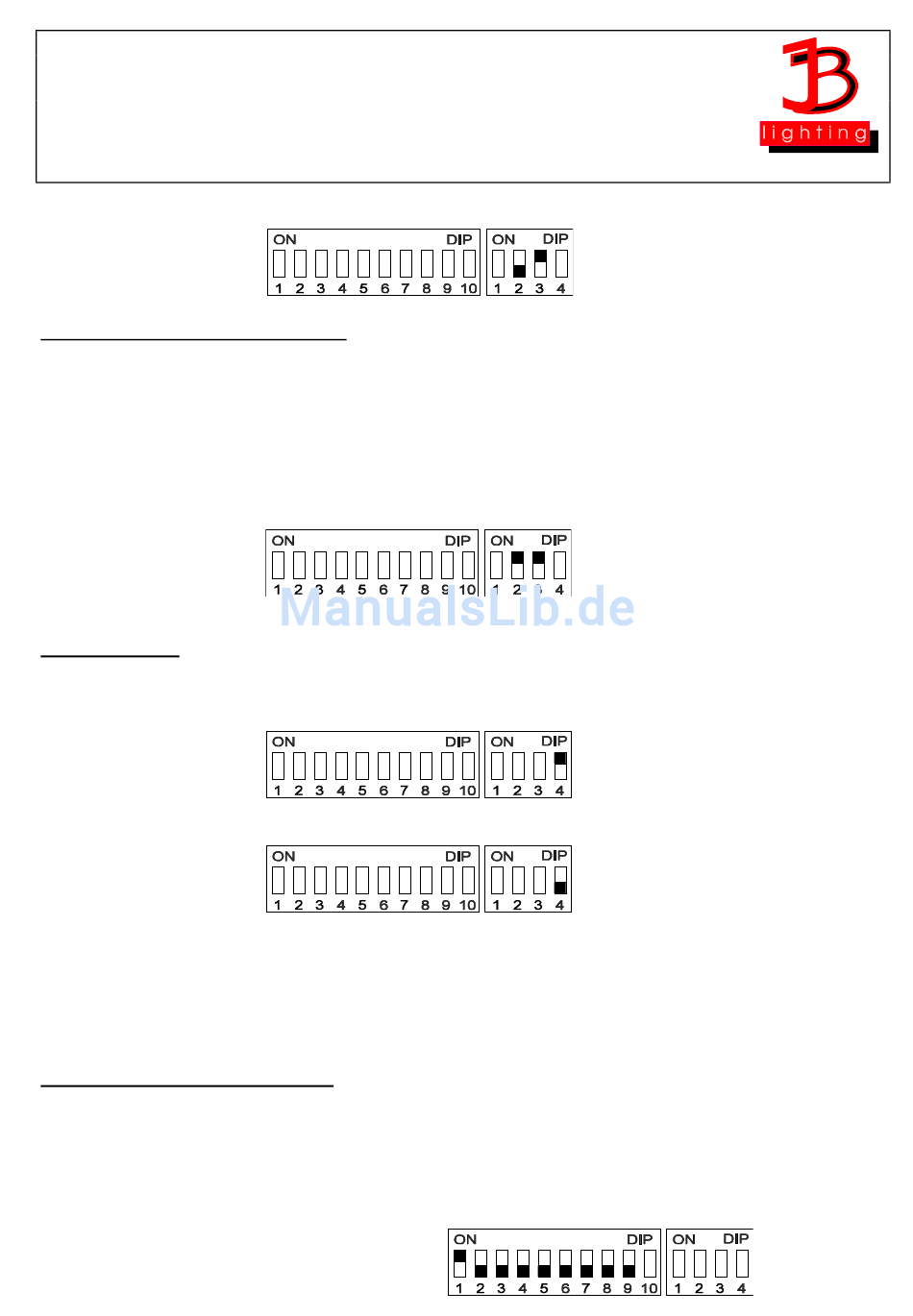

DIP-switch position: DIP-switch No.2 switch 2 off, switch 3 on
3. JB lighting 6 channel drive mode
channel 1
channel 2
channel 3
channel 4
channel 5
channel 6
DIP-switch position: DIP-switch No.2 switch 2 and 3 on
Reset on DMX: DIP-switch No.2 switch 4
If you would like to reset your Varyscan* from your DMX-desk, turn switch 4 on at DIP-switch
No.2. Now you have the possibility to reset your Varyscan*, if you transmit DMX-factor 255 via
gobo channel.
If switch 4 at DIP-switch
is not possible.
Adjustment of DMX-Addresses: DIP-switch No.1 switch 1-9
Depending on the optional drive mode, you have to adjust DMX-addresses as follows. The
addressing works by a binary numeral system and in 6 channel drive mode it has to follow in six
steps.
Varyscan* No.
1
x-motor
y-motor
gobo
colour
dimmer/shutter
iris/gobo rotation
DMX-address
1
No.2 is turned off, reset on DMX
DIP-switch position
