6 Commissioning
8021945.1HW1 /2022-11-14 | SICK
Subject to change without notice
1 Alignment
ZSE18-xxxxx1, -xxxxx3: align the sender (ZSO18) with the receiver (ZEO18). Select the
position so that the infrared light (not visible) hits the receiver. The correct alignment can
only be detected via the LED indicators on the receiver. See
sender must have a clear view of the receiver, with no object in the path of the beam.
Ensure that the optical openings (front screen) of the sensors are completely clear.

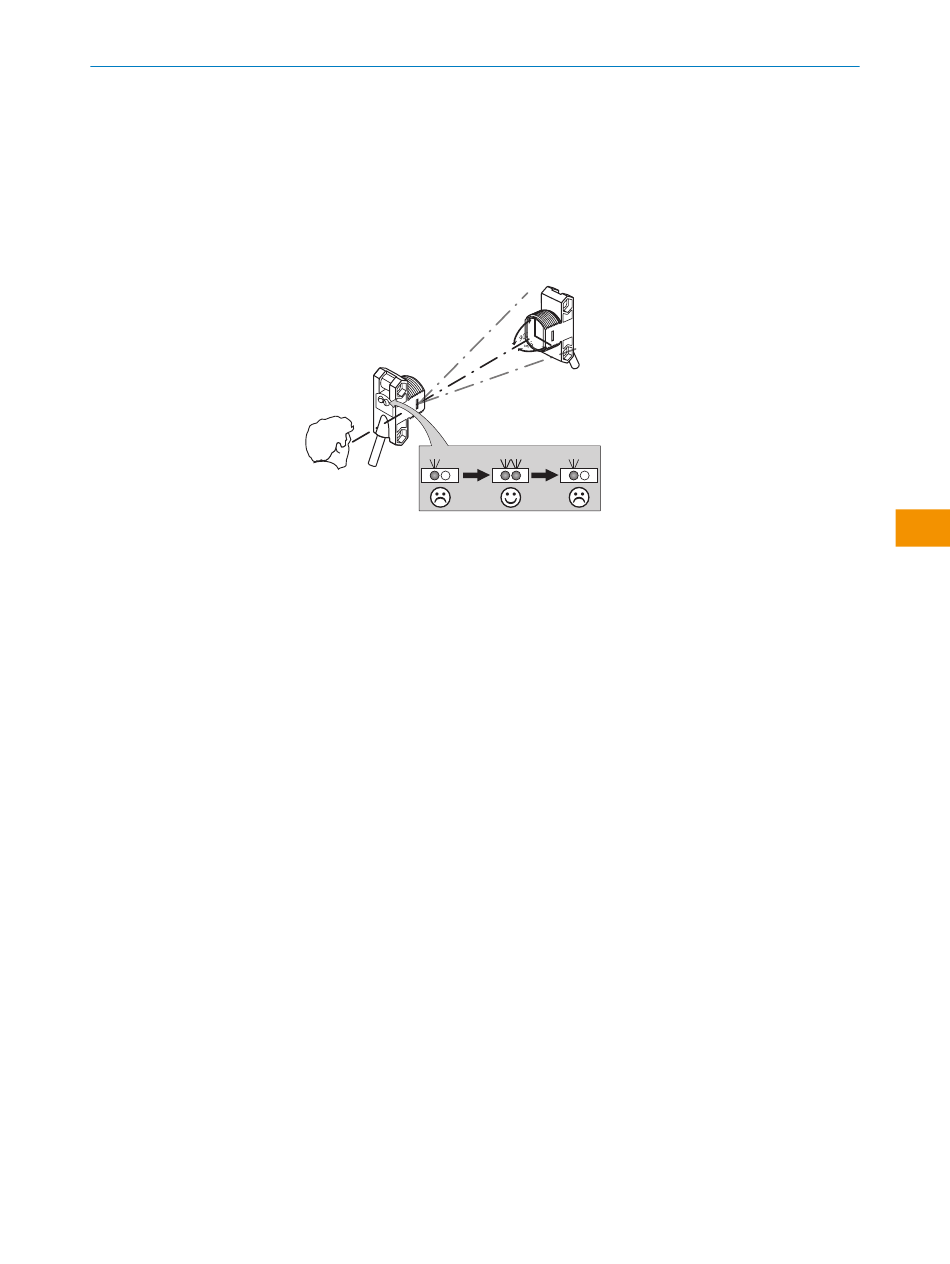

Figure 5: Alignment
OPERATING INSTRUCTION
figure 5 and table 2. The
