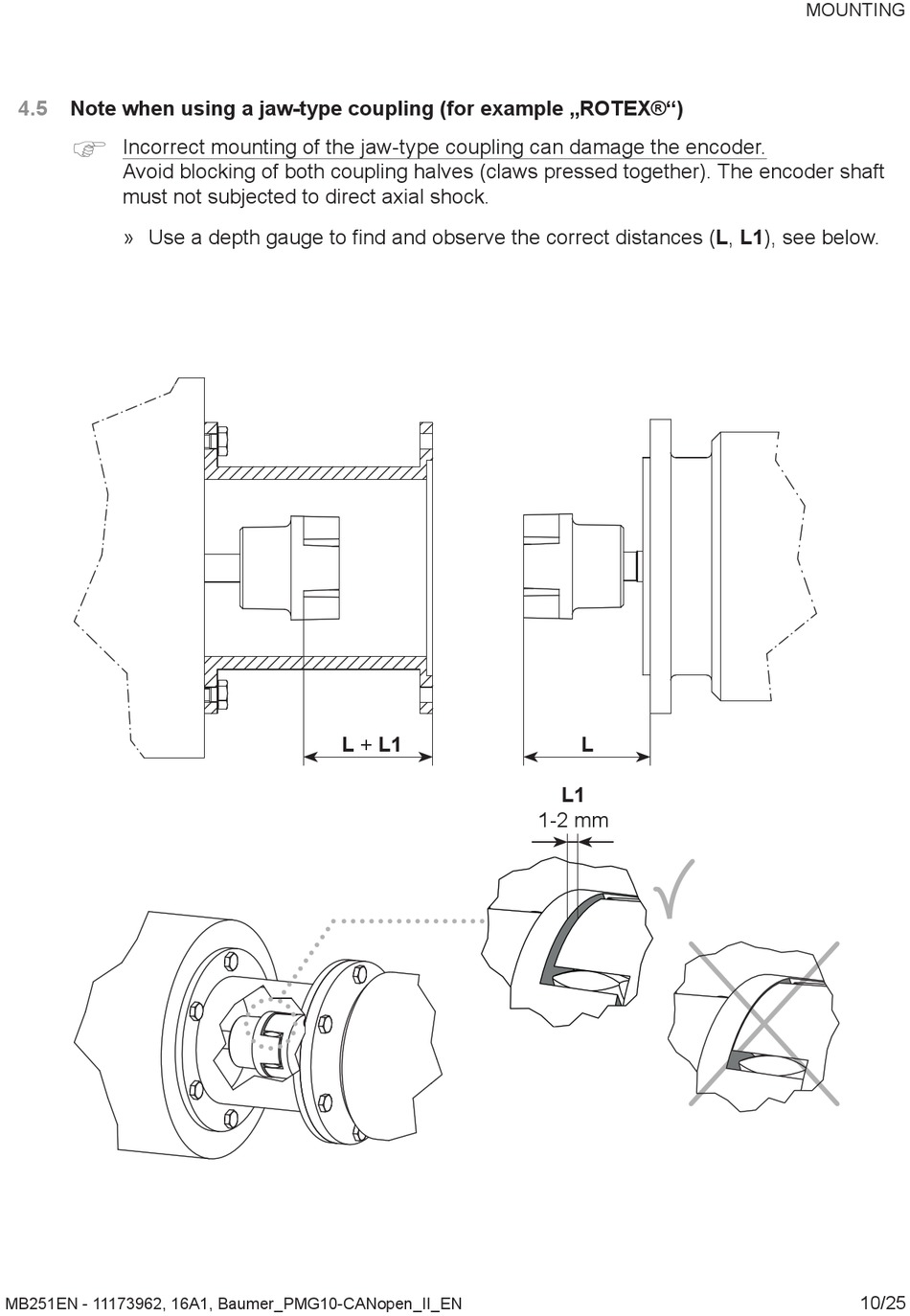

4.5 Note when using a jaw-type coupling (for example „ROTEX®")
)
Incorrect mounting of the jaw-type coupling can damage the encoder�
Avoid blocking of both coupling halves (claws pressed together)� The encoder shaft
must not subjected to direct axial shock�
» Use a depth gauge to find and observe the correct distances (L, L1), see below�
MB251EN - 11173962, 16A1, Baumer_PMG10-CANopen_II_EN
L + L1 L
L1
1-2 mm
MOUNTING
10/25
