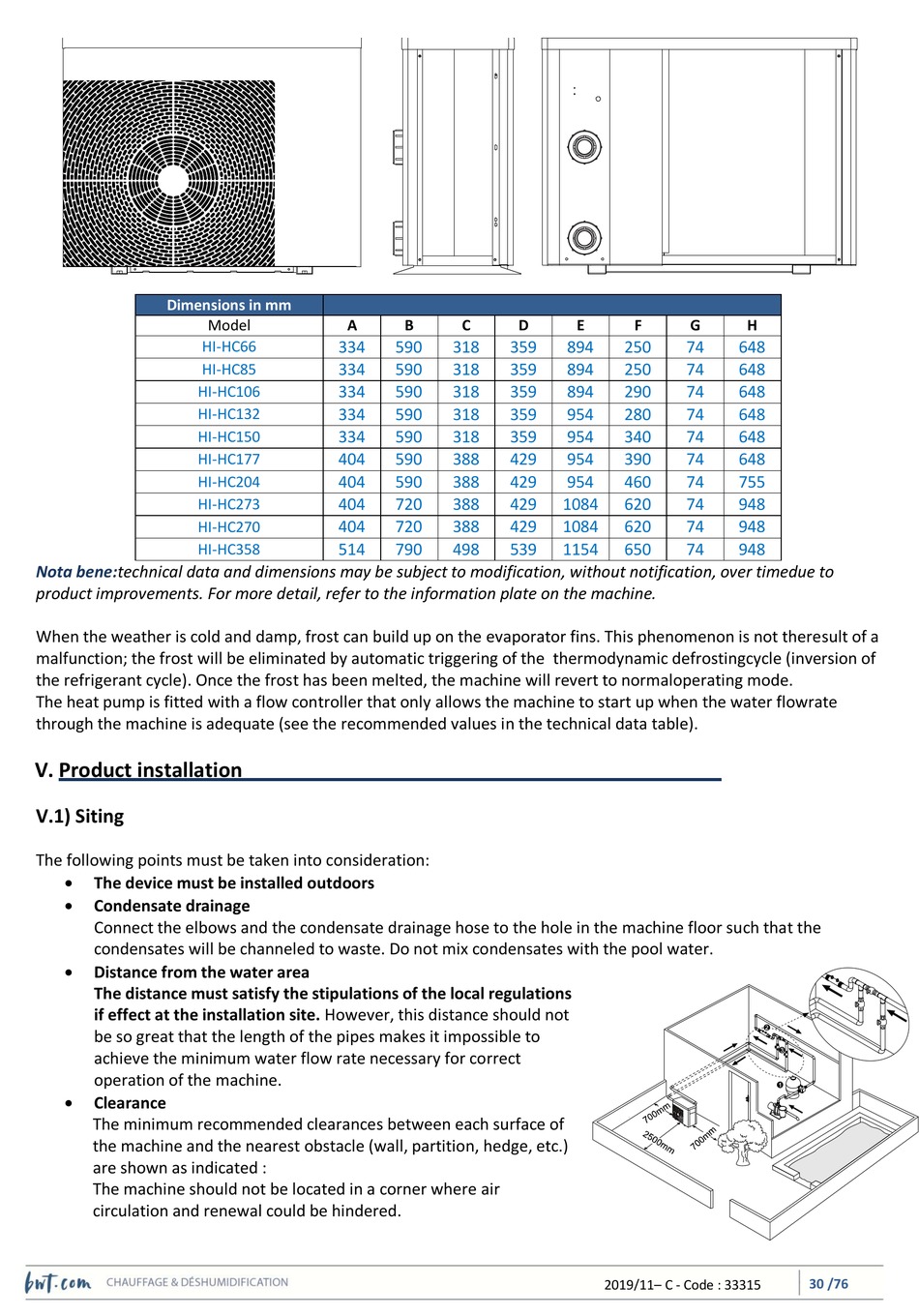

Dimensions in mm
Model
HI-HC66
HI-HC85
HI-HC106
HI-HC132
HI-HC150
HI-HC177
HI-HC204
HI-HC273
HI-HC270
HI-HC358
Nota bene:technical data and dimensions may be subject to modification, without notification, over timedue to
product improvements. For more detail, refer to the information plate on the machine.
When the weather is cold and damp, frost can build up on the evaporator fins. This phenomenon is not theresult of a
malfunction; the frost will be eliminated by automatic triggering of the thermodynamic defrostingcycle (inversion of
the refrigerant cycle). Once the frost has been melted, the machine will revert to normaloperating mode.
The heat pump is fitted with a flow controller that only allows the machine to start up when the water flowrate
through the machine is adequate (see the recommended values in the technical data table).
V. Product installation
V.1) Siting
The following points must be taken into consideration:

The device must be installed outdoors

Condensate drainage
Connect the elbows and the condensate drainage hose to the hole in the machine floor such that the
condensates will be channeled to waste. Do not mix condensates with the pool water.

Distance from the water area
The distance must satisfy the stipulations of the local regulations
if effect at the installation site. However, this distance should not
be so great that the length of the pipes makes it impossible to
achieve the minimum water flow rate necessary for correct
operation of the machine.

Clearance
The minimum recommended clearances between each surface of
the machine and the nearest obstacle (wall, partition, hedge, etc.)
are shown as indicated :
The machine should not be located in a corner where air
circulation and renewal could be hindered.
A B C
334 590 318 359
334 590 318 359
334 590 318 359
334 590 318 359
334 590 318 359
404 590 388 429
404 590 388 429
404 720 388 429
404 720 388 429
514 790 498 539
D E F G
894 250 74
894 250 74
894 290 74
954 280 74
954 340 74
954 390 74
954 460 74
1084 620 74
1084 620 74
1154 650 74
2019/11– C - Code : 33315
H
648
648
648
648
648
648
755
948
948
948
30 /76
