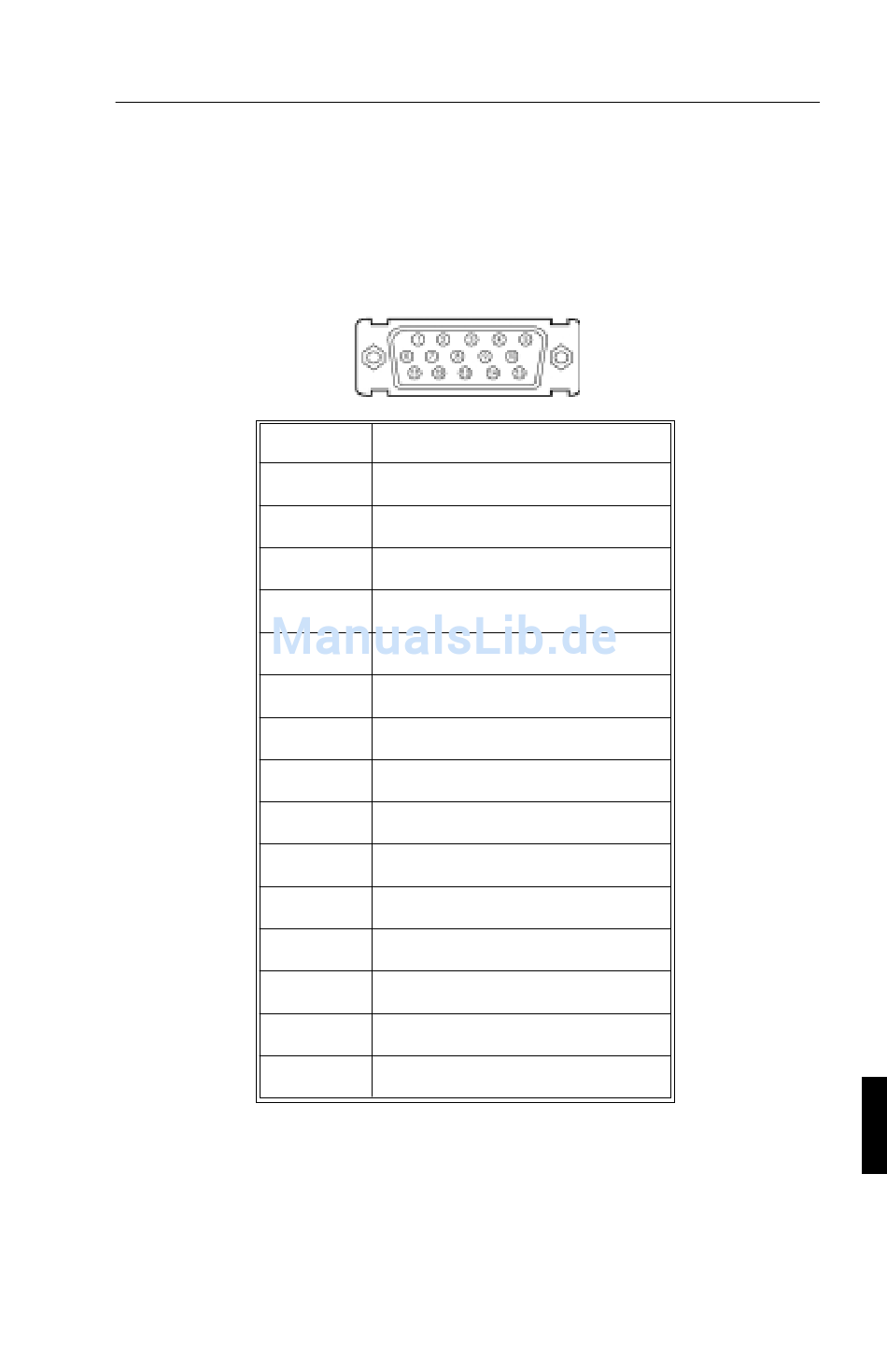

App. A PIN ASSIGNMENTS
App. A PIN ASSIGNMENTS
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
MINI D-SUB 15 P
LCD +, LCD
1510
RED
GREEN
BLUE
NO-CONNECTION
GROUND
GROUND
GROUND
GROUND
+ 5V (DDC)
GROUND
GROUND
SDA
H.SYNC, H/V.SYNC
V.SYNC
SCL
+
1510V
A - 1
