Connect TomTom LINK 310 to the vehicle
power supply with the standard vehicle
voltage (12 V / 24 V). Do not connect to a
voltage converter. The three wires GND, IGN
and PWR+ (supply voltage) must be
connected.
1. Connect the GND wire (brown) to ground
(clamp 31).
2. Fuse the PWR+ wire (red) and the IGN wire
(black) with one 2 A / fast blow fuse
(Technical data on page 26) each.
3. Connect the fused PWR+ wire (red) to the
carry current (clamp 30).
4. Then connect the fused IGN wire (black) to
ignition (clamp 15).
5. The IN1 wire can be used for multiple
purposes, e.g. connecting a digital
tachograph, reporting idle times or
recording other digital inputs. See Using
the digital input on page 18 for details. If
you do not make use of the input IN1,
please connect the IN1 wire (green/blue) to
GND.

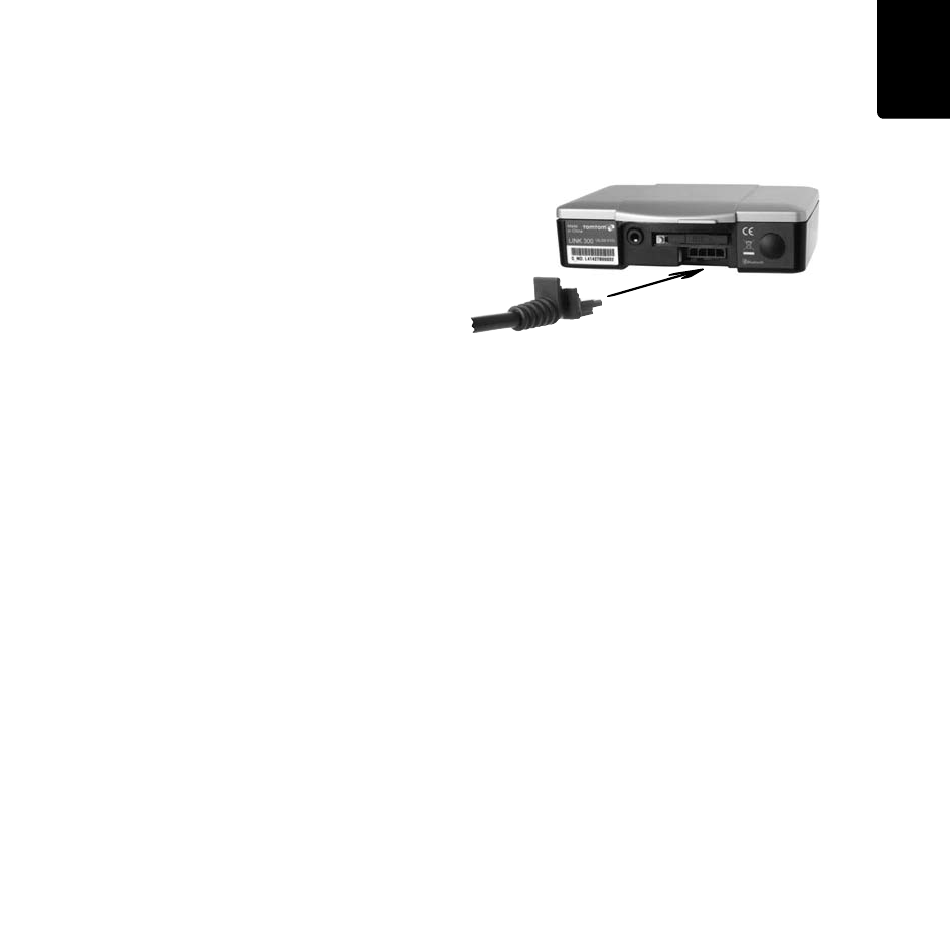

6. Insert the 4-pin plug into the power cable
connector.
