TomTom WORK LINK 310 Installationshandbuch Seite 104

Inhaltsverzeichnis

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 26

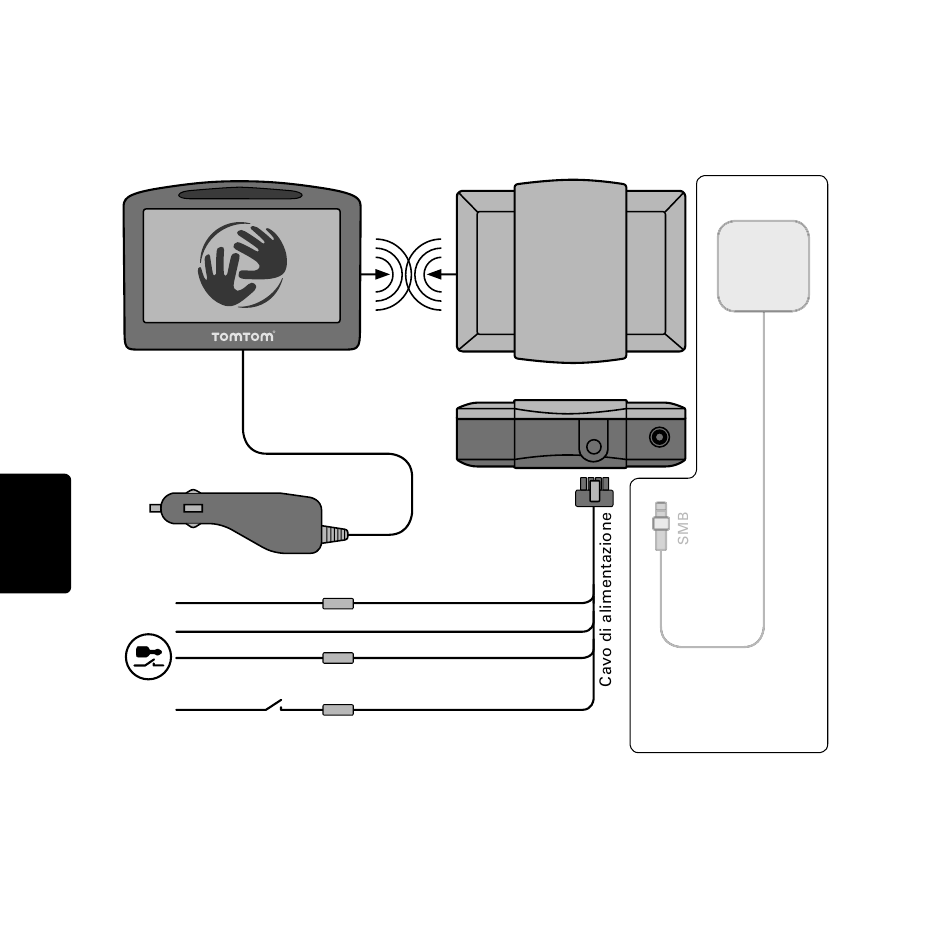

Panoramica del collegamento
Pano-
ramica
TomTom GO 7000
del colle-
gamento
IT
Morsetto 30**
Morsetto 31
Morsetto 15**
+9-30V
* Veda Dati tecnici a pagina 122
** Verifica che questo cavo sia collegato al
fusibile con 15 A.
TomTom LINK 310
Bluetooth
TM
F1 2Af*
(rosso)
(marrone)
F2 2Af*
(nero)
IGN
F3 2Af*
(verde/blu)
106
+9-30V
GND
(+9-30V)
IN 1
Optional
Antenna GPS
Antenna GPS
