JUMPER SETTING & CONNECTORS:
J6:
1 +5V
For aux power (JP2) J6 must be connected to pc power supply !
2 GND
If not, the card wont work.
3 GND
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector:
Pin Signal Pin
1 DCD 4
2 RXD 5 GROUND
3 TXD 6
DB25M:
Serial 25 Pin D-SUB male connector (S2):
Pin Signal Pin
1 GROUND 10
2 TXD 11
3 RXD 12
4 RTS 13
5 CTS 14
6 DSR 15
7 GND 16
8 DCD 17
9 NC 18
NC = Not connect
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation instructions.
Because the designs of computers are different, only general installation instructions are given.
Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your com-
puter. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card. Make sure
the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
5
English English English EX EX EX- - - 44073 44073 44073
DRIVER INSTALLATION :
Windows 2000/XP/Vista & 7:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware assis-
tant. Please choose manual installation and put the driver CD into your CD-Rom drive. Now
enter the Path "D:\IO\OXFORD2\" and then the directory of your operating system "2000"
"XP32" "XP64" "Vista32" "Vista64" "Win7_32bit" or "Win7_64bit" into the box for the
Path/Source and click at >next/continue<. Now Windows search for the drivers in the speci-
fied directory. Follow the hardware assistant and finish the installation. If Windows recognizes
other new devices repeat the above described steps. Attention! Restart Windows in any case
after installing the drivers.
CHECK THE INSTALLED DRIVER:
Signal Pin Signal
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
DTR 7 RTS
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
8 CTS
new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar entries the card is
DSR 9 RI
installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM 3 till
256.
Signal Pin Signal
Windows Server 200x:
NC 19 NC
After starting Windows it recognizes a new "PCI Controller" and opens the hardware assis-
NC 20 DTR
tant. Please choose manual installation and put the driver CD into your CD-Rom drive. Now
NC 21 NC
enter the Path "D:\IO\OXFORD2\" and then the directory of your operating system for Server
2000: "2000" for Server 2003: "XP32" or "XP64" and for Server 2008: "VISTA32" or
NC 22 RI
"VISTA64" into the box for the Path/Source and click at >next/continue<. Now Windows
NC 23 NC
search for the drivers in the specified directory. Follow the hardware assistant and finish the
installation. If Windows recognizes other new devices repeat the above described steps.
NC 24 NC
Attention! Restart Windows in any case after installing the drivers.
NC 25 NC
CHECK THE INSTALLED DRIVER:
NC
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
NC
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar entries the card is
installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM 3 till
256.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions of
Linux. Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for standard IO
ports from your Linux version! In some newer versions the card will even be installed automati-
cally after starting Linux.
English English English
S2 25 Pin Stecker
S1 9 Pin Stecker
Die EX-44073 ist eine PCI-Express serielle RS-232 Karte mit 2 seriellen FIFO 16C95x Ports,
für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B. Terminal, Mo-
dem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei optimal die Leistung des
schnellen 16C95x Chip-Set mit 128byte FIFO Cache. Die EX-44073 gewährleistet so eine
sichere Datenübertragung und exzellente Performance von bis zu 921KBaud/s für jedes
angeschlossene Gerät! Sie unterstützt alle PCI-Express Slots von x1 bis x16. Es ist nicht
möglich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte
vom System (BIOS) und beim Installieren des Betriebssystems automatisch vorgenommen
werden. Mit dem Jumper JP2 & JP3 können Sie 12V oder 5V auf Pin 9 des seriellen Anschlus-
ses leiten. Achten Sie bitte darauf dass die Angeschlossenen Geräte dies auch unterstützen.
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JP2:
JP3:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.0 / 25.07.12

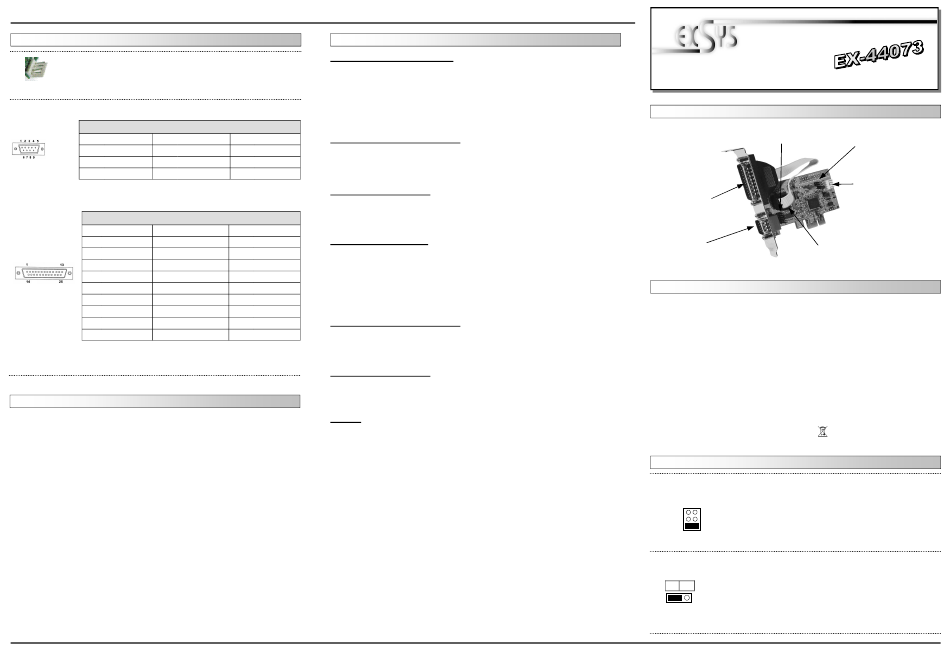

AUFBAU :
S1 Interner Serieller
Anschluss
Serieller Anschluss
JP3 Power auf 9 Pin Stecker Ein/Aus
Serieller Anschluss
BESCHREIBUNG & TECHNISCHE DATEN :
PCI Express x1 bis x16
WIN 2000/XP/Vista/Server 2000/2003/2008/Win7, Linux
1 x 9 Pin und 1 x 25 Pin D-Sub Stecker
EX-44073 Treiber CD, Anleitung
CE CE CE CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE:
Wenn sie den Jumper JP3 für S1 bis S2 auf PWR gesetzt haben, kön-
nen sie mit dem JP2 den Spannungswert einstellen. Es gibt 3 verschie-
dene Spannungsquellen. (Nur in Verbindung mit JP3 auf PWR!!!)
X5V
X12V X 5V = 5Volt vom PC-Netzteil
I12V
X 12V = 12Volt vom PC-Netzteil
I 12V = 12Volt vom Mainboard (STANDARD)
DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator).
(Werkseinstellung)
DIS PWR
PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
eingestellt werden.
S1
Die Einstellung der Spannung nehmen sie mit JP2 vor. Dieser sollte
aber bei Standard Anwendungen nicht verstellt werden.
1
JP2 Jumper für die Strom-
quelle (Netzteil oder
PCI-Express Bus)
J6 Anschluss für Power
vom PC Netzteil
