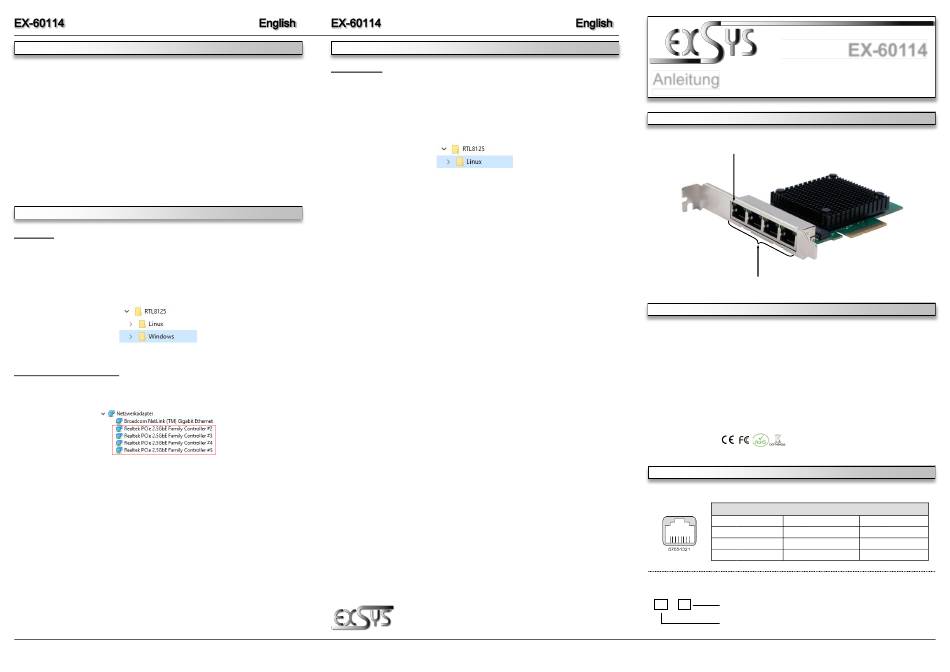

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-60114. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive (eg drive D:) and then open the folder „RTL8125/Windows". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Networkadapter" the following new
entries:
If you see these or a similar informations the device is installed correctly.
5
DRIVER INSTALLATION
Linux / Unix
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive (eg drive D:) and then open the folder „RTL8125/Linux". Please select the folder with
your operating system and install the driver (see Picture). Follow the hardware assistant and
finish the installation. Important! Restart your PC in any case after installing the drivers.
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.0 / 04.11.22

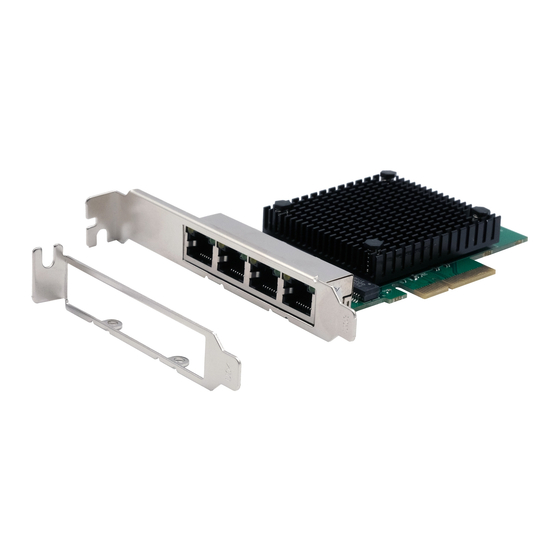

AUFBAU
Status LED´s pro Anschluss
4x RJ45 Anschluss
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-60114 ist eine High-Speed 2,5 Gigabit Ethernet PCI-Express Karte. Sie ist mit vier
externe RJ45 Anschlüsse ausgestattet. Die EX-60114 unterstützt alle PCI-Express Slots von x4
bis x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung des schnellen Realtek
Chipsatz. Die EX-60114 gewährleistet so eine sichere Datenübertragung und exzellente Perfor-
mance von bis zu 2,5 Gbit/s!
Kompatibilität: PCI-Express x4 bis x16
Betriebssysteme: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / Unix
Anschlüsse: 4x RJ45 2,5 Gigabit Ethernet Anschluss
Lieferumfang: EX-60114, Treiber CD, Low Profile Bügel, Anleitung
Zertifikate:
ANSCHLÜSSE & LED`S
RJ45 Anschluss:
RJ45 Anschluss
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
Status LED´s:
LINK / Connected
ACT LAN DATA
1
EX-60114
Pin Signal
7 BI_DD+
8 BI_DD-
