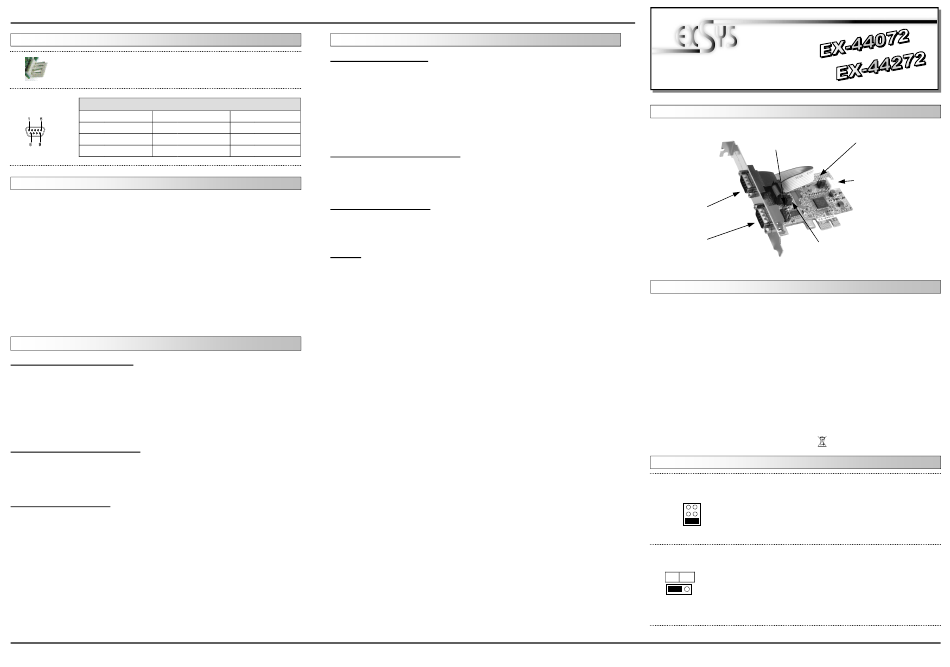

Exsys EX-44072 Bedienungsanleitung

EX EX- EX - - 44072 / 44072 / EX 44072 / EX EX- - - 44272 44272 44272
JUMPER SETTING & CONNECTORS:
J6:
1 +5V
For aux power (JP2) J6 must be connected to pc power supply !
2 GND
If not, the card wont work.
3 GND
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector:
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Comput-
er and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 2000/XP/Vista & 7:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system "2000" "XP32" "XP64" "Vista32" "Vista64" "Win7_32bit" or "Win7_64bit"
into the box for the Path/Source and click at >next/continue<. Now Windows search
for the drivers in the specified directory. Follow the hardware assistant and finish the
installation. If Windows recognizes other new devices repeat the above described
steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one or more new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar
entries the card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 till 256.
5
English English English EX EX- EX - - 44072 / EX 44072 / EX 44072 /
DRIVER INSTALLATION :
Windows Server 200x:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system for Server 2000: "2000" for Server 2003: "XP32" or "XP64" and for Server
2008: "VISTA32" or "VISTA64" into the box for the Path/Source and click at >next/
continue<. Now Windows search for the drivers in the specified directory. Follow the
Signal Pin Signal
hardware assistant and finish the installation. If Windows recognizes other new devices
DTR 7 RTS repeat the above described steps. Attention! Restart Windows in any case after in-
stalling the drivers.
8 CTS
DSR 9 RI
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one or more new "PCI Ports" as sample (LPT2) or (Com3). If you see this or similar
entries the card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 till 256.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
EX- - - 44272 44272 44272
6
English English English
Bedienungsanleitung Bedienungsanleitung
Vers. 1.3 / 05.12.11
AUFBAU :
S1
S2 9 Pin Stecker
Serieller Anschluss
S1 9 Pin Stecker
Serieller Anschluss
BESCHREIBUNG & TECHNISCHE DATEN :

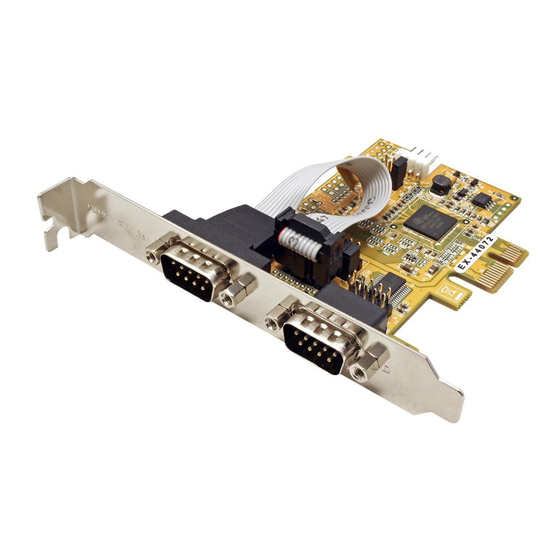

Die EX-44072/EX-44272 ist eine PCI-Express serielle RS-232 Karte mit 2 seriellen FIFO
16C95x Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B.
Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei optimal die
Leistung des schnellen 16C95x Chip-Set mit 128byte FIFO Cache. Die EX-44072 gewährleis-
tet so eine sichere Datenübertragung und exzellente Performance von bis zu 921KBaud/s für
jedes angeschlossene Gerät! Sie unterstützt alle PCI-Express Slots von x1 bis x16. Es ist nicht
möglich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte
vom System (BIOS) und beim Installieren des Betriebssystems automatisch vorgenommen
werden. Mit dem Jumper JP2 & JP3 können Sie 12V oder 5V auf Pin 9 des seriellen Anschlus-
ses leiten. Achten Sie bitte darauf dass die Angeschlossenen Geräte dies auch unterstützen.
Die EX-44272 ist eine LowProfile Karte für schmale PC Gehäuse bis 8cm Bauhöhe.
Kompatibilität: PCI Express x1 bis x16
Betriebs Systeme: WIN 2000/XP/Vista/Server 2000/2003/2008/Win7, Linux
Anschlüsse: 2 x 9 Pin Sub-D Stecker
Lieferumfang: EX-44072 oder EX-44272, Treiber CD, Anleitung
CE CE CE CE
Zertifikate: / FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
JP2:
Wenn sie den Jumper JP3 für S1 bis S2 auf PWR gesetzt haben, kön-
nen sie mit dem JP2 den Spannungswert einstellen. Es gibt 3 verschie-
dene Spannungsquellen. (Nur in Verbindung mit JP3 auf PWR!!!)
X5V
X12V X 5V = 5Volt vom PC-Netzteil
I12V
X 12V = 12Volt vom PC-Netzteil
I 12V = 12Volt vom Mainboard (STANDARD)
DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator).
JP3:
DIS PWR
PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
S1
Die Einstellung der Spannung nehmen sie mit JP2 vor. Dieser sollte
aber bei Standard Anwendungen nicht verstellt werden.
Interner Serieller
JP2 Jumper für die Strom-
Anschluss
quelle (Netzteil oder
PCI-Express Bus)
J6 Anschluss für Power
vom PC Netzteil
JP3 Power auf 9 Pin Stecker Ein/Aus
DE97424562 / WHQL
(Werkseinstellung)
eingestellt werden.
1
