Mounting of wall suspension for CDT 22/35/35S and 50
Introduction
The wall suspension brackets may be used for CDT 22, 35, 35S and 50.
Procedure
Follow this procedure to mount the wall suspension:
Step
Illustration

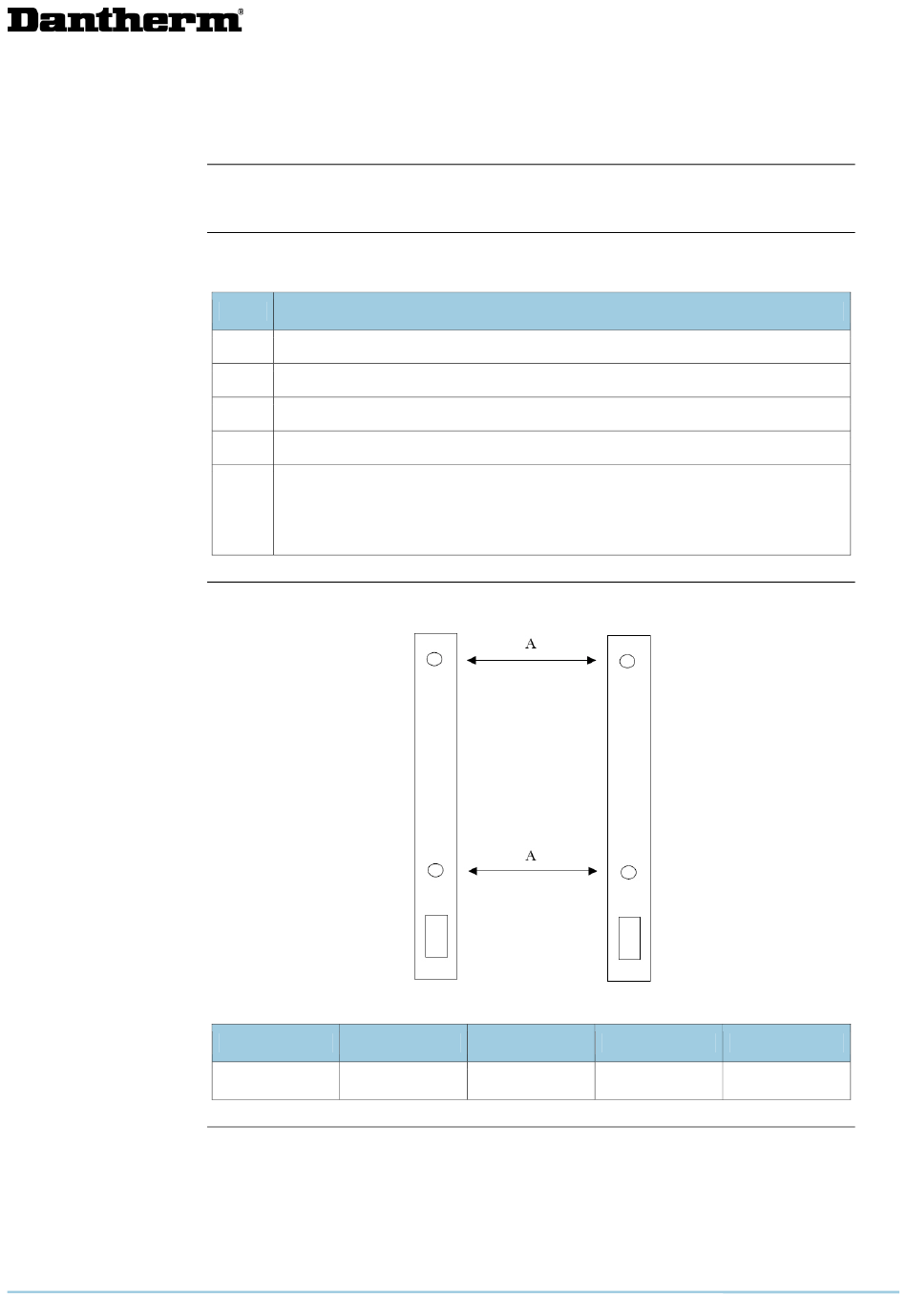

Use this illustration when mounting:
A
1
Remove the wheels from the unit
2
Fix the brackets onto the wall according to the drawing below
3
Place the unit on the brackets - the back against the wall
4
Fix the wheel axle with the screws and fasteners enclosed
5
Adjust the feet so that the back of the unit is in upright position.
It is important that the back of the unit, i.e. the flat side with the removable
filter cassette, is placed vertically so that the water in the drip tray is led to
the outlet.
CDT 22
410 mm
Action
CDT 35
CDT 35S
510 mm
510 mm
CDT 50
510 mm
