ELECTRICAL CONNECTION / SPEED SWITCH AND ADDITIONAL OUTPUT INCREMENTAL

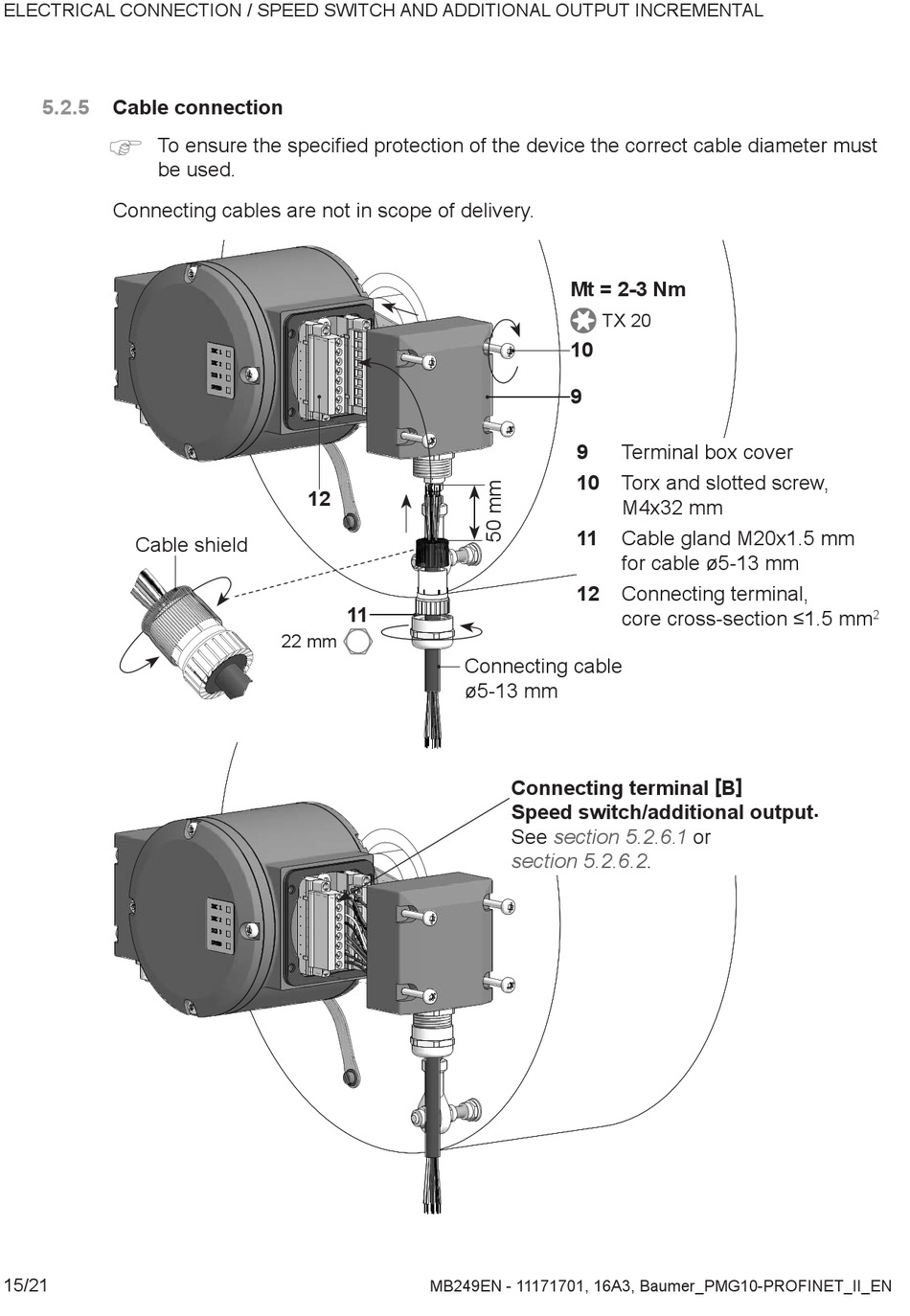

5.2.5 Cable connection
)
To ensure the specified protection of the device the correct cable diameter must
be used�
Connecting cables are not in scope of delivery�
Cable shield
15/21
12
11
22 mm
MB249EN - 11171701, 16A3, Baumer_PMG10-PROFINET_II_EN
Mt = 2-3 Nm
TX 20
10
9
9 Terminal box cover
10 Torx and slotted screw,
M4x32 mm
11 Cable gland M20x1�5 mm
for cable ø5-13 mm
12
Connecting terminal,
core cross-section ≤1.5 mm
Connecting cable
ø5-13 mm
Connecting terminal [ B ]
Speed switch/additional output .
See section 5.2.6.1
section 5.2.6.2�
or
