Machine Components - Collomix X 1010 Originalbetriebsanleitung

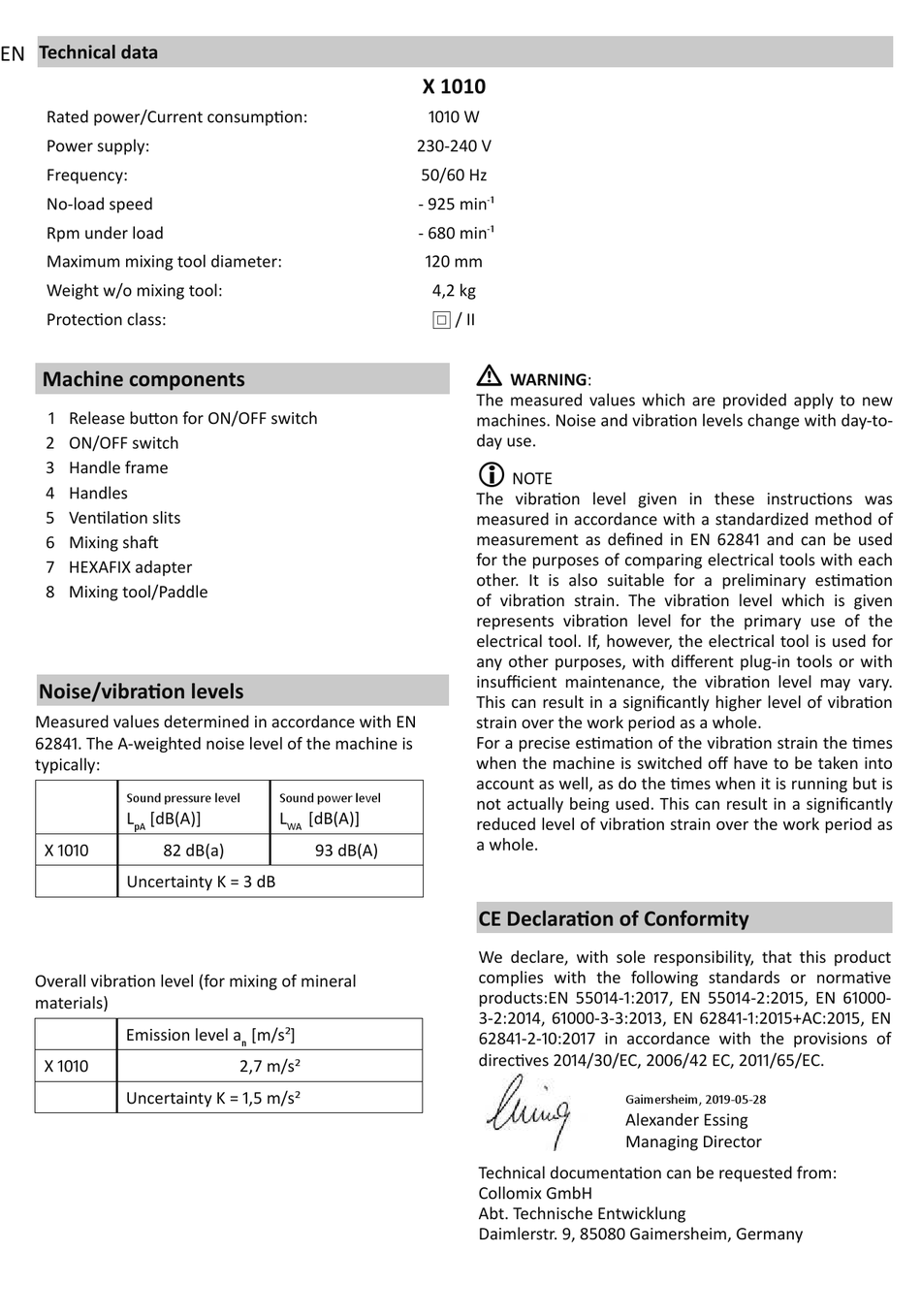

Technical data
EN
Rated power/Current consump琀椀on:
Power supply:
Frequency:
No-load speed
Rpm under load
Maximum mixing tool diameter:
Weight w/o mixing tool:
Protec琀椀on class:

Machine components

1 Release bu琀琀on for ON/OFF switch
2 ON/OFF switch
3 Handle frame
4 Handles
5 Ven琀椀la琀椀on slits
6 Mixing sha昀琀
7 HEXAFIX adapter
8 Mixing tool/Paddle
Noise/vibra琀椀on levels
Measured values determined in accordance with EN
62841. The A-weighted noise level of the machine is
typically:
Sound pressure level
L [dB(A)]
pA
X 1010 82 dB(a)
Uncertainty K = 3 dB
Overall vibra琀椀on level (for mixing of mineral
materials)
Emission level a
X 1010
Uncertainty K = 1,5 m/s
- 925 min
- 680 min
Sound power level
L [dB(A)]
WA
93 dB(A)
2
[m/s ]
n
2,7 m/s
2
2
X 1010
1010 W
230-240 V
50/60 Hz
-1
-1
120 mm
4,2 kg
q / II
L
WARNING:
The measured values which are provided apply to new
machines. Noise and vibra琀椀on levels change with day-to-
day use.

NOTE
The vibra琀椀on level given in these instruc琀椀ons was
measured in accordance with a standardized method of
measurement as de昀椀ned in EN 62841 and can be used
for the purposes of comparing electrical tools with each
other. It is also suitable for a preliminary es琀椀ma琀椀on
of vibra琀椀on strain. The vibra琀椀on level which is given
represents vibra琀椀on level for the primary use of the
electrical tool. If, however, the electrical tool is used for
any other purposes, with di昀昀erent plug-in tools or with
insu昀케cient maintenance, the vibra琀椀on level may vary.
This can result in a signi昀椀cantly higher level of vibra琀椀on
strain over the work period as a whole.
For a precise es琀椀ma琀椀on of the vibra琀椀on strain the 琀椀mes
when the machine is switched o昀昀 have to be taken into
account as well, as do the 琀椀mes when it is running but is
not actually being used. This can result in a signi昀椀cantly
reduced level of vibra琀椀on strain over the work period as
a whole.
CE Declara琀椀on of Conformity
We declare, with sole responsibility, that this product
complies with the following standards or norma琀椀ve
products:EN 55014-1:2017, EN 55014-2:2015, EN 61000-
3-2:2014, 61000-3-3:2013, EN 62841-1:2015+AC:2015, EN
62841-2-10:2017 in accordance with the provisions of
direc琀椀ves 2014/30/EC, 2006/42 EC, 2011/65/EC.
Technical documenta琀椀on can be requested from:
Collomix GmbH
Abt. Technische Entwicklung
Daimlerstr. 9, 85080 Gaimersheim, Germany
Gaimersheim, 2019-05-28
Alexander Essing
Managing Director
