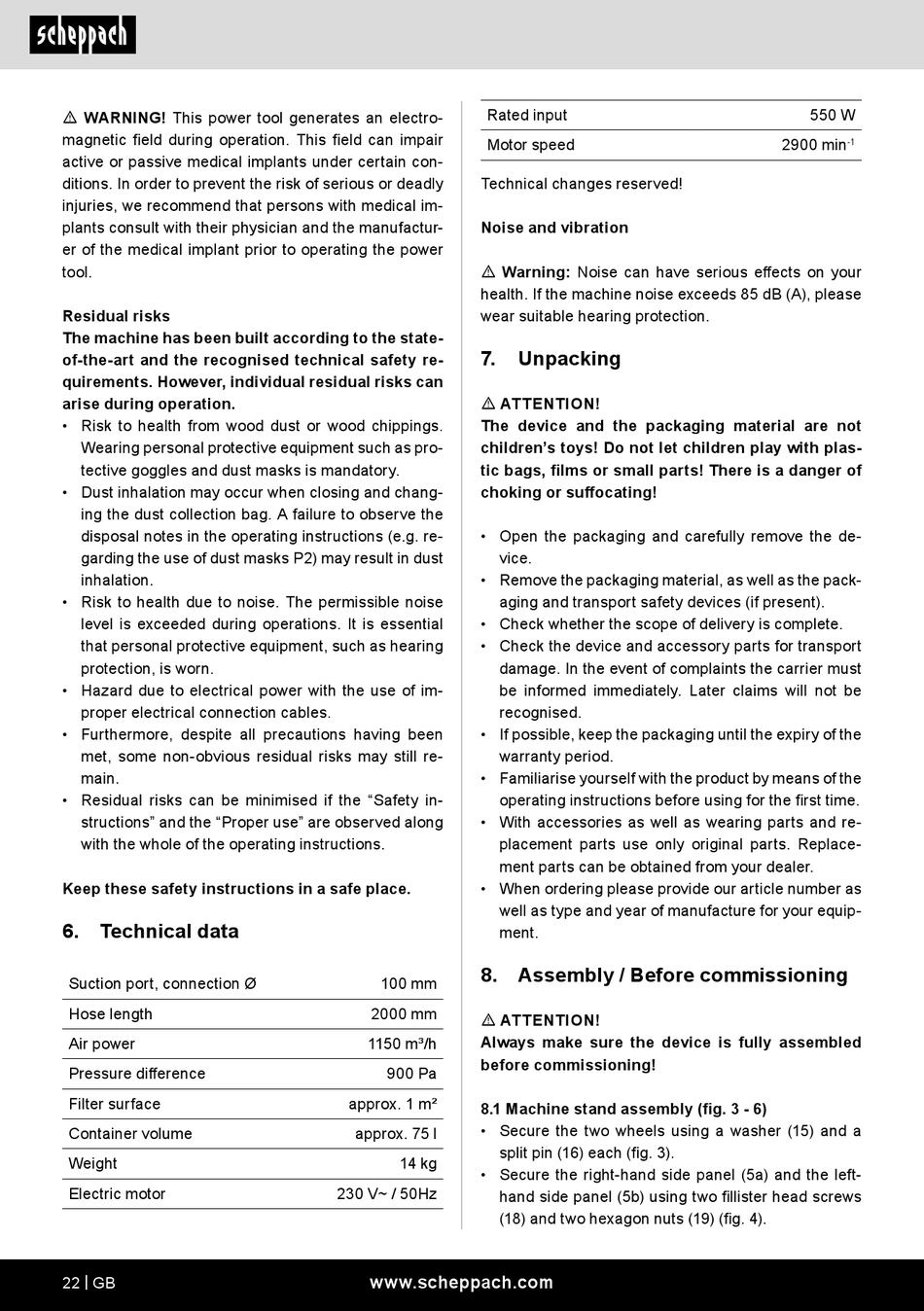

Technical Data; Unpacking; Assembly / Before Commissioning - Scheppach DC500 Original Bedienungsanleitung

m WARNING! This power tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain con-
ditions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical im-
plants consult with their physician and the manufactur-
er of the medical implant prior to operating the power
tool.
Residual risks
The machine has been built according to the state-
of-the-art and the recognised technical safety re-
quirements. However, individual residual risks can
arise during operation.
• Risk to health from wood dust or wood chippings.
Wearing personal protective equipment such as pro-
tective goggles and dust masks is mandatory.
• Dust inhalation may occur when closing and chang-
ing the dust collection bag. A failure to observe the
disposal notes in the operating instructions (e.g. re-
garding the use of dust masks P2) may result in dust
inhalation.
• Risk to health due to noise. The permissible noise
level is exceeded during operations. It is essential
that personal protective equipment, such as hearing
protection, is worn.
• Hazard due to electrical power with the use of im-
proper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Safety in-
structions" and the "Proper use" are observed along
with the whole of the operating instructions.
Keep these safety instructions in a safe place.

6. Technical data

Suction port, connection Ø
Hose length
Air power
Pressure difference
Filter surface
Container volume
Weight
Electric motor
22 | GB
Rated input
Motor speed
Technical changes reserved!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A), please
wear suitable hearing protection.
7.
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.

8. Assembly / Before commissioning

100 mm
2000 mm
m ATTENTION!
Always make sure the device is fully assembled
1150 m³/h
before commissioning!
900 Pa
approx. 1 m²
8.1 Machine stand assembly (fig. 3 - 6)
• Secure the two wheels using a washer (15) and a
approx. 75 l
split pin (16) each (fig. 3).
14 kg
• Secure the right-hand side panel (5a) and the left-
230 V~ / 50Hz
hand side panel (5b) using two fillister head screws
(18) and two hexagon nuts (19) (fig. 4).
www.scheppach.com

Unpacking

550 W
2900 min
-1
