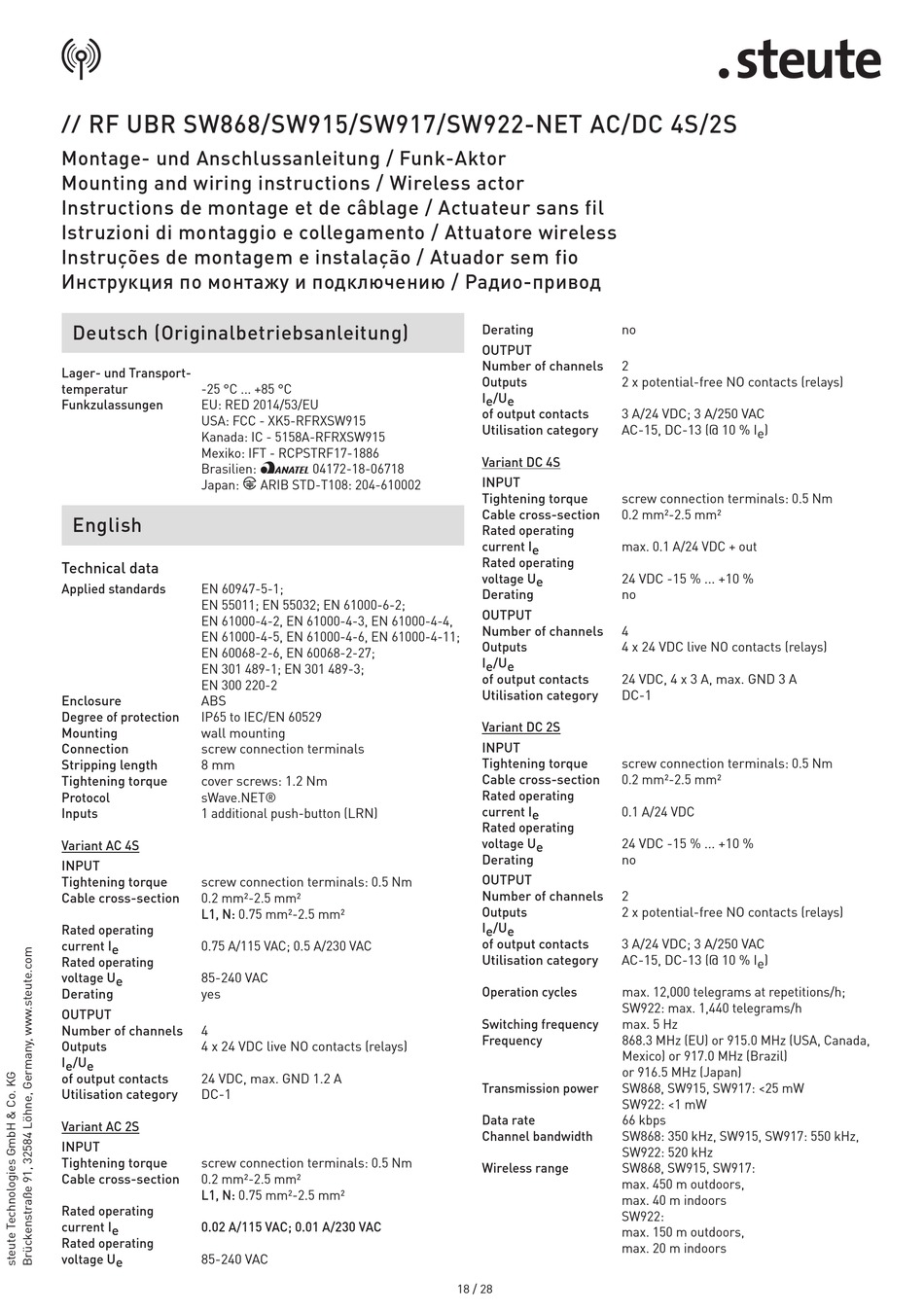

RF UBR SW868/SW915/SW917/SW922-NET AC/DC 4S/2S
//
Montage- und Anschlussanleitung / Funk-Aktor
Mounting and wiring instructions / Wireless actor
Instructions de montage et de câblage / Actuateur sans fil
Istruzioni di montaggio e collegamento / Attuatore wireless
Instruções de montagem e instalação / Atuador sem fio
Инструкция по монтажу и подключению / Радио-привод
Deutsch (Originalbetriebsanleitung)
Lager- und Transport-
temperatur -25 °C ... +85 °C
Funkzulassungen EU: RED 2014/53/EU
USA: FCC - XK5-RFRXSW915
Kanada: IC - 5158A-RFRXSW915
Mexiko: IFT - RCPSTRF17-1886
Brasilien:
Japan:
English
Technical data
Applied standards EN 60947-5-1;
EN 55011; EN 55032; EN 61000-6-2;
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-11;
EN 60068-2-6, EN 60068-2-27;
EN 301 489-1; EN 301 489-3;
EN 300 220-2
Enclosure ABS
Degree of protection IP65 to IEC/EN 60529
Mounting wall mounting
Connection screw connection terminals
Stripping length 8 mm
Tightening torque cover screws: 1.2 Nm
Protocol sWave.NET®
Inputs 1 additional push-button (LRN)
Variant AC 4S
INPUT
Tightening torque screw connection terminals: 0.5 Nm
Cable cross-section 0.2 mm²-2.5 mm²
L1, N: 0.75 mm²-2.5 mm²
Rated operating
current I e 0.75 A/115 VAC; 0.5 A/230 VAC
Rated operating
voltage U e 85-240 VAC
Derating yes
OUTPUT
Number of channels 4
Outputs 4 x 24 VDC live NO contacts (relays)
I e /U e
of output contacts 24 VDC, max. GND 1.2 A
Utilisation category DC-1
Variant AC 2S
INPUT
Tightening torque screw connection terminals: 0.5 Nm
Cable cross-section 0.2 mm²-2.5 mm²
L1, N: 0.75 mm²-2.5 mm²
Rated operating
current I e 0.02 A/115 VAC; 0.01 A/230 VAC
Rated operating
voltage U e 85-240 VAC
04172-18-06718
ö
? ARIB STD-T108: 204-610002
Derating no
OUTPUT
Number of channels 2
Outputs 2 x potential-free NO contacts (relays)
I e /U e
of output contacts 3 A/24 VDC; 3 A/250 VAC
Utilisation category AC-15, DC-13 (@ 10 % I e )
Variant DC 4S
INPUT
Tightening torque screw connection terminals: 0.5 Nm
Cable cross-section 0.2 mm²-2.5 mm²
Rated operating
current I e max. 0.1 A/24 VDC + out
Rated operating
voltage U e 24 VDC -15 % ... +10 %
Derating no
OUTPUT
Number of channels 4
Outputs 4 x 24 VDC live NO contacts (relays)
I e /U e
of output contacts 24 VDC, 4 x 3 A, max. GND 3 A
Utilisation category DC-1
Variant DC 2S
INPUT
Tightening torque screw connection terminals: 0.5 Nm
Cable cross-section 0.2 mm²-2.5 mm²
Rated operating
current I e 0.1 A/24 VDC
Rated operating
voltage U e 24 VDC -15 % ... +10 %
Derating no
OUTPUT
Number of channels 2
Outputs 2 x potential-free NO contacts (relays)
I e /U e
of output contacts 3 A/24 VDC; 3 A/250 VAC
Utilisation category AC-15, DC-13 (@ 10 % I e )
Operation cycles max. 12,000 telegrams at repetitions/h;
SW922: max. 1,440 telegrams/h
Switching frequency max. 5 Hz
Frequency 868.3 MHz (EU) or 915.0 MHz (USA, Canada,
Mexico) or 917.0 MHz (Brazil)
or 916.5 MHz (Japan)
Transmission power SW868, SW915, SW917: <25 mW
SW922: <1 mW
Data rate 66 kbps
Channel bandwidth SW868: 350 kHz, SW915, SW917: 550 kHz,
SW922: 520 kHz
Wireless range SW868, SW915, SW917:
max. 450 m outdoors,
max. 40 m indoors
SW922:
max. 150 m outdoors,
max. 20 m indoors
18 / 28
