Connection as a group controller
Attention
If the control is used as a group control device, for example, no bridge can be
inserted between the L and C terminals!

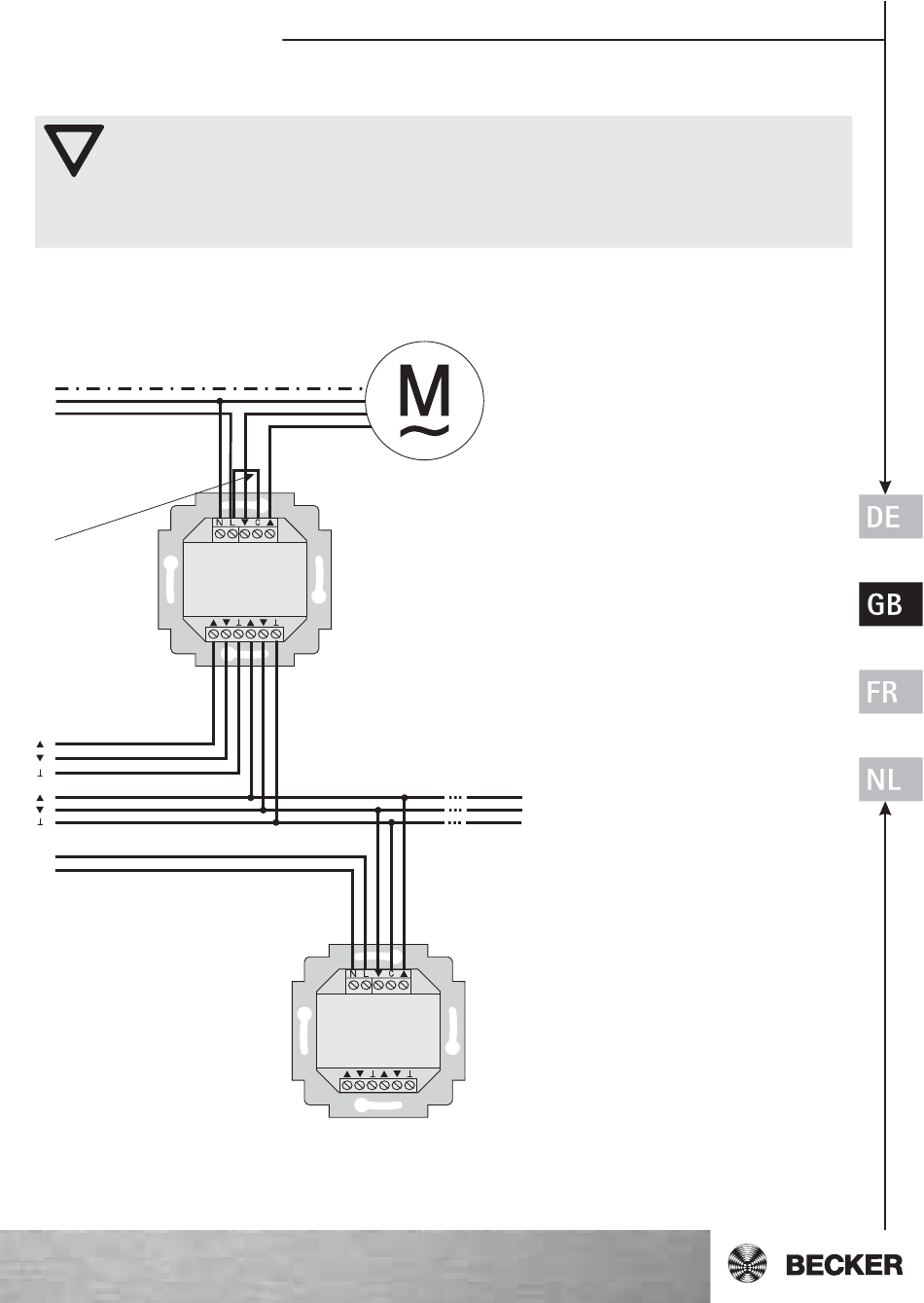

1. Connect the power supply unit to the TC52 as follows:
PE
N
L
bridge
single
command
L
N
4. Put the protective caps back on the power supply unit.
5. Fix the power supply unit in the box.
Put the operating device in the frame and plug it into the power supply unit.
Tubular drive
green/yellow
blue
brown/black
black/brown
central
command
single central
command command
central
connection
