Scope Of Supply And Equipment Variants; Scope Of Supply; Accessories - HBK U15 Montageanleitung

3

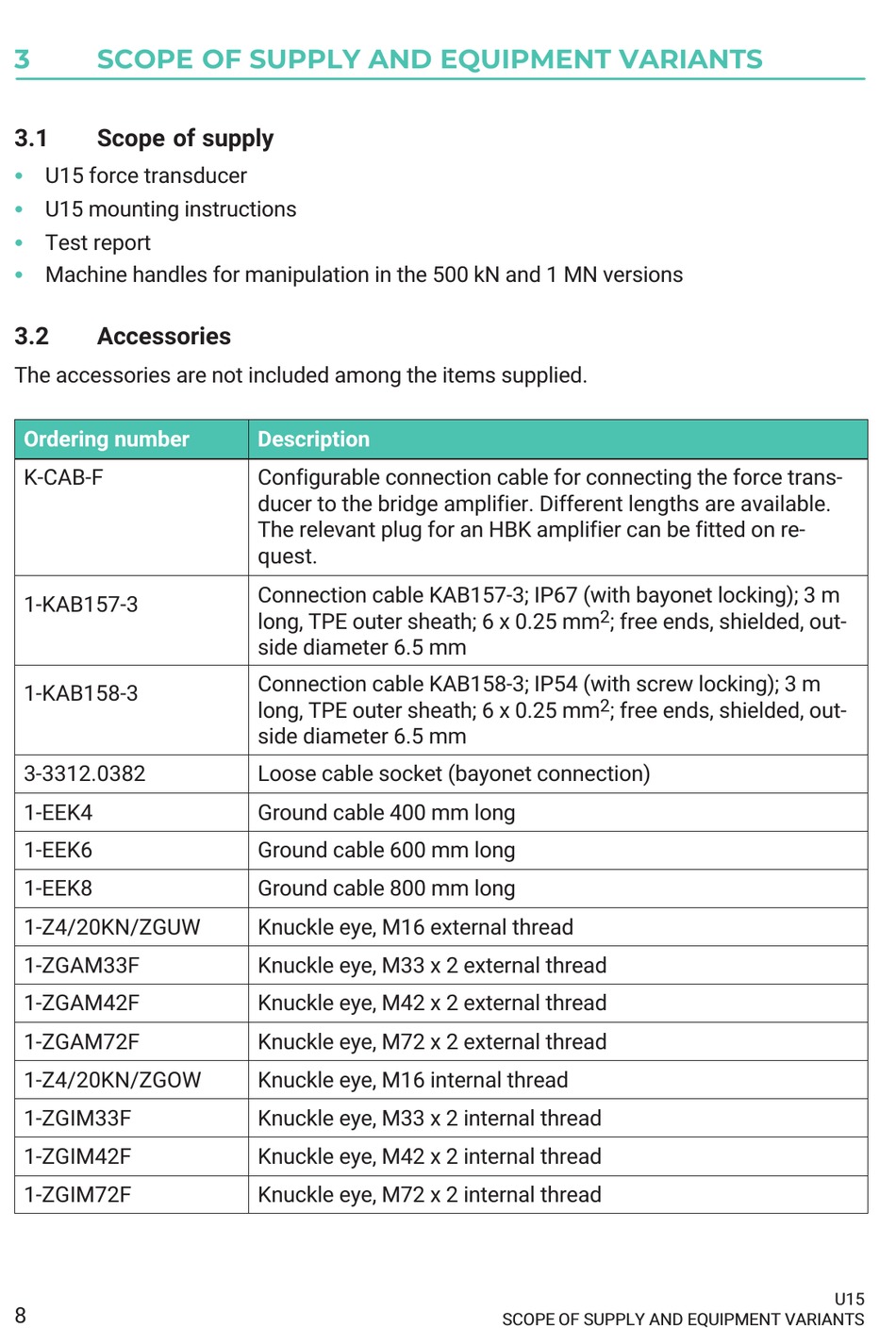

SCOPE OF SUPPLY AND EQUIPMENT VARIANTS

3.1

Scope of supply

S
U15 force transducer
S
U15 mounting instructions
S
Test report
S
Machine handles for manipulation in the 500 kN and 1 MN versions
3.2

Accessories

The accessories are not included among the items supplied.
Ordering number
K-CAB-F
1-KAB157-3
1-KAB158-3
3-3312.0382
1-EEK4
1-EEK6
1-EEK8
1-Z4/20KN/ZGUW
1-ZGAM33F
1-ZGAM42F
1-ZGAM72F
1-Z4/20KN/ZGOW
1-ZGIM33F
1-ZGIM42F
1-ZGIM72F
8
Description
Configurable connection cable for connecting the force trans­
ducer to the bridge amplifier. Different lengths are available.
The relevant plug for an HBK amplifier can be fitted on re­
quest.
Connection cable KAB157-3; IP67 (with bayonet locking); 3 m
long, TPE outer sheath; 6 x 0.25 mm
side diameter 6.5 mm
Connection cable KAB158-3; IP54 (with screw locking); 3 m
long, TPE outer sheath; 6 x 0.25 mm
side diameter 6.5 mm
Loose cable socket (bayonet connection)
Ground cable 400 mm long
Ground cable 600 mm long
Ground cable 800 mm long
Knuckle eye, M16 external thread
Knuckle eye, M33 x 2 external thread
Knuckle eye, M42 x 2 external thread
Knuckle eye, M72 x 2 external thread
Knuckle eye, M16 internal thread
Knuckle eye, M33 x 2 internal thread
Knuckle eye, M42 x 2 internal thread
Knuckle eye, M72 x 2 internal thread
2
; free ends, shielded, out­
2
; free ends, shielded, out­
SCOPE OF SUPPLY AND EQUIPMENT VARIANTS
U15
