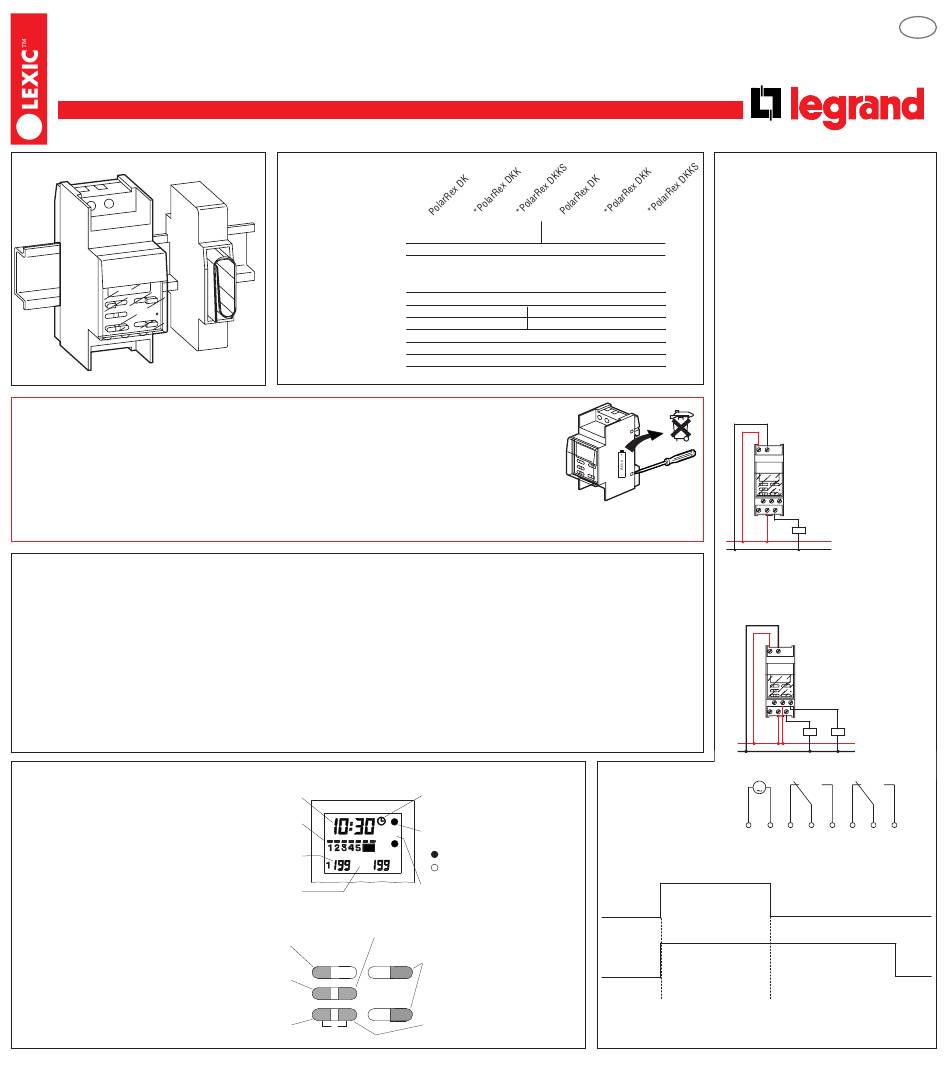

Time switch
PolarRex DK, PolarRex DKK, PolarRex DKKS
NT 29 17 67 01
Safety notes
• Installation of these products should only be undertaken by a qualified electrician.
• The oprerational and electrical safety is only guaranteed, if the product is installed using its proper accessories,
in a position as specified in the installation instructions.
• Any interference with the product makes the guarantee void.
• This product contains a battery, which can be dangerous for the environment and has to be disposed of separately.
The product has to be disassembled and the battery has to be removed from the printed circuit board.
• If the time switch is mounted near equipment where heat produced raises the local ambient above 55°C. Then a space
should be put between the time switch and the equipment (e.g.
Function
The PolarRex D is a 1 or 2 channel electronic defrost and impulse weekly time switch. The impulse length (defrost duration) is to be set once. Input
of max 14 start times is possible. They can be repeated on every day of the week or on any day(s) of your choice (block program).
The max 14 start times may be distributed at will on any day of the week. Channel 1 and if existing channel 2 run from the start time for the set
impulse duration.
Channel 1 e.g.: defrost time or defrost impulse
(1 st impulse time)
Channel 2 e.g.: fan delay or safety cutout time
(2 nd impulse time)
Due to the important starting current of a compressor, a contactor should be mounted between time switch and compressor.
Application a pulse contact (KI): A PolarRex DKK can be used for this application. Channel 1 must as the pulse contact (minimum time: 1 minute).
2 channel time switch with external control contact (PolarRex DKKS): In this application the external contact affects the operation of the defrost
or impulse cycle. A thermostat is an example of an external contact which could be used. Only when the 230V is present, will the impulse or defrost
cycle be affected. The external contact can shorten the impulse or defrost duration (see diagram).

Presentation

Choose and acknowlegde
Direct selection of set impulse

Technical data

Supply voltage:
Consumption:
Contact rating:
Parallel compensation:
Accuracy:
Terminal capacity:
Program pictures:
Battery reserve:
Storrage ambient:
Working ambient:
1 ⁄ space module code 044 40 or 1 space module code 044 41).
2
Liquid Crystal Display
Actual time or
start time
Actual weekday
1
ie. switching days
Start
6 7 2
Impulsetime
min
Time unit for
impulse length
Programming Buttons
Selction of test impulse time(s)
the function
Set
1x Test
time(s)
±1h
C
Summer/winter
R
changeover
037 96 *037 98 *037 99 037 78
230V~ 50/60Hz 120V~ 50/60Hz
ca. 0,6W
1 changeover contact 16A 250V~µ cos ϕ = 1
*2 changeover contact 10A 250V~µ cos ϕ = 1
60VA max. 7µF
±2,5s/d
single strand multi strand
2
1 to 4 mm 0,5 to 2,5 mm
196
100h
-10°C bis +60°C
0°C bis +55°C
Symbol for
"time set"
State of output
1 = ON
2
= OFF
1
Symbol for "start time
set"
+ Setting hours, minutes, days
and impulse(s) time(s)
–
Delete a start time
Connection
Prior to connecting the low tension sides to
the controlled equipment make sure that
the adjusted parameters do indeed corre-
*037 85 *037 86 spond to the desired parameter values, so
that disturbances or damage to the appli-
ance controlled equipment are avoided.
The appliance controlled equipment has to
be secured with additional electromagnetic
facilities by all means if a possible distur-
bance of the appliance may lead to a
2 hazardous situation.
PolarRex DK
time range channel 1: 1...199 min
1
6 7 8
3 4 5
L
N
PolarRex DKK
time range channel 1: 1...199 min
time range channel 2: channel 1 + 1...199 min
L
N
M
1 2
Impulse diagram PolarRex DK, PolarRex DKK
set impulse duration
for channel 1 (defrost
chanel 1
time) 1...199 minutes
chanel 2
start time
GB
Operating instructions
®
2
1 2
6 7 8
3 4 5
chanel 1 chanel 2
3 4 5 6 7 8
set impulse duration for
channel 2 (fan delay or
safety cutout time)
1...199 minutes
