Wartungsarbeiten

Maintenance works

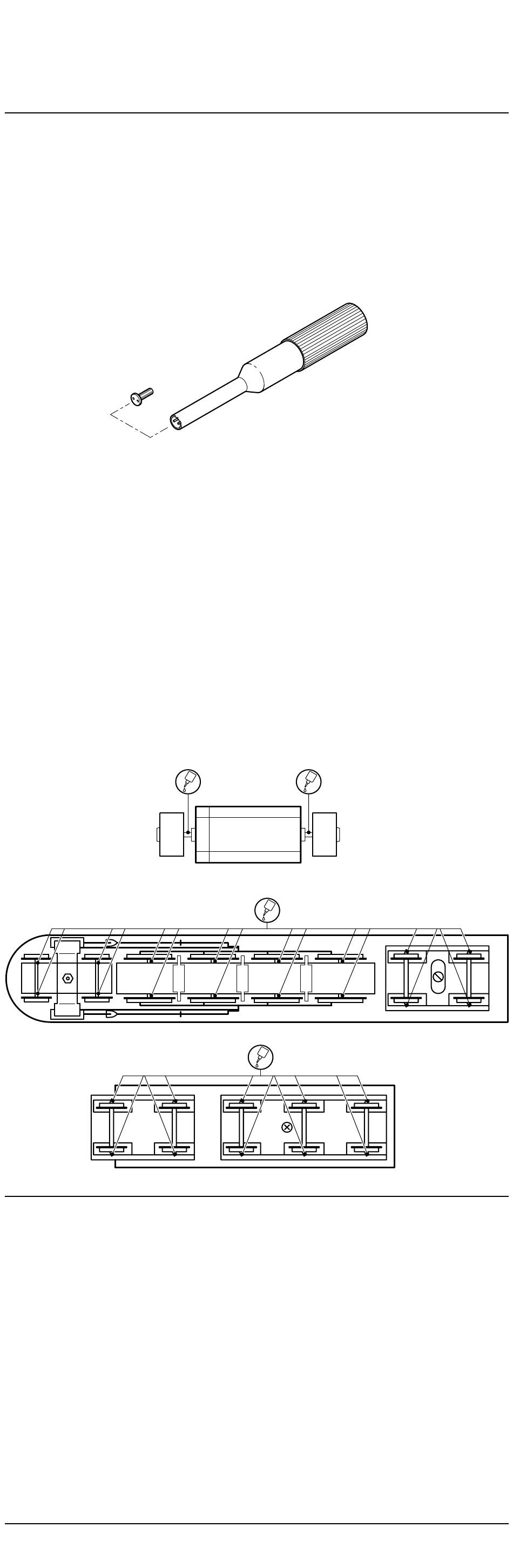

Spezialwerkzeug (Fig. 3)

Mit dem Schraubedreher (1) können die Schrauben (2) der Kuppelstan-
gen gelöst und wieder befestigt werden.
Special tool (Fig. 3)
With the screwdriver (1) you can dismantle and fasten the screws (2) of
the coupling rods.
Fig. 3
2
1
1. Ölen (Fig. 4)
Der Motor und die Lagerstellen der Radsätze können an den ge-
kennzeichneten Punkten sparsam mit Öl der Modellbaubranche geölt
werden. Zum Ölen des Motors ist das Gehäuse abzunehmen, siehe
Seite 10 Punkt 4.
1. Lubricating (Fig. 4)
The engine and the wheelset bearings may be sparingly lubricated at
the marked places with oil used for model making purposes.
In order to lubricate the engine, remove the housing, compare page 12,
item 4.
Fig. 4
Motor
Engine
Lokomotive
Locomotive
Tender
Tender
2. Seuthe Nr. 20 Raucheinsatz montieren (Fig. 5)
Gehäuse abnehmen, siehe Seite 10 Punkt 4.
Raucheinsatz (Pos. 1, BestellNr. 0005069.00) in Hülse (2) einsetzen
und Gehäuse montieren.
2. Mounting the Seuthe No. 20 smoke insert (Fig. 5)
Remove housing, compare page 12, item 4.
Place the smoke insert (Pos. 1, Order no. 0005069.00) in the sleeve (2)
and mount the housing.
8
