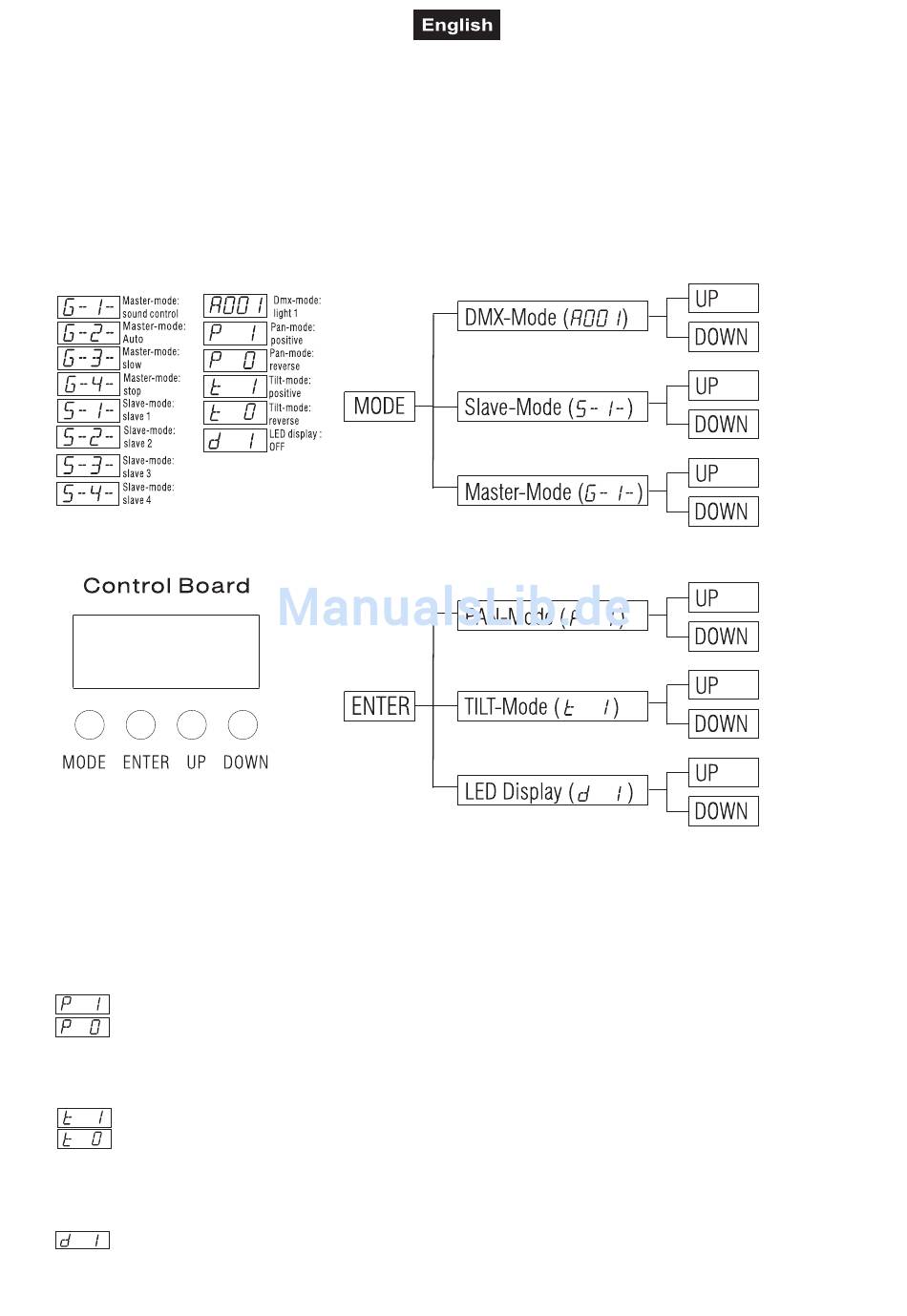

Master/Slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one master-
device.
On the rear panel of the DJ-LED Head Wash TCL you can find an XLR-jack (DMX Out) and an XLR-plug
(DMX In), which can be used for connecting several devices.
Choose the device which is to control the effects. This device then works as master-device and controls all
other slave-devices, which are to be connected to the master-device via a balanced microphone lead.
Connect the DMX OUT-jack with the DMX IN-plug of the next device.
Set the desired Master-mode for the master-device. Set the respective Slave-mode for all slave-devices.
Please note: The function G-4- is only meant for service-purposes. Please do only use this function if you
want to set the unit shortly into standby mode.

Pan Reverse

With this function you can reverse the Pan-movement.

Tilt Reverse

With this function you can reverse the Tilt-movement.

Display close time

With this function you can shut off the LED display.
