VLT® Lift Drive LD 302
Installation Guide
PROPERTY DAMAGE
Protection against motor overload is not active by default. The ETR function provides class 20 motor overload protection. Failure
to set the ETR function means that motor overload protection is not provided and property damage can occur if the motor over-
heats.
-
Enable the ETR function. See the application guide for more information.

1.5 Required Tools

• Lifting aid
• Tape measure
• Drill with assorted bits
• Screwdrivers (Torx, Phillips, slotted)
• Wrench with 7–17 mm sockets
• Socket extensions
• Sheet metal punch and/or pliers
• Wire crimper
1.6 Verifying the Shipment and the Contents
Make sure that the items supplied and the information on the nameplate located on the exterior of the enclosure match the order.
The type code is used in the fuse table. Write down the type code and serial number for future reference.
1
2
3
4
5

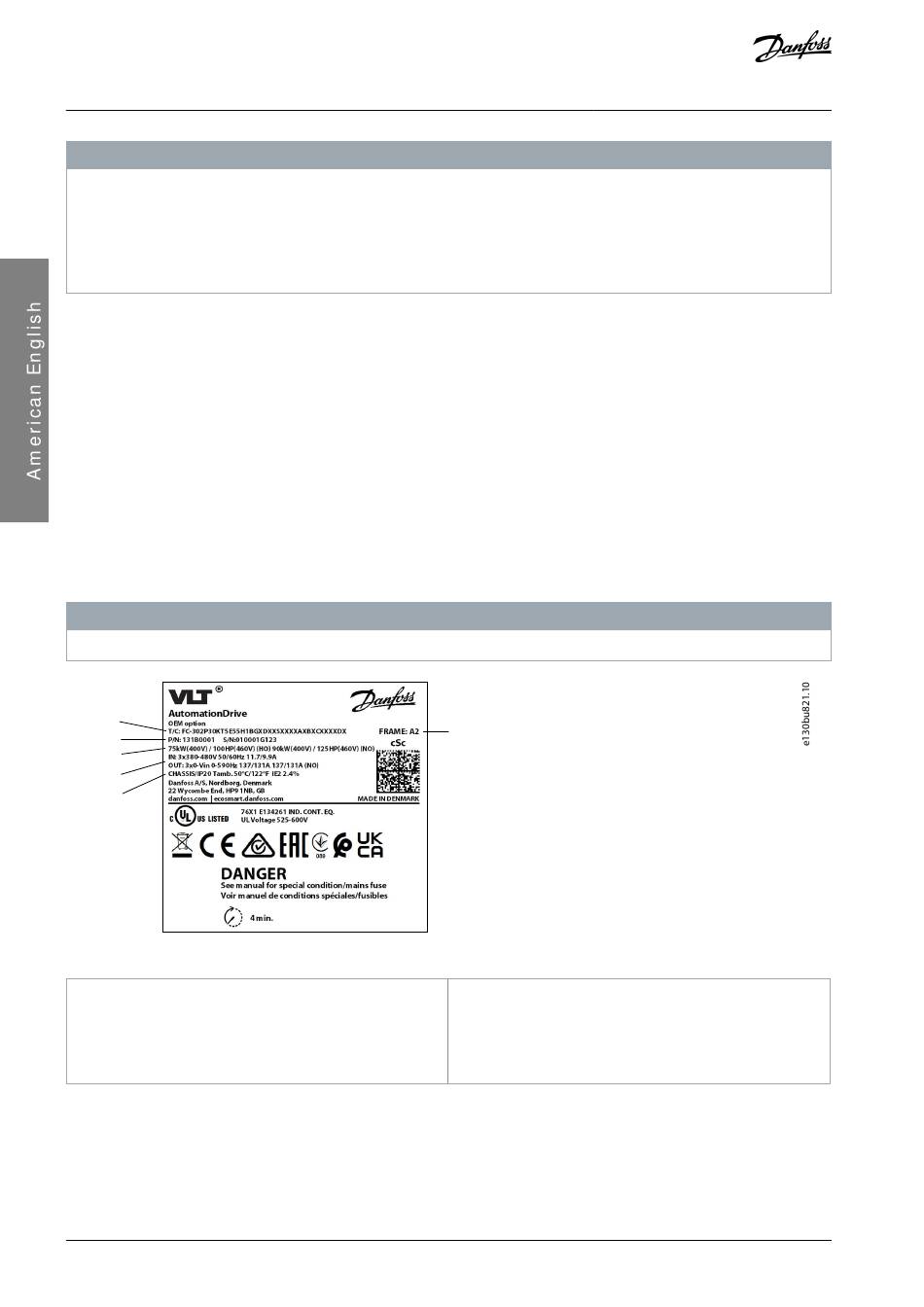

Illustration 1: Example of the Nameplate
1 Type code
2 Part number and serial number
3 Power rating

1.7 EMC-compliant Installation

For more information, refer to the product-specific operating guide.
• Use shielded cables for motor (unshielded cables in metal conduit are acceptable), brake, DC, and control wiring.
• Ensure that motor, brake, and DC cables are as short as possible to reduce the interference level from the entire system. Provide
a minimum space of 200 mm (7.9 in) between mains input, motor cables, and control cables.
8 | Danfoss A/S © 2022.09
N O T I C E
N O T I C E
6
4 Input/output voltage, frequency, and current
5 Enclosure protection rating
6 Enclosure size
Installation
