Product description

Safety

Device descrip-
tion, housing

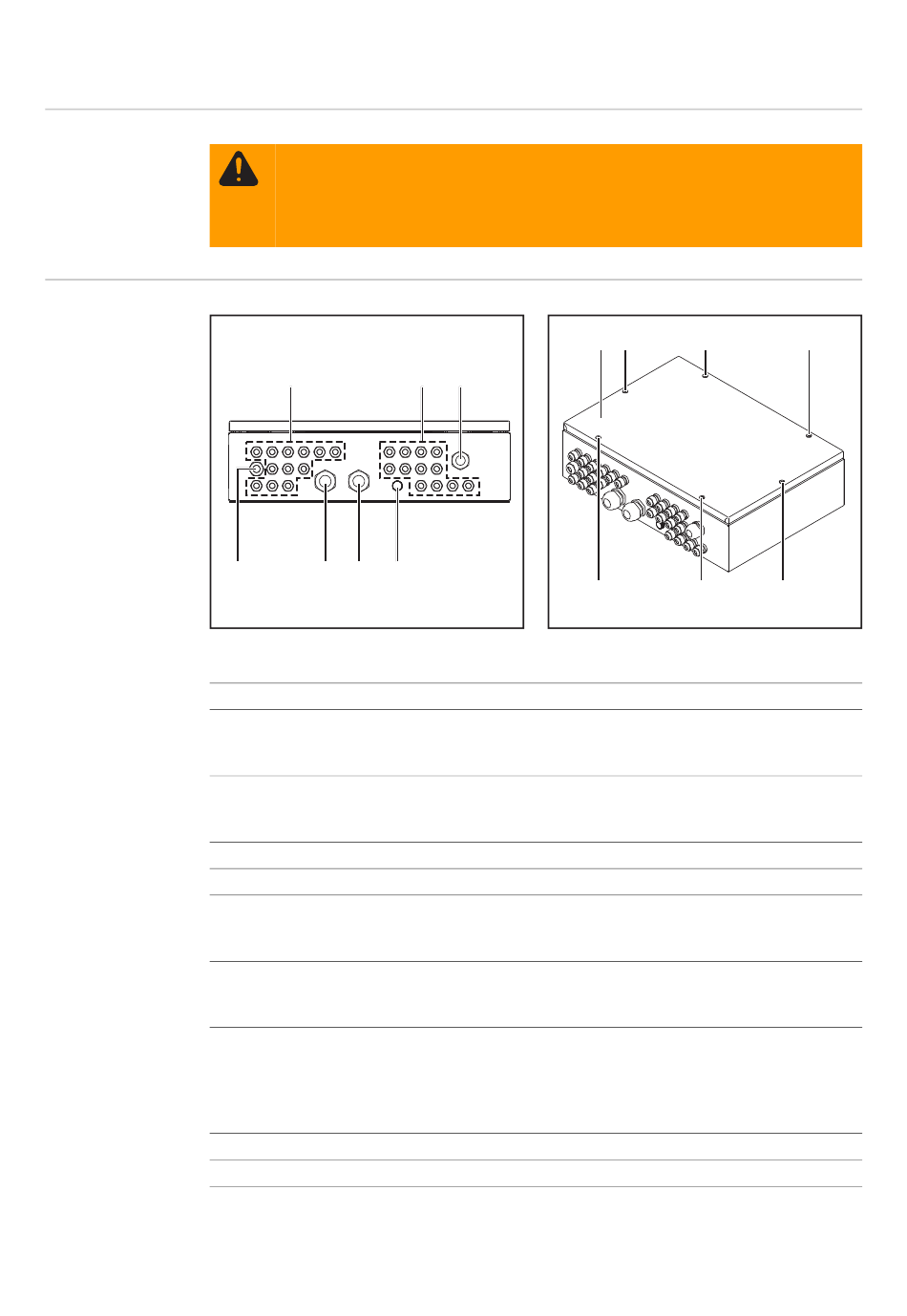

Fronius DC Box 60/12 - front view
Item
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
IMPORTANT! Metric screw joints and threaded plugs are not installed on the Fronius DC
Box 60/12 when delivered. They are just included in the scope of supply.
44
WARNING! Operating the device incorrectly can cause serious injury and dam-
age. Do not use the functions described until you have thoroughly read and un-
derstood the following documents:
- these operating instructions
- all operating instructions for system components, especially the safety rules
(1)
(7) (6) (5) (4)
Description
Cable input for M16 metric screw joints
(for DC cable 'IN')
Cable diameter 3 - 7 mm
Cable input for M16 metric screw joints
(for DC cable 'IN')
Cable diameter 3 - 7 mm
M25 metric screw joint
Pressure compensation membrane
Cable input for M32 metric screw joint
(for DC cable 'OUT')
Cable diameter 11 - 21 mm
Cable input for M32 metric screw joint
(for DC cable 'OUT')
Cable diameter 11 - 21 mm
Cable input for M20 metric screw joint
(for ground cable)
Cable diameter 8 - 13 mm
Only required when using the optional overvoltage protection.
Cover
Cover screw
(2) (3)
Fronius DC Box 60/12 - oblique view from above
(8) (9) (9)
(9) (9)
(9)
(9)
