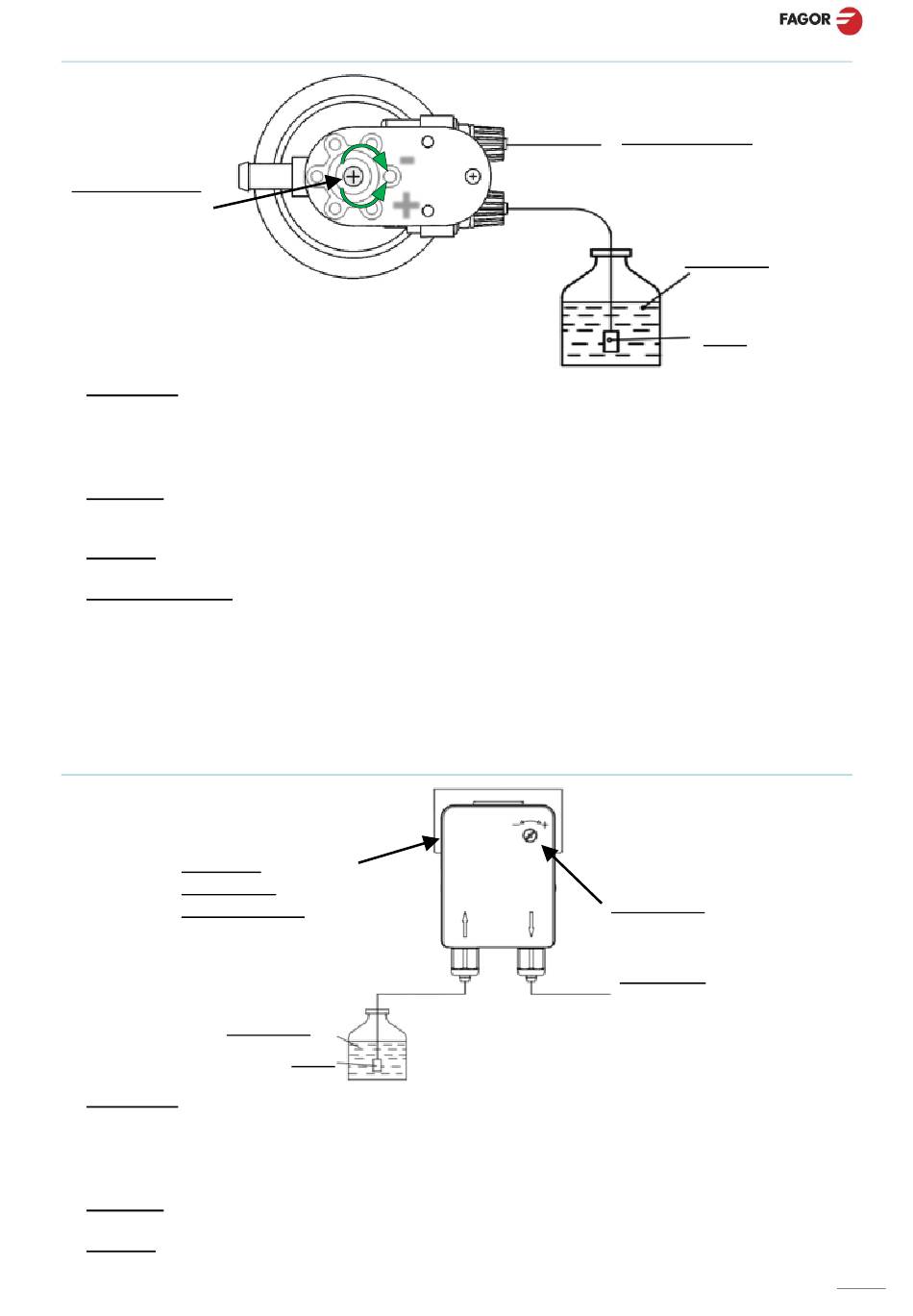

Hydraulic rinse aid dispenser (MOD "A")

4.7.1
Regulation line
(Adjustment
screw /
Load button)
Installation: The water rinse aid dispenser is pre-installed in the appliance. First, the end of the blue tube
with filter located at the back of your machine and marked «Abrillantador / Rinse Aid» must be inserted
inside the rinse container.
The tubes are see-through to allow you to check that the chemicals are correctly dispensed.
To access the dispensers and adjust them, remove the lower front cover of the appliance.
Operation: To operate, this dispenser uses the rinse pressure of the dishwasher, and therefore does not
need an electrical connection. In each rinse cycle, it dispenses between 0 and 4.5 cm
to the adjustment made.
Loading: The dispenser has a button on the front for the initial loading of the dispenser, on the adjustment
screw itself. Press the adjustment screw several times until the system is fully loaded.
Adjusting the dose: To ensure that the wash is optimised from the start, the dispenser should be adjusted
when the machine is installed. The setting should be adjusted according to the type of rinse aid and the
water hardness. Turn the adjustment screw until the required dose is obtained (turn clockwise to reduce
and anticlockwise to increase the dose).
A quantity of rinse aid is injected into each rinse cycle. This quantity can be adjusted between 0 and 4.5
cm 3 , equivalent to the movement of rinse aid in the intake tube of between 0 and 40 cm in length.
For each turn of the screw, the dose changes by approximately 4.4 cm of the length of the intake tube (0.5
3
cm /turn).

Electric rinse aid dispenser (MOD "B", MOD "C")

4.7.2
Electrical
connection
(Rear section)
Rinse Aid
Installation: The electric rinse aid dispenser is pre-installed in the appliance. First, the end of the blue tube
with filter located at the back of your machine and marked «Abrillantador / Rinse Aid» must be inserted
inside the rinse container.
The tubes are see-through to allow you to check that the chemicals are correctly dispensed.
To access the dispensers and adjust them, remove the lower front cover of the appliance.
Operation: This dispenser absorbs and dispenses the rinse aid when the rinse pump is switched on. That
is, when the machine is filling and during the rinse cycle.
Loading: When the appliance is switched on, the loading process takes place automatically while the
machine is filling.
-
+
Filter
Rinse and load
Rinse Aid
Filter
3 of rinse aid according
Regulation
Rinse line
