4.0 INSTALLING THE VENTILATION KIT AFTER INSTALLING
THE STOVE AND SURROUND
Proceed as follows: remove the grate and the ash drawer, loosen the fixing screws with a screwdriver and remove
the lower guard. Then proceed as described above.
5.0 COOLING THE FAN AND THE REMOTE CONTROL BOX
The fan is cooled by the external air intake when the latter is positioned behind or under the stove. In the absence
of an air intake, cooling is assured by environmental air, so an opening of at least 120 cm² in the lower part of the
surround must be provided.

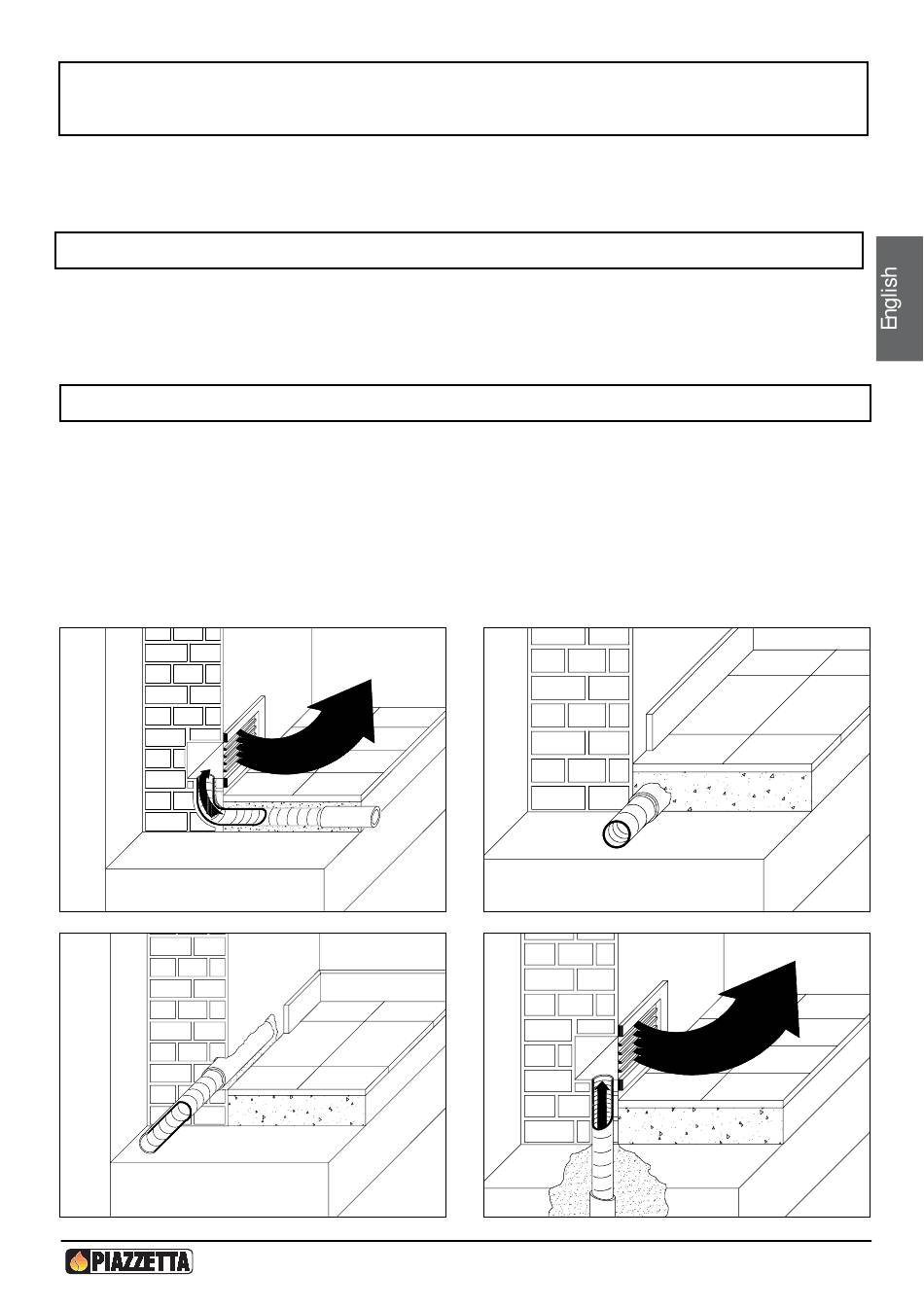

6.0 EXAMPLES OF CONNECTION FOR HOSES
Here are a few examples showing how to connect and arrange the hose for walls and fl oors
For effi cient ducted heat distribution:
1) lag the hose with a 2 cm thick insulation (e.g. mineral fi bre, ceramic fi bre, rock fi bre) to limit heat loss and to
guarantee a suffi ciently warm air temperature.
The insulation must have a specifi c weight equal to or more than 245 kg/m³ with a declared thermal conductivity λ
of no more than 0.035 W/mK.
2) The maximum total length of the hose connected to the fan must not exceed 8 metres.
DT2030168-00
DT2030170-00
H07003370 / DT2000088 - 02
DT2011799-00
DT2011800-00
DT2011492-00
DT2030169-00
DT2030171-00
19
