3.0 INSTALLING THE VENTILATION KIT BEFORE
POSITIONING THE STOVE
Proceed as follows:
- ensure that there is an electric power socket near the
stove.
- Remove the nuts from the screws on the fan fl ange;
put the fan in the lower part of the stove and fi x the
whole assembly using the nuts and washers that have
just been removed. In the 500, 510, 555, 650, 700,
750, 800, 810, 2010 models, the screws for fi xing the
ventilation kit are to be found in the lower part of the
stove: prepare the fan by removing the screws and nuts
and fi x it to the stove, inserting the vibration-isolation
mountings between the two components and using one
of the screws to fasten the eyelet terminal of the yellow-
green earth wire.

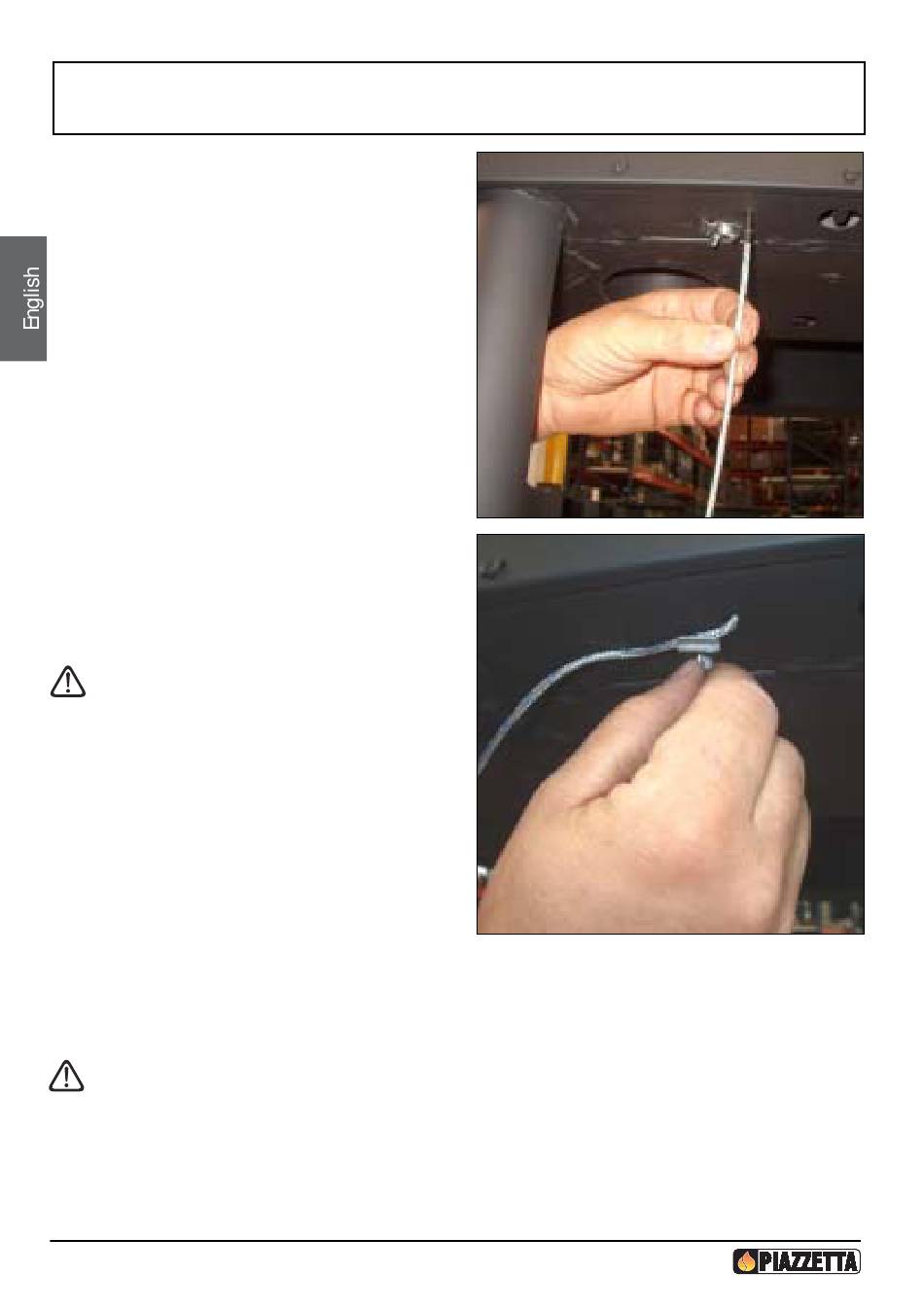

- Unscrew the wing nut from probe-holder bracket
located on the bottom of the stove, insert the bulb of
the PT probe about 30 cm into the probe-holder tube in
the rear part of the fl ue, fasten the probe to the bracket
and tighten all the screws and nuts; in model 510, put
the probe into the space between the fan fl ange and the
bottom of the stove.
If the product is fitted with two motors (e.g.
mod. 600) this step must be repeated.
- Insert the remote-control box plug into the 220V
socket already provided.
- Connect the fan to the hot air outlets using hoses.
The fan is fi tted with a Y-element, but the line can be
split up by using two Y-elements thereby making it
possible to connect up with four outlets.
To send hot air to adjacent rooms, if desired, choose the
shortest route to limit loss of heat. It is advisable to avoid
running the hose along very long routes, and to insulate
it properly. (See instructions enclosed with stove)
Gruppo Piazzetta S.p.A. supplies Ø 75 mm hoses,
air outlet nozzles, Y-elements and hose clamps for
assembly, on request.
It is advisable to keep the remote control box
away from heat sources, such as hot air ducts
or mechanical parts which tend to get hot.
