SOLARWATT Vision 36M glass Montageanleitung Seite 23

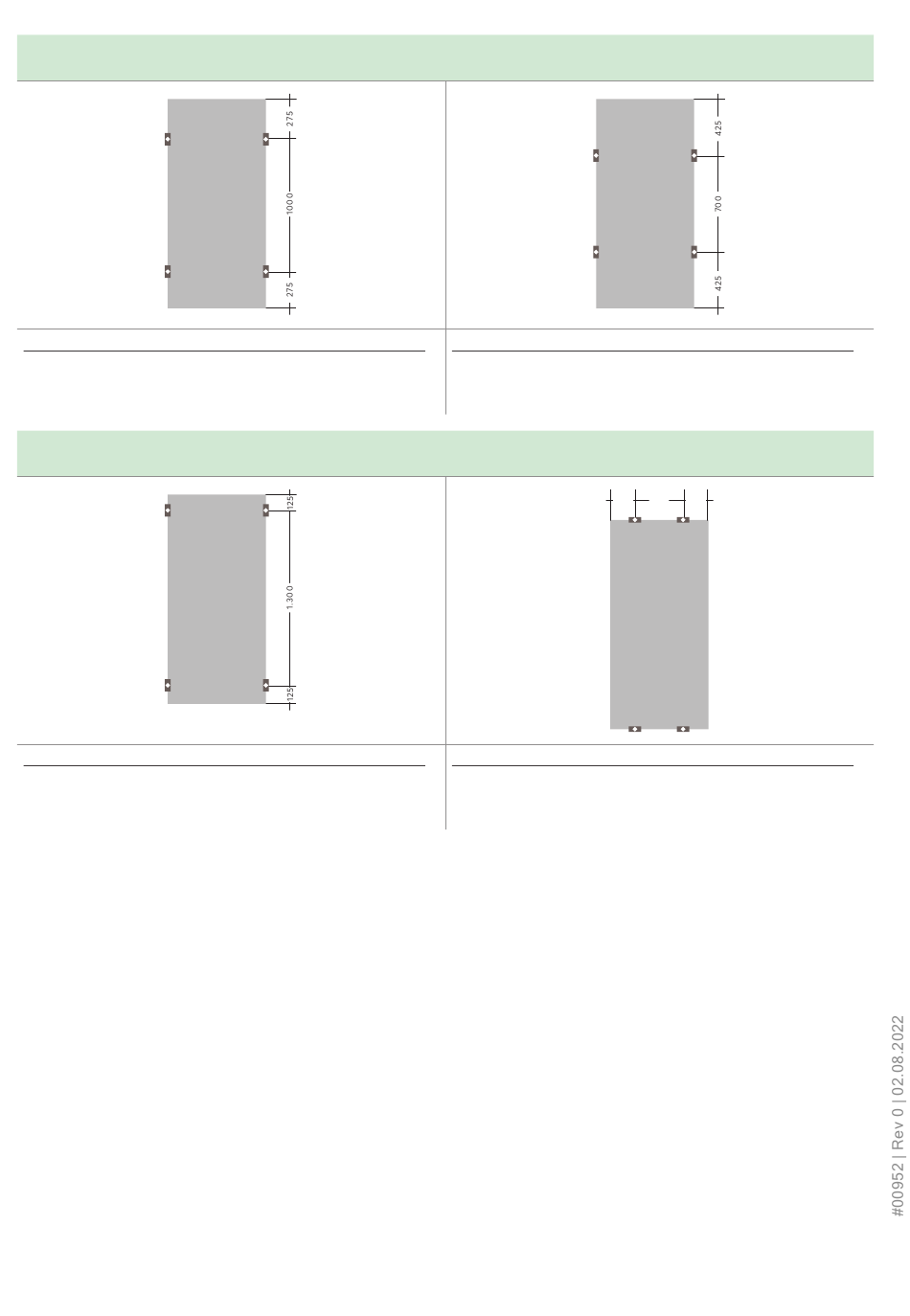

Long side with point clamping (4 points)
NON- LINEAR CALCULATION WITHOUT EVA SHEAR-EFFECT
Glass tension limit σ.d ≤ σ.Rd = 51.3 N/mm²
Max. recommended load qd.ULS ≤ 2.20 kN/m
Long side with point clamping (4 points)
NON- LINEAR CALCULATION WITHOUT EVA SHEAR-EFFECT
Deformation analysis f.max ≤ L/33 ≙ 39 mm
Max. recommended load qd.ULS ≤ 0.90 kN/m
Subject to changes | © 2022 Solarwatt GmbH
NON- LINEAR CALCULATION WITHOUT EVA SHEAR-EFFECT
Deformation analysis f.max ≤ L/33 ≙ 22 mm
Max. recommended load qd.ULS ≤ 1.20 kN/m
2
NON- LINEAR CALCULATION WITHOUT EVA SHEAR-EFFECT
Deformation analysis f.max ≤ L/33 ≙ 47 mm
Max. recommended load qd.ULS ≤ 0.45 kN/m
2
Long side with point clamping (4 points)
Short side with point clamping (4 points)
100 510
2
100
2
23
