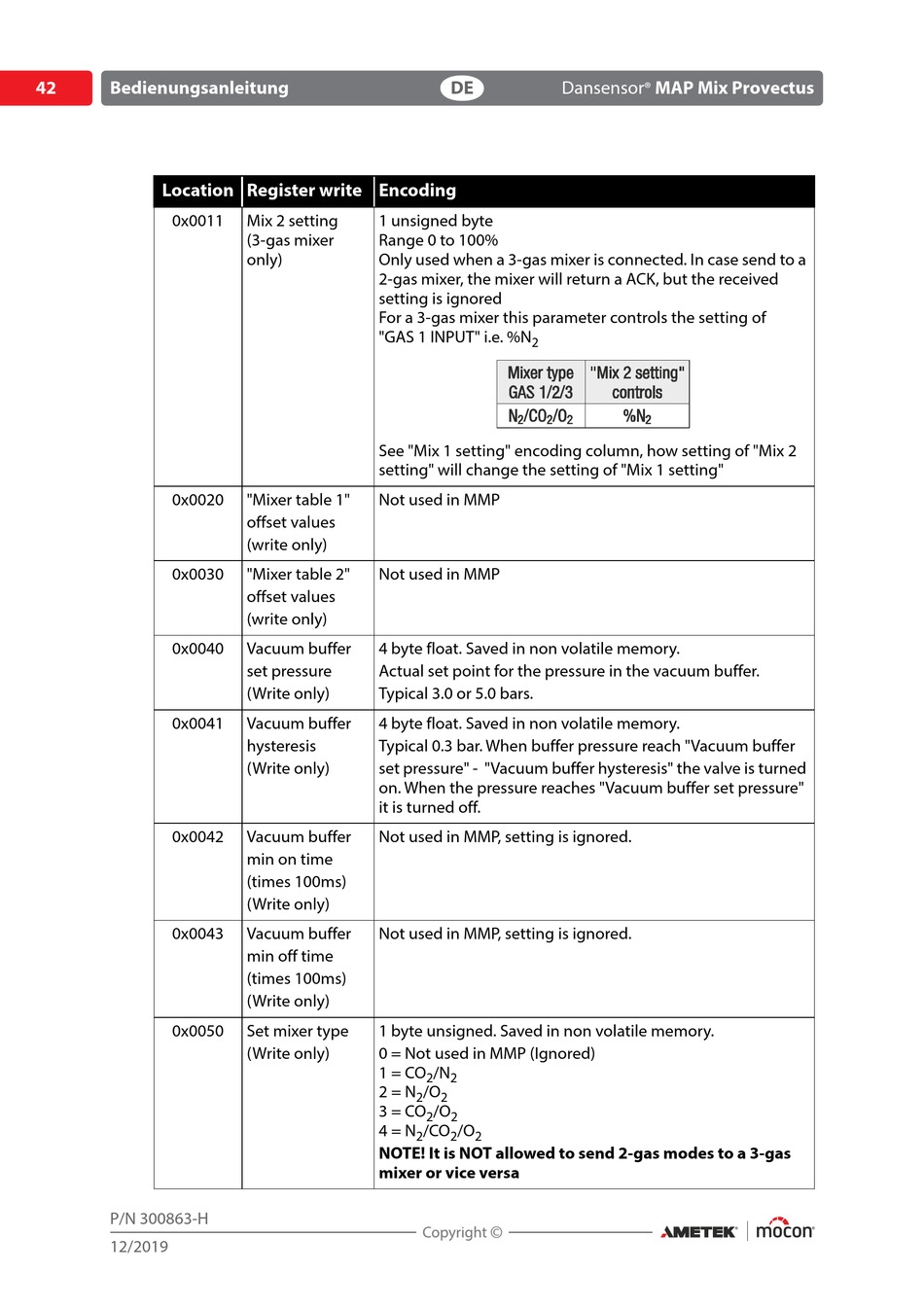

Bedienungsanleitung
Location Register write Encoding
0x0011
0x0020
0x0030
0x0040
0x0041
0x0042
0x0043
0x0050
P/N 300863-H
12/2019
Mix 2 setting
1 unsigned byte
(3-gas mixer
Range 0 to 100%
only)
Only used when a 3-gas mixer is connected. In case send to a
2-gas mixer, the mixer will return a ACK, but the received
setting is ignored
For a 3-gas mixer this parameter controls the setting of
"GAS 1 INPUT" i.e. %N
See "Mix 1 setting" encoding column, how setting of "Mix 2
setting" will change the setting of "Mix 1 setting"
Not used in MMP 
"Mixer table 1"
offset values
(write only)
"Mixer table 2"
Not used in MMP
offset values
(write only)
Vacuum buffer
4 byte float. Saved in non volatile memory.
set pressure
Actual set point for the pressure in the vacuum buffer.
(Write only)
Typical 3.0 or 5.0 bars.
Vacuum buffer
4 byte float. Saved in non volatile memory.
hysteresis
Typical 0.3 bar. When buffer pressure reach "Vacuum buffer
(Write only)
set pressure" - "Vacuum buffer hysteresis" the valve is turned
on. When the pressure reaches "Vacuum buffer set pressure"
it is turned off.
Vacuum buffer
Not used in MMP, setting is ignored.
min on time
(times 100ms)
(Write only)
Vacuum buffer
Not used in MMP, setting is ignored.
min off time
(times 100ms)
(Write only)
Set mixer type
1 byte unsigned. Saved in non volatile memory.
(Write only)
0 = Not used in MMP (Ignored)
1 = CO
2 = N
2
3 = CO
4 = N
2
NOTE! It is NOT allowed to send 2-gas modes to a 3-gas
mixer or vice versa
DE
Dansensor
2
/N
2
2
/O
2
/O
2
2
/CO
/O
2
2
MAP Mix Provectus
®
