ESX VISION ANDROID Serie Installationsanleitung Seite 6

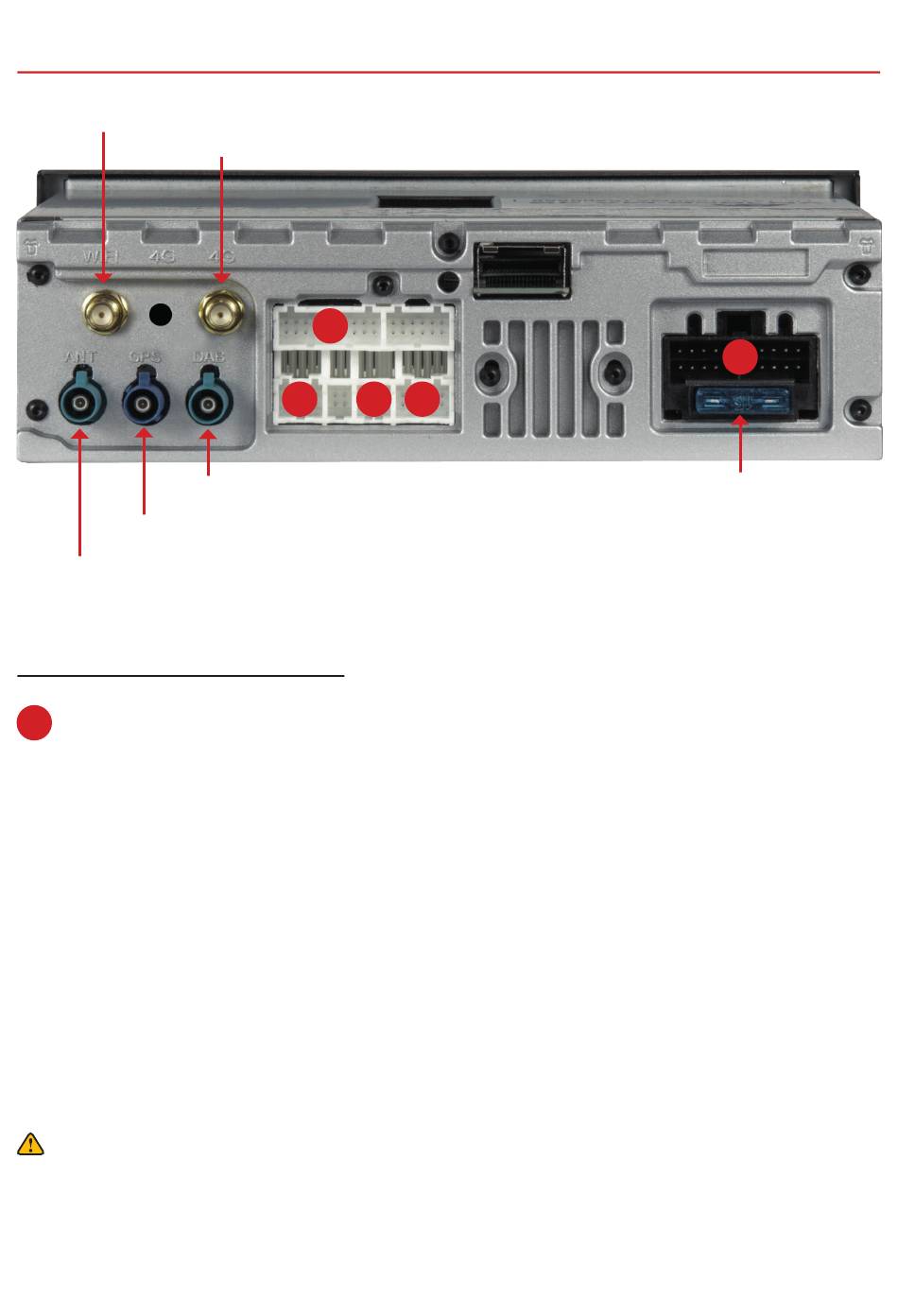

CONNECTION
WiFi antenna
GPS antenna
Radio antenna
of the vehicle
System connection assignment
A
ISO system cable set
Cable brown (BRAKE):
Cable pink (BACK):
Cable orange/gray (KEY1):
Cable brown/black (KEY2):
Cable black (GND):
Cable blue (AMP CONT):
NOTE:
The handbrake signal must be connected to the enclosed cable. When the handbrake is
applied, the signal must be at ground. According to legal regulations, the device may only
play a DVD or video playback on the main screen when the handbrake is on. The connection
cable must therefore not be permanently connected to ground. While driving, the screen is
switched off to avoid accidents caused by carelessness.
6
4G/LTE antenna
B
D
DAB antenna
Connection for handbrake signal (ground)
Connection for reverse gear signal (+12V)
Connection for steering wheel remote control (left)
Connection for steering wheel remote control (right)
Ground for external devices such as cameras
Turh-on signal for external audio amplifier (+12V)
E C
A
System connection
with device fuse
