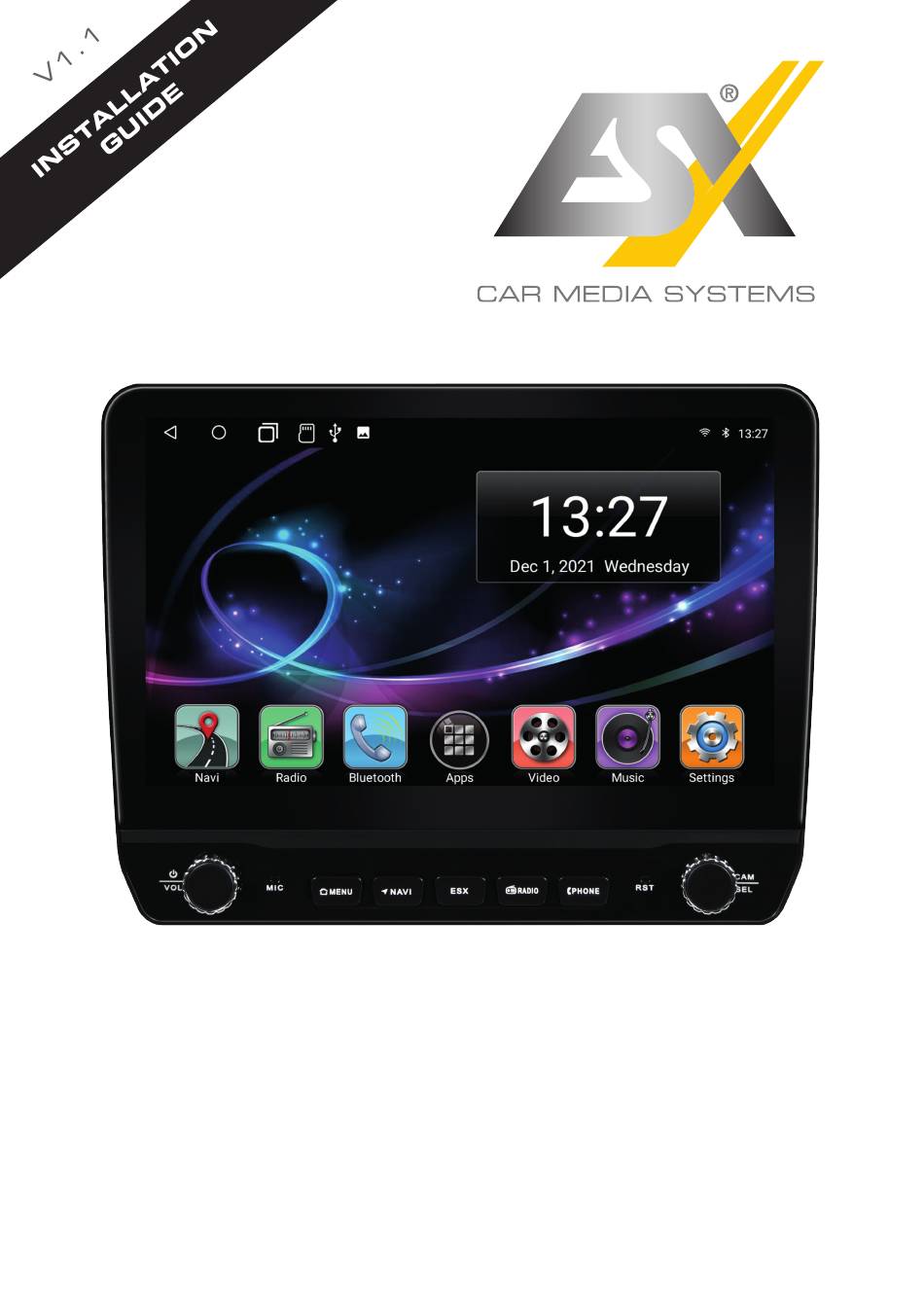

- Seite 1 VN1061-MA-4G SMART NAVICEIVER MOBILE INTERNET READY V I S I O N A N D R O I D S E R I E S ™...
- Seite 2 IMPORTANT NOTES This guide is an aid for the professional installation of the device. Please note the following notes before installation: • Always handle all parts of the device and the components of your vehicle with care. • Under all circumstances observe the regulations of the vehicle manufacturer and do not make any changes to the vehicle which could impair driving safety.
-
Seite 3: Installation Hints
Lay the supplied cable sets and antennas in the vehicle. Please note the information on the next page. Then connect all cable sets, antennas and dongles to the ESX main device as described on page 7. Then plug in the cable plug from the radio slot of the vehicle on the ESX main unit or on its vehicle-specific system cable set. -
Seite 4: Scope Of Delivery
SCOPE OF DELIVERY ITEM FIGURE QUANTITY Main device Monitor ISO system cable set AV cable set 1 (20-pin connector) AV cable set 2 (10-pin connector) USB ports (8-pin connector) 4G/LTE dongle (6-pin connector) - Seite 5 SCOPE OF DELIVERY ITEM FIGURE QUANTITY GPS antenna WIFI antenna DAB antenna 4G/LTE antenna...
- Seite 6 CONNECTION WiFi antenna 4G/LTE antenna System connection DAB antenna with device fuse GPS antenna Radio antenna of the vehicle System connection assignment ISO system cable set Cable brown (BRAKE): Connection for handbrake signal (ground) Cable pink (BACK): Connection for reverse gear signal (+12V) Cable orange/gray (KEY1): Connection for steering wheel remote control (left) Cable brown/black (KEY2):...
- Seite 7 CONNECTION Assignment of AV connections AV cable set 1 (20-pin connector, white) RCA white (FL-OUT): Audio output front/left RCA red (FR-OUT): Audio output front/right RCA white (RL-OUT): Audio output rear/left RCA red (RR-OUT): Audio output rear/right RCA turquoise (SUB-OUT): Audio output Subwoofer RCA yellow (CVBS-OUT1): Video output for external monitor 1 RCA yellow (CVBS-OUT2):...
-
Seite 8: General Installation Instructions
Kleben Sie das Erdungsblatt der Verstärkereinheit auf den Metallteil auf der Frontsäule. GENERAL INSTALLATION INSTRUCTIONS Reinigen Sie die Windschutzscheibe mit auübersicht einem geigneten Reinigungstuch. enne sollte aus Sicherheitsgründen auf der Beifahrerseite GPS antenna rt werden. The GPS antenna must be glued horizontally to the front of the dash- Remove the film on board. -
Seite 9: Assembling The Device
ASSEMBLING THE DEVICE Slide the monitor onto the bracket on the main unit and release the two retaining brackets on the side by sliding them outwards. Plug in the connector of the monitor to the main unit. IMPORTANT NOTE: If the monitor does not work after connecting it to the main device, the connector of the con- necting cable may not be properly engaged. - Seite 10 SETUP THE 4G/LTE INTERNET CONNECTION First lay the two 4G/LTE antennas inside the dashboard towards the windshield, one antenna for the left and one for the right. Ideally, you should stick the antennas to the windshield to ensure optimal recep- tion.
- Seite 11 SETUP THE 4G/LTE INTERNET CONNECTION Then turn on the device to test the 4G/LTE connection. After the device has started, enter After successful entry, the SIM card is your 4-digit PIN code of the SIM card unlocked. If the device is successfully here.
- Seite 12 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de © All rights reserved. Subject to technical changes and errors.
