x4
Z351
Button Head Screw M3x6mm
Inbus-flachkopfschraube M3x6mm
Vis tête ronde M3x6mm
ナベネジ M3x6mm
x2
Z725
Set Screw M4x10mm
Madenschraube M4x10mm
Vis sans tête m4x10mm
イモネジM4x10mm
x2
Z700
Set Screw M3x3mm
Madenschraube M3x3mm
Vis sans tête M3x3mm
イモネジM3x3mm
x4
100558
Button Head Screw M3x4mm
Flachkopfschraube M3x4mm
Vis tête ronde M3x4mm
ナベネジ M3x4mm
x2
94388
Cap Head Screw M3x16mm
Inbusschraube M3x16mm
Vis tête cylindrique M3x16mm
キャ ップネジ M3x16mm
x2
94675
Cap Head Screw M3.5x14mm
Inbusschraube M3.5x14mm
Vis tête cylindrique M3.5x14mm
キャ ップネジ M3.5x14mm
94677
Cap Head Screw M3.5x42mm
Inbusschraube M3.5x42mm
Vis tête cylindrique M3.5x42mm
キャ ップネジ M3.5x42mm
x4
Z224
Washer M3x8mm
Unterlagscheibe M3x8mm
Rondelle M3x8mm
100558
ワッシャーM3x8mm
67800-1 HB D8T.indd 27
All manuals and user guides at all-guides.com
31
D 09

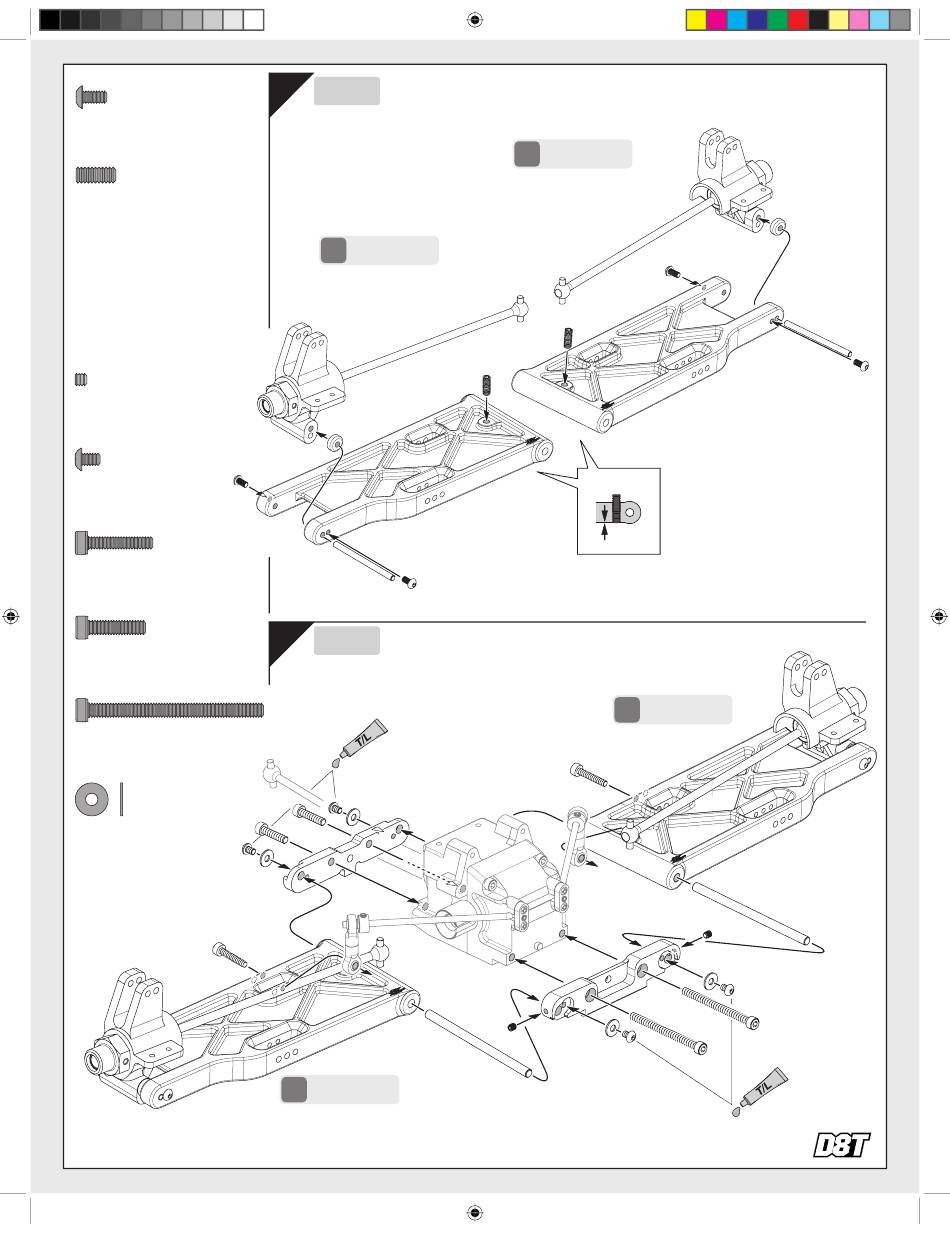

Rear Suspension Arm Assembly
Montage der hinteren Schwingen
L
Left
Gauche
Links
左
67514
Z351
67418
Z351
32
D 10
Rear Suspension Arm Assembly
Montage der hinteren Schwingen
x2
100558
94675
Z224
94675
Z224
67380
94388
L
Left
Gauche
Links
左
Montage du bras de suspension arrière
リアサスペンションの組み立て
R
Right
Droite
Rechts
右
Z725
Z725
Z725
67809
Montage du bras de suspension arrière
リアサスペンションの組み立て
R
94388
67379
Z700
Z224
67417
100558
27
67514
Z351
67418
67809
Right
Droite
Rechts
右
67417
Z700
Z224
100558
94677
94677
