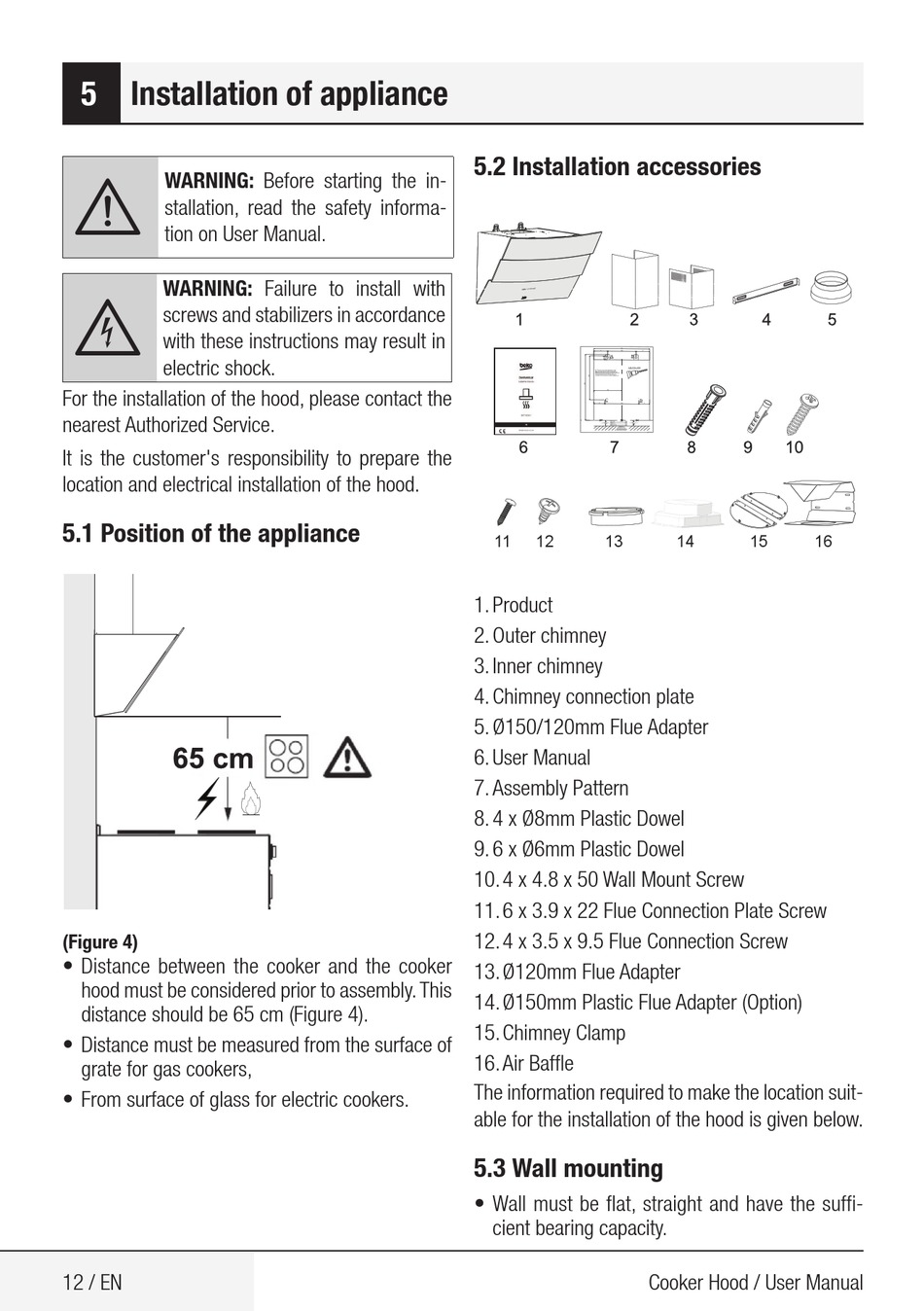

5 Installation of appliance
A
WARNING: Before starting the in-
stallation, read the safety informa-
tion on User Manual.
WARNING: Failure to install with
B
screws and stabilizers in accordance
with these instructions may result in
electric shock.
For the installation of the hood, please contact the
nearest Authorized Service.
It is the customer's responsibility to prepare the
location and electrical installation of the hood.
5.1 Position of the appliance
(Figure 4)
• Distance between the cooker and the cooker
hood must be considered prior to assembly. This
distance should be 65 cm (Figure 4).
• Distance must be measured from the surface of
grate for gas cookers,
• From surface of glass for electric cookers.
12 / EN

5.2 Installation accessories

11 12 13
1. Product
2. Outer chimney
3. Inner chimney
4. Chimney connection plate
5. Ø150/120mm Flue Adapter
6. User Manual
7. Assembly Pattern
8. 4 x Ø8mm Plastic Dowel
9. 6 x Ø6mm Plastic Dowel
10. 4 x 4.8 x 50 Wall Mount Screw
11. 6 x 3.9 x 22 Flue Connection Plate Screw
12. 4 x 3.5 x 9.5 Flue Connection Screw
13. Ø120mm Flue Adapter
14. Ø150mm Plastic Flue Adapter (Option)
15. Chimney Clamp
16. Air Baffle
The information required to make the location suit-
able for the installation of the hood is given below.

5.3 Wall mounting

• Wall must be flat, straight and have the suffi-
cient bearing capacity.
Cooker Hood / User Manual
14 15 16
