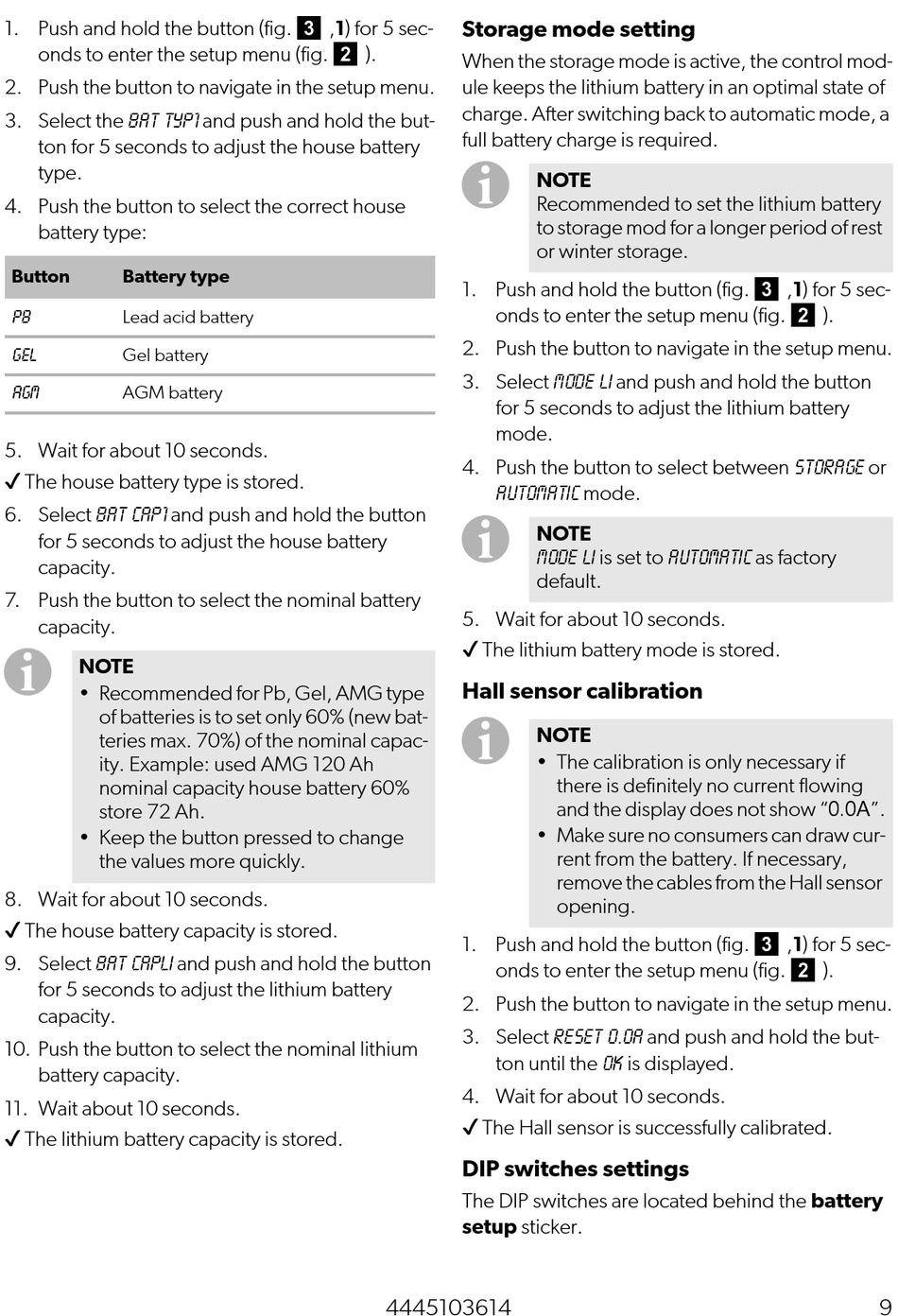

1. Push and hold the button (fig. 3 ,1) for 5 sec-
onds to enter the setup menu (fig. 2 ).
2. Push the button to navigate in the setup menu.
3. Select the Bat Typ1 and push and hold the but-
ton for 5 seconds to adjust the house battery
type.
4. Push the button to select the correct house
battery type:
Button Battery type
Pb
Lead acid battery
Gel
Gel battery
AGM
AGM battery
5. Wait for about 10 seconds.
✔ The house battery type is stored.
6. Select Bat cap1 and push and hold the button
for 5 seconds to adjust the house battery
capacity.
7. Push the button to select the nominal battery
capacity.
I
NOTE
• Recommended for Pb, Gel, AMG type
of batteries is to set only 60% (new bat-
teries max. 70%) of the nominal capac-
ity. Example: used AMG 120 Ah
nominal capacity house battery 60%
store 72 Ah.
• Keep the button pressed to change
the values more quickly.
8. Wait for about 10 seconds.
✔ The house battery capacity is stored.
9. Select Bat capLi and push and hold the button
for 5 seconds to adjust the lithium battery
capacity.
10. Push the button to select the nominal lithium
battery capacity.
11. Wait about 10 seconds.
✔ The lithium battery capacity is stored.
Storage mode setting
When the storage mode is active, the control mod-
ule keeps the lithium battery in an optimal state of
charge. After switching back to automatic mode, a
full battery charge is required.
I
NOTE
Recommended to set the lithium battery
to storage mod for a longer period of rest
or winter storage.
1. Push and hold the button (fig. 3 ,1) for 5 sec-
onds to enter the setup menu (fig. 2 ).
2. Push the button to navigate in the setup menu.
3. Select Mode Li and push and hold the button
for 5 seconds to adjust the lithium battery
mode.
4. Push the button to select between storage or
automatic mode.
I
NOTE
Mode li is set to Automatic as factory
default.
5. Wait for about 10 seconds.
✔ The lithium battery mode is stored.
Hall sensor calibration
I
NOTE
• The calibration is only necessary if
• Make sure no consumers can draw cur-
1. Push and hold the button (fig. 3 ,1) for 5 sec-
onds to enter the setup menu (fig. 2 ).
2. Push the button to navigate in the setup menu.
3. Select RESET 0.0A and push and hold the but-
ton until the OK is displayed.
4. Wait for about 10 seconds.
✔ The Hall sensor is successfully calibrated.
DIP switches settings
The DIP switches are located behind the battery
setup sticker.
4445103614
there is definitely no current flowing
and the display does not show "0.0A".
rent from the battery. If necessary,
remove the cables from the Hall sensor
opening.
