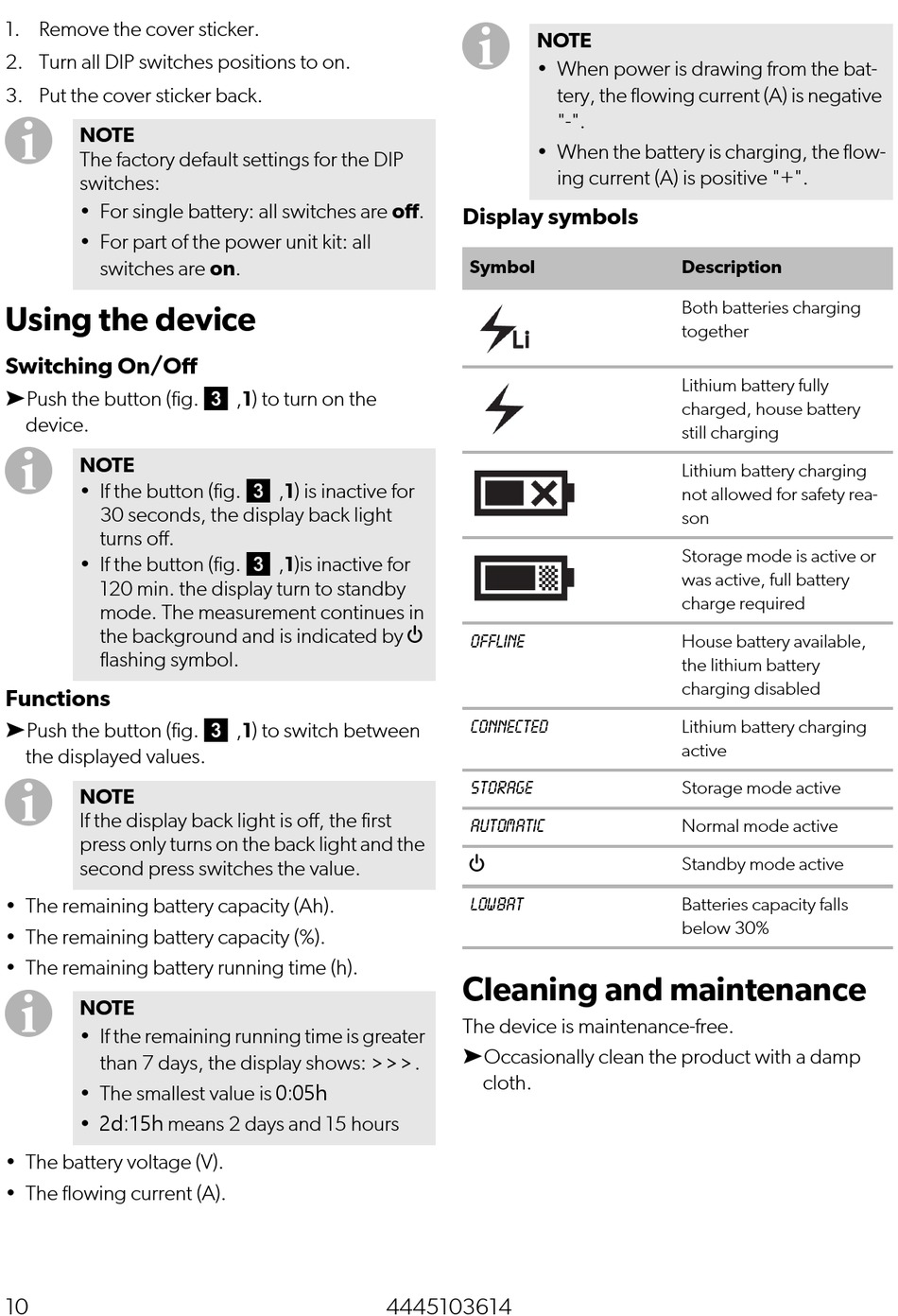

1. Remove the cover sticker.
2. Turn all DIP switches positions to on.
3. Put the cover sticker back.
I
NOTE
The factory default settings for the DIP
switches:
• For single battery: all switches are off.
• For part of the power unit kit: all
switches are on.
Using the device
Switching On/Off
➤Push the button (fig. 3 ,1) to turn on the
device.
I
NOTE
• If the button (fig. 3 ,1) is inactive for
30 seconds, the display back light
turns off.
• If the button (fig. 3 ,1)is inactive for
120 min. the display turn to standby
mode. The measurement continues in
the background and is indicated by P
flashing symbol.
Functions
➤Push the button (fig. 3 ,1) to switch between
the displayed values.
I
NOTE
If the display back light is off, the first
press only turns on the back light and the
second press switches the value.
• The remaining battery capacity (Ah).
• The remaining battery capacity (%).
• The remaining battery running time (h).
I
NOTE
• If the remaining running time is greater
than 7 days, the display shows: >>>.
• The smallest value is 0:05h
• 2d:15h means 2 days and 15 hours
• The battery voltage (V).
• The flowing current (A).
10
I
NOTE
• When power is drawing from the bat-
• When the battery is charging, the flow-
Display symbols
Symbol
OFFLINE
Connected
STORAGE
AUTOMATIC
P
Lowbat
Cleaning and maintenance
The device is maintenance-free.
➤Occasionally clean the product with a damp
cloth.
4445103614
tery, the flowing current (A) is negative
"-".
ing current (A) is positive "+".
Description
Both batteries charging
together
Lithium battery fully
charged, house battery
still charging
Lithium battery charging
not allowed for safety rea-
son
Storage mode is active or
was active, full battery
charge required
House battery available,
the lithium battery
charging disabled
Lithium battery charging
active
Storage mode active
Normal mode active
Standby mode active
Batteries capacity falls
below 30%
