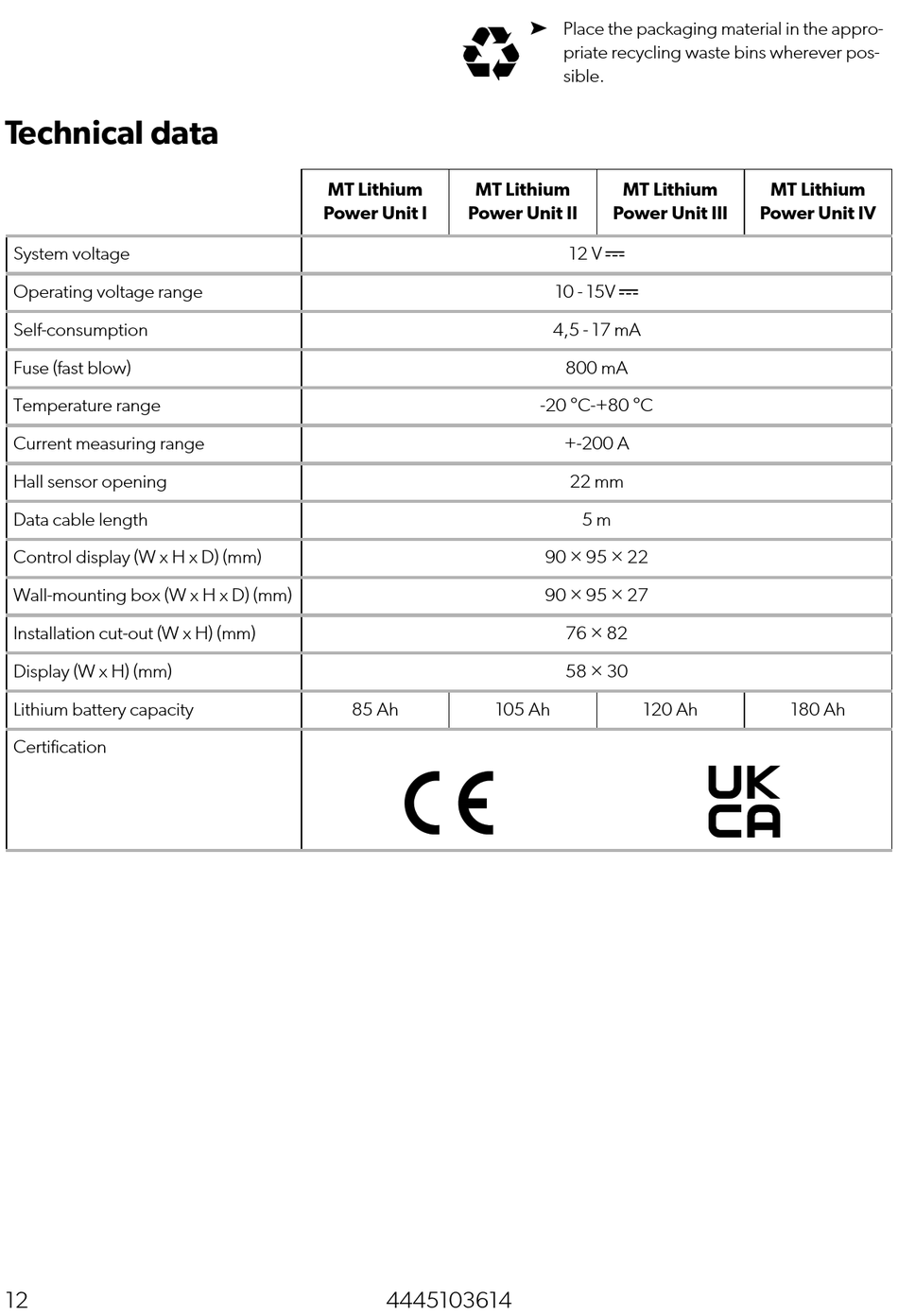

Technical data

System voltage
Operating voltage range
Self-consumption
Fuse (fast blow)
Temperature range
Current measuring range
Hall sensor opening
Data cable length
Control display (W x H x D) (mm)
Wall-mounting box (W x H x D) (mm)
Installation cut-out (W x H) (mm)
Display (W x H) (mm)
Lithium battery capacity
Certification
12
MT Lithium MT Lithium
Power Unit I Power Unit II
85 Ah
4445103614
➤ Place the packaging material in the appro-
priate recycling waste bins wherever pos-
sible.
MT Lithium
Power Unit III
12 V g
10 - 15V g
4,5 - 17 mA
800 mA
-20 °C-+80 °C
+-200 A
22 mm
5 m
90 × 95 × 22
90 × 95 × 27
76 × 82
58 × 30
105 Ah 120 Ah
MT Lithium
Power Unit IV
180 Ah
