Important!!!
Before using your new DRAGSTER Brushless Controller for the first
time please note the following:
• Please read this manual carefully before using your new CARSON
DRAGSTER Brushless Controller!
• Always make sure that you have the right gear ratio. The vehicle
must not be geared low over a long period.
• Only use original CARSON BL motor.
• Stop driving immediately if the cooling fan fails.
a. Connect the ESC

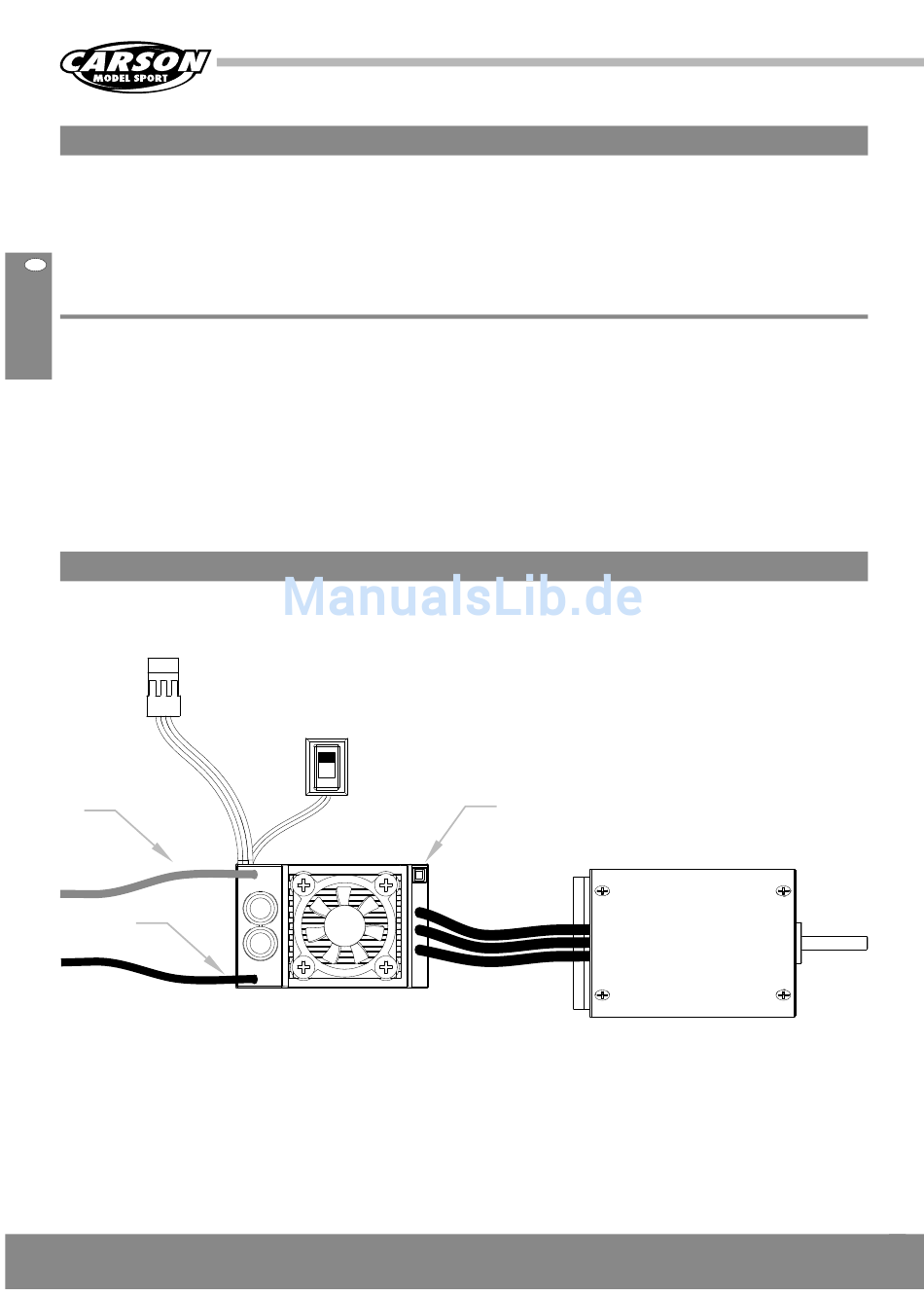

Connect the ESC, motor, receiver, battery according to the following
diagram.
To receiver
red
+
black
To battery
-
10 CARSON DRAGSTER Brushless-Sport „Water resistant Version" • 50 090 6158
ON/OFF switch
Brushless Controller
• Do not connect the battery cable (plus and minus) with reversed
polarity. The guarantee is not valid if a short circuit occurs.
• Select the correct battery type/under-voltage protection (Cut-Off).
• The esc and motor is made for using in wet conditions. But not for
to submerge!
SET-button
Brushless Motor
