b. Throttle Range Setting (Throttle Range Calibration)
In order to make the ESC fit the throttle range, you must calibrate it for
the following cases; otherwise the ESC cannot work properly.
• Begin to use a new ESC;
• Begin to use a new transmitter;
• Change the settings of neutral position of the throttle stick, ATV or
EPA parameters, etc.
Move the throttle stick to the
neutral position.
Press „SET" key, the Green LED
flashes once and motor emits
„Beep" tone.
a) Switch off the ESC, turn on the transmitter, set the direction of
throttle channel to "REV", set the "EPA/ATV" value of throttle channel
to "100%", and disable the "ABS" brake function of your transmitter.
b) Hold the "SET" key and then switch on the ESC, when the red LED
begins to flash, release the key immediately.

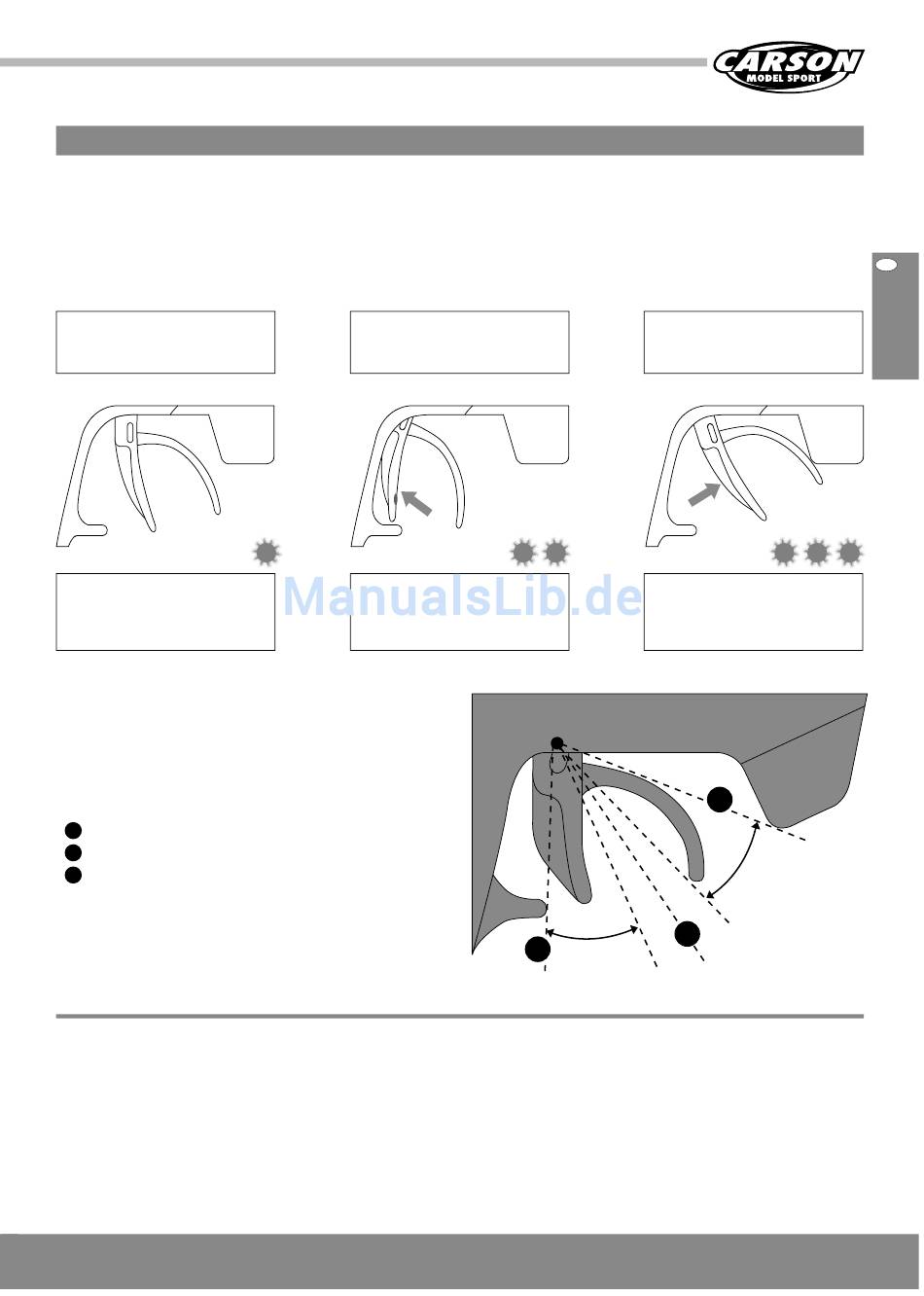

c) Set the THREE points according to the steps shown in the picture.
1
Neutral point
2
End point of forward direction
3
End point of backward direction
d) When the process of calibration is finished, the motor can be
started after 3 seconds.
LED Status in Normal Running
a) In normal use, if the throttle stick is in the neutral range, neither the
red LED nor the green LED lights.
b) The red LED lights when the car is run forward or backward and it
will flash quickly when the car is braking.
CARSON DRAGSTER Brushless-Sport „Water resistant Version" • 50 090 6158
There are 3 points need to be set, they are the top point of "forward",
"backward" and the neutral point.
The following pictures show how to set the throttle range with a
transmitter:
Move the throttle stick to the
end position of forward.
Press „SET" key, the Green LED
flashes twice and motor emits
„Beep-Beep" tone.
2
c) The green LED lights when the throttle stick is moved to the top
point of the forward zone.
Move the throttle stick to the
end position of backward.
Press „SET" key, the Green LED
flashes thrice and motor emits
„Beep-Beep-Beep" tone.
3
Brake and
backward zone
1
Forward
zone
