VEAB CV MQU-Serie Handbuch Seite 22

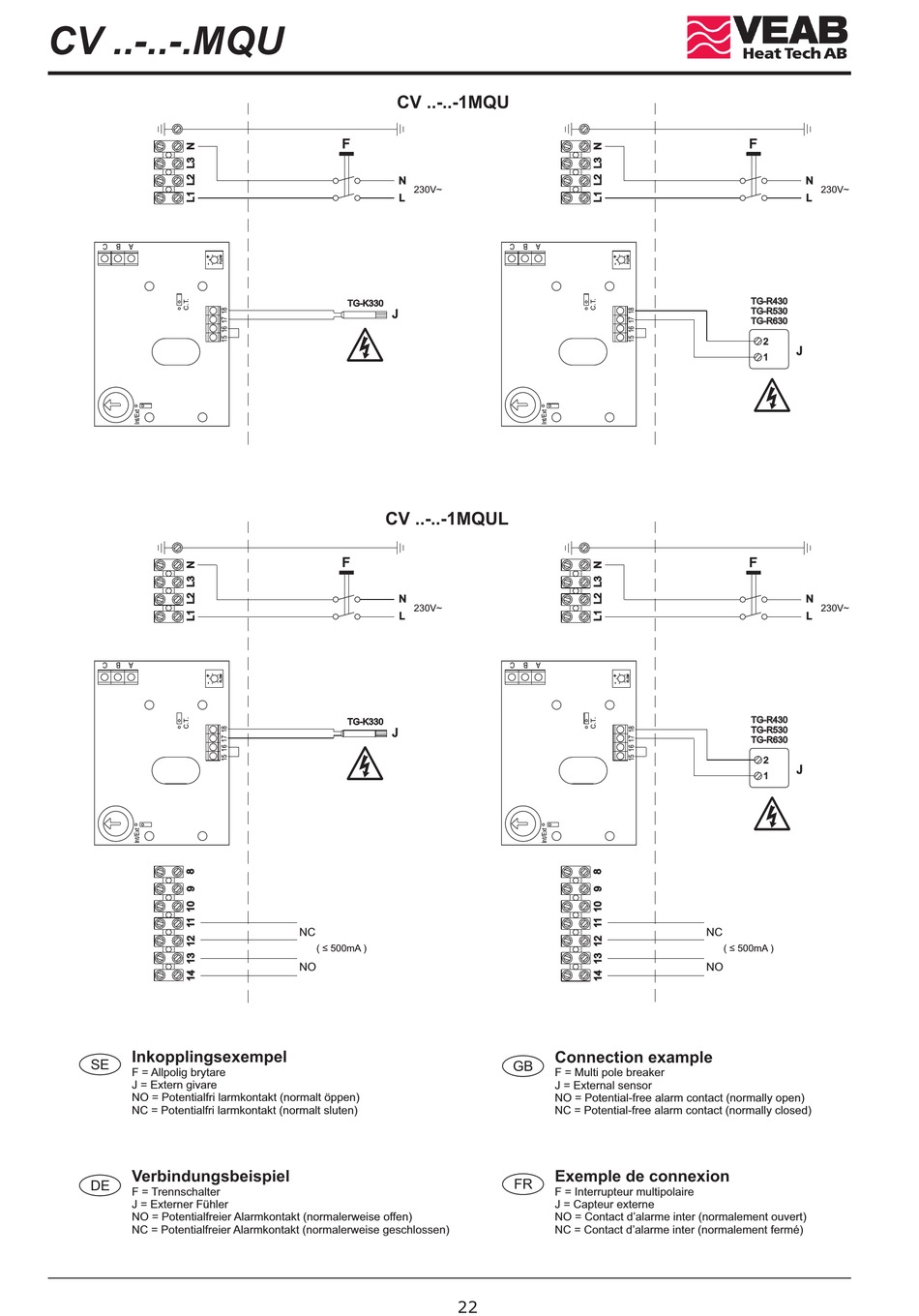

CV ..-..-.MQU
Inkopplingsexempel
SE
F = Allpolig brytare
J = Extern givare
NO = Potentialfri larmkontakt (normalt öppen)
NC = Potentialfri larmkontakt (normalt sluten)
Verbindungsbeispiel
DE
F = Trennschalter
J = Externer Fühler
NO = Potentialfreier Alarmkontakt (normalerweise offen)
NC = Potentialfreier Alarmkontakt (normalerweise geschlossen)
CV ..-..-1MQU
F
N
230V~
L
TG-K330
J
F
CV ..-..-1MQUL
F
N
230V~
L
TG-K330
J
F
NC
( ≤ 500mA )
NO
22
Connection example
GB
F = Multi pole breaker
J = External sensor
NO = Potential-free alarm contact (normally open)
NC = Potential-free alarm contact (normally closed)
Exemple de connexion
FR
F = Interrupteur multipolaire
J = Capteur externe
NO = Contact d'alarme inter (normalement ouvert)
NC = Contact d'alarme inter (normalement fermé)
F
N
230V~
L
TG-R430 TG-R430
TG-R530 TG-R530
TG-R630 TG-R630
2
J
1
F
F
N
230V~
L
TG-R430 TG-R430
TG-R530 TG-R530
TG-R630 TG-R630
2
J
1
F
NC
( ≤ 500mA )
NO
