The work cycle is programmed entirely in self-learning mode. When the operation parameters have been adjusted,
follow the programming instructions below:
1- Release the motor, manually open the gate up to half the required extent of opening, and re-lock the motor.
2- Power up the control unit and check if the LEDs are in the situation shown in paragraph 9.
3- Turn ON dip-switch 6 - the flashing lamp goes on at steady beam to indicate you are in programming stage.
4- Give an opening pulse with one of the connected pulse generators or with the radio-control if already saved. The
first manoeuvre the gate performs must be the closure.
If this does not happen, the control unit must be stopped
operating by doing a "RESET", using the appropriate PIN,
as indicated in Fig. 03. Exchange the wires of the motor
and repeat from point 1.
• Remember to re-locate the "RESET" PIN in its initial
position.
5- When the closure limit-switch has been reached, the gate
pauses for about 2 seconds - when this time has elapsed,
the opening manoeuvre begins.
6- When the opening limit-switch has been reached, the
pause time count begins.
7- When the required time has elapsed, supply another OPEN
pulse, and the gate will begin to close.
8- When the closure limit-switch has been reached,
programming has finished.
9- Turn OFF dip-switch 6: the flashing lamp goes off.
The control unit has two protective fuses, one for the power supply to the accessories, and the other for the board
circuits. The fuse characteristics are indicated in the table below.
FUSE CHARACTERISTICS
F1 Primary power supply 5x20 T10A 250V
11. PROGRAMMING
12. PROTECTIVE FUSES
FUSE
F2
17
CHARACTERISTICS
Power supply to accessories 5x20 T1.6A 250V

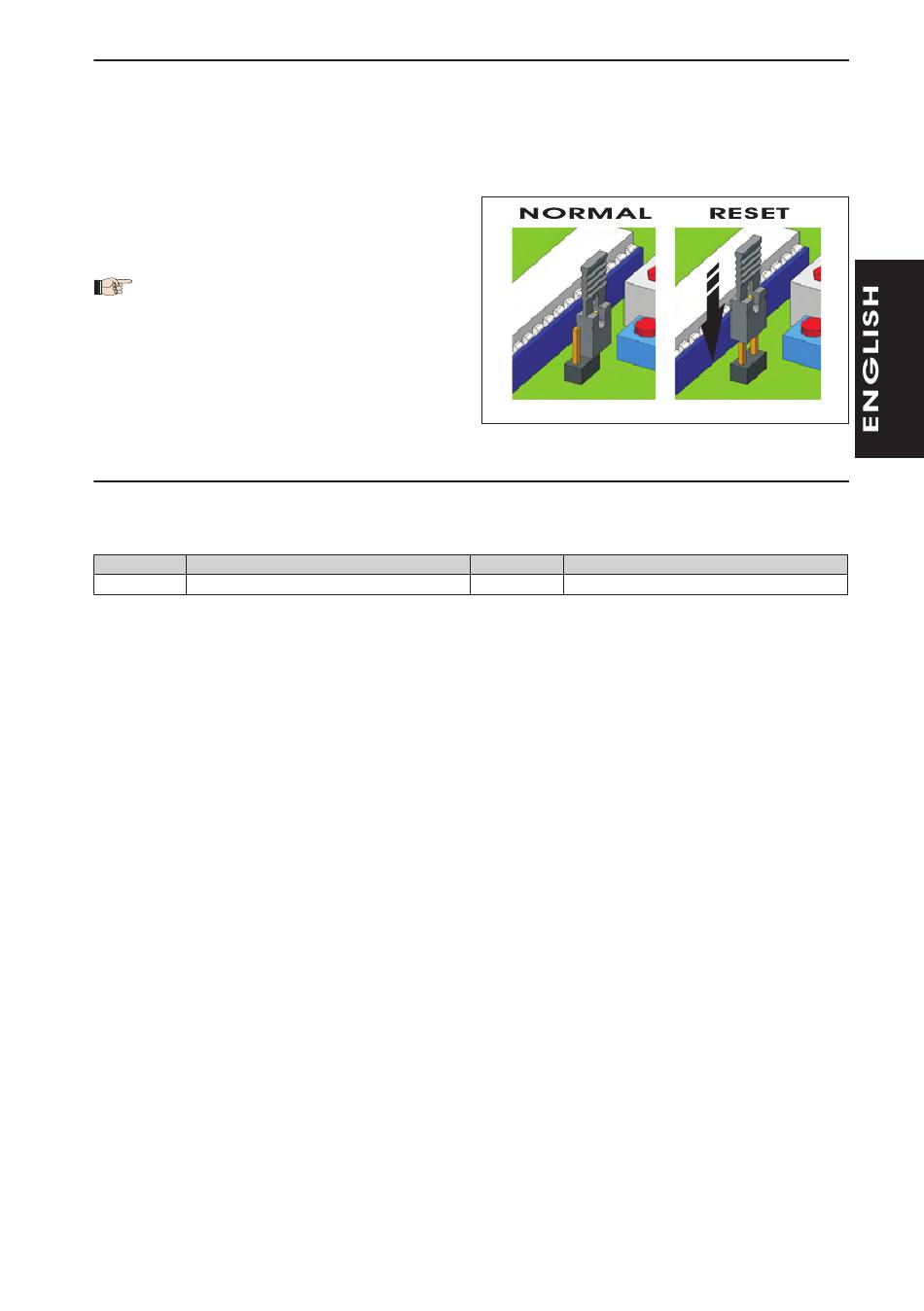

Fig. 03
