Preflight check
transmitter and model setup

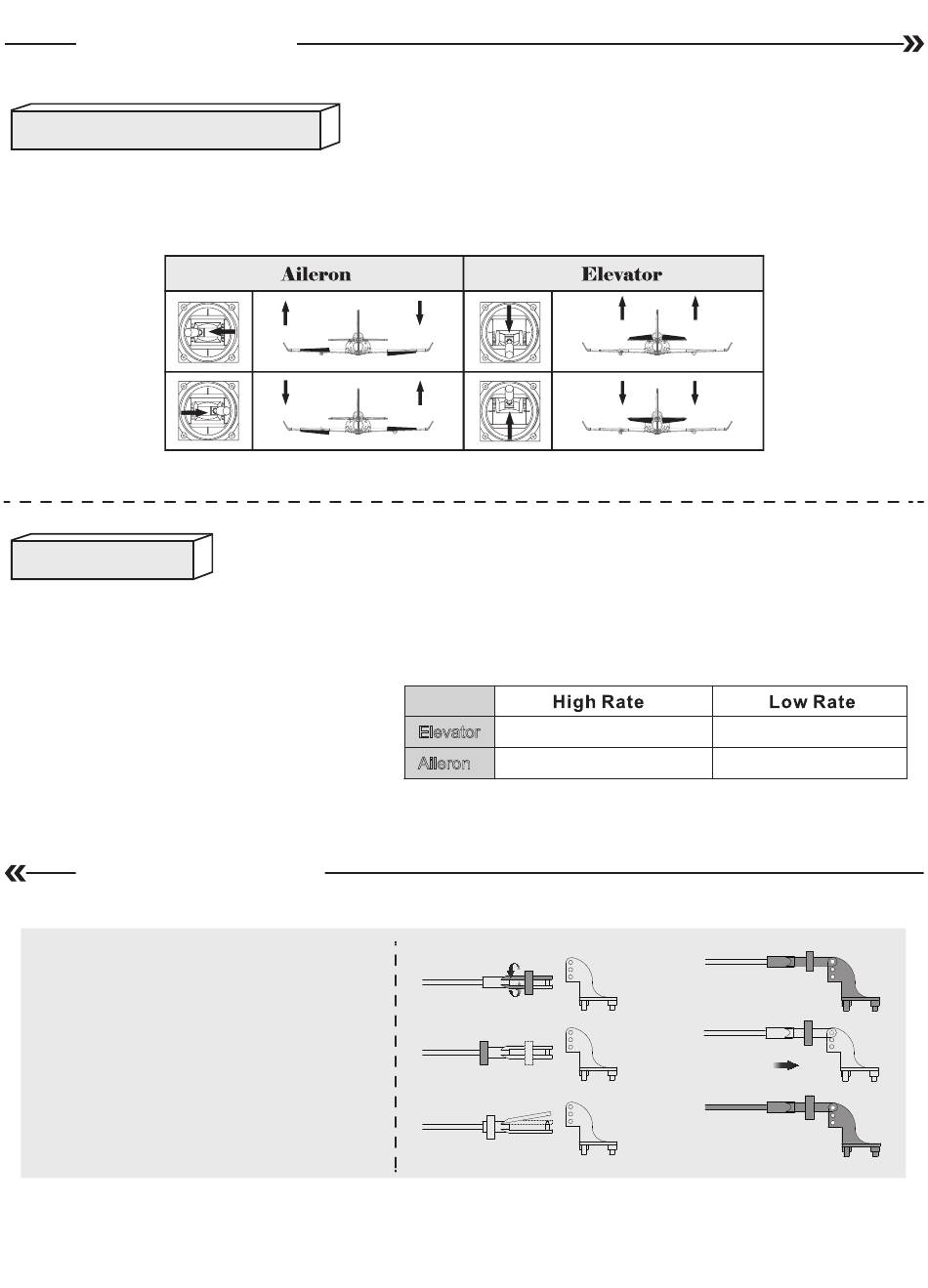

After assembly and prior to your first flight, make sure all control surfaces respond
correctly to your transmitter by referring to the diagram below.
Control throws
The suggested control throw setting for the 50mm Viper are as follows (dual rate setting):
Tips: The maiden flight should always be flown
using low rates, fly the aircraft until you are famil-
iar with its characteristics prior to trying high
rates. Make sure the aircraft is flying at a decent
altitude and speed prior to using high rates, as
the aircraft will be sensitive to control inputs with
the larger control surface movements.

Clevis installation

1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the
clevis pin into the desired hole in the control
horn.
3.Move the tube to hold the clevis on the
control horn.
Elevator 10mm up / down
10mm up / down
Aileron
a.
b.
c.
8mm up / down
8mm up / down
d.
e.
f.
