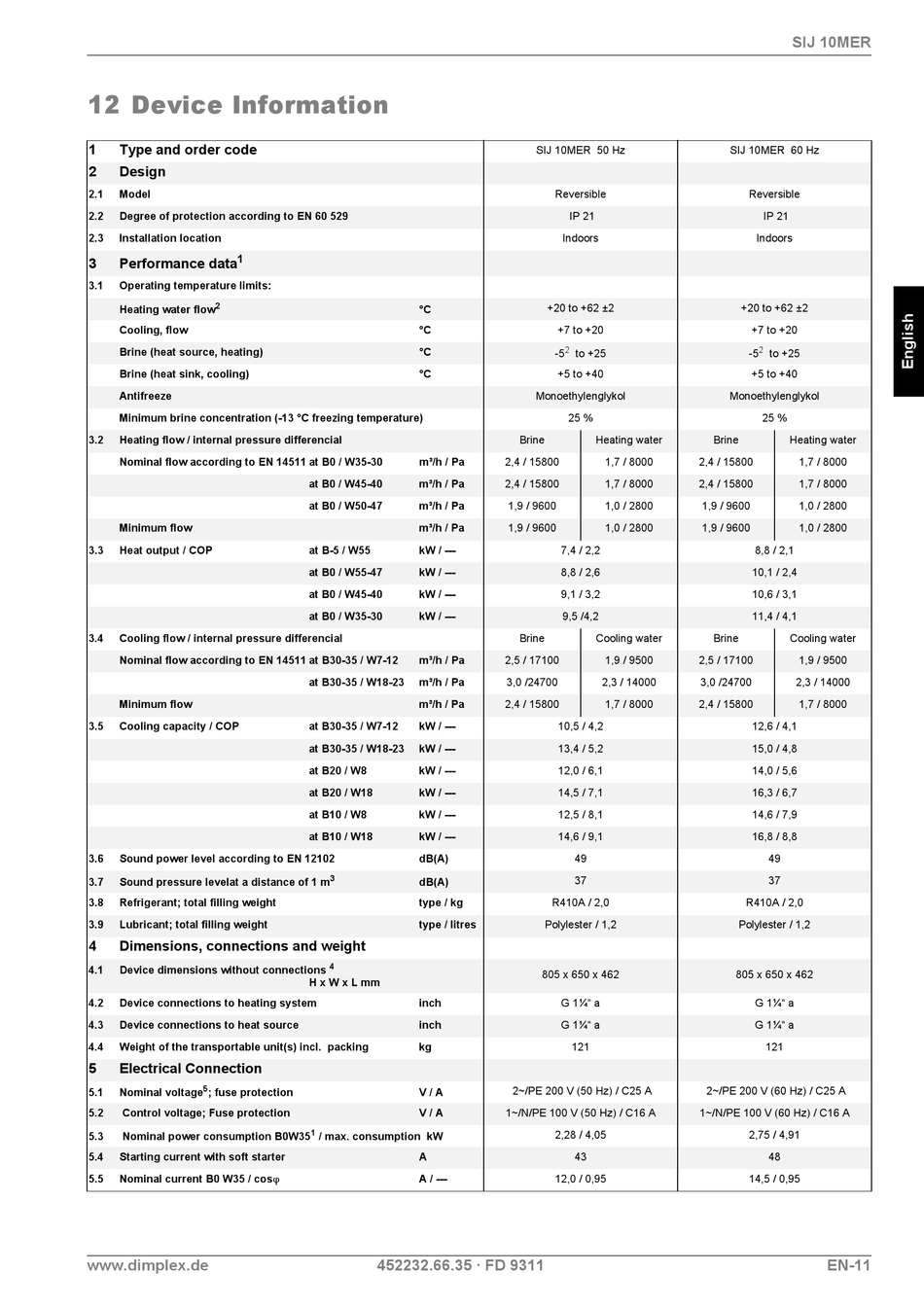

12 Device Information

1 Type and order code
2 Design
2.1 Model
2.2 Degree of protection according to EN 60 529
2.3 Installation location
1
3 Performance data
3.1 Operating temperature limits:
2
Heating water flow
Cooling, flow
Brine (heat source, heating)
Brine (heat sink, cooling)
Antifreeze
Minimum brine concentration (-13 °C freezing temperature)
3.2 Heating flow / internal pressure differencial
Nominal flow according to EN 14511 at B0 / W35-30
Minimum flow
3.3 Heat output / COP
3.4 Cooling flow / internal pressure differencial
Nominal flow according to EN 14511 at B30-35 / W7-12
Minimum flow
3.5 Cooling capacity / COP
3.6 Sound power level according to EN 12102
3.7 Sound pressure levelat a distance of 1 m
3.8 Refrigerant; total filling weight
3.9 Lubricant; total filling weight
4 Dimensions, connections and weight
4.1 Device dimensions without connections
4.2 Device connections to heating system
4.3 Device connections to heat source
4.4 Weight of the transportable unit(s) incl. packing
5 Electrical Connection
5
5.1 Nominal voltage ; fuse protection
5.2 Control voltage; Fuse protection
5.3 Nominal power consumption B0W35
5.4 Starting current with soft starter
5.5 Nominal current B0 W35 / cos
www.dimplex.de
°C
°C
°C
°C
m³/h / Pa
at B0 / W45-40 m³/h / Pa
at B0 / W50-47 m³/h / Pa
m³/h / Pa
at B-5 / W55 kW / ---
at B0 / W55-47 kW / ---
at B0 / W45-40 kW / ---
at B0 / W35-30 kW / ---
m³/h / Pa
at B30-35 / W18-23 m³/h / Pa
m³/h / Pa
at B30-35 / W7-12 kW / ---
at B30-35 / W18-23 kW / ---
at B20 / W8 kW / ---
at B20 / W18 kW / ---
at B10 / W8 kW / ---
at B10 / W18 kW / ---
dB(A)
3
dB(A)
type / kg
type / litres
4
H x W x L mm
inch
inch
kg
V / A
V / A
1
/ max. consumption kW
A
A / ---
452232.66.35 · FD 9311
SIJ 10MER 50 Hz
Reversible
IP 21
Indoors
+20 to +62 ±2
+7 to +20
2
-5 to +25
+5 to +40
Monoethylenglykol
25 %
Brine Heating water
2,4 / 15800 1,7 / 8000
2,4 / 15800 1,7 / 8000
1,9 / 9600 1,0 / 2800
1,9 / 9600 1,0 / 2800
7,4 / 2,2
8,8 / 2,6
9,1 / 3,2
9,5 /4,2
Brine Cooling water
2,5 / 17100 1,9 / 9500
3,0 /24700 2,3 / 14000
2,4 / 15800 1,7 / 8000
10,5 / 4,2
13,4 / 5,2
12,0 / 6,1
14,5 / 7,1
12,5 / 8,1
14,6 / 9,1
49
37
R410A / 2,0
Polylester / 1,2
805 x 650 x 462
G 1¼" a
G 1¼" a
121
2~/PE 200 V (50 Hz) / C25 A
1~/N/PE 100 V (50 Hz) / C16 A
2,28 / 4,05
43
12,0 / 0,95
SIJ 10MER
SIJ 10MER 60 Hz
Reversible
IP 21
Indoors
+20 to +62 ±2
+7 to +20
2
-5 to +25
+5 to +40
Monoethylenglykol
25 %
Brine Heating water
2,4 / 15800 1,7 / 8000
2,4 / 15800 1,7 / 8000
1,9 / 9600 1,0 / 2800
1,9 / 9600 1,0 / 2800
8,8 / 2,1
10,1 / 2,4
10,6 / 3,1
11,4 / 4,1
Brine Cooling water
2,5 / 17100 1,9 / 9500
3,0 /24700 2,3 / 14000
2,4 / 15800 1,7 / 8000
12,6 / 4,1
15,0 / 4,8
14,0 / 5,6
16,3 / 6,7
14,6 / 7,9
16,8 / 8,8
49
37
R410A / 2,0
Polylester / 1,2
805 x 650 x 462
G 1¼" a
G 1¼" a
121
2~/PE 200 V (60 Hz) / C25 A
1~/N/PE 100 V (60 Hz) / C16 A
2,75 / 4,91
48
14,5 / 0,95
